Mitsubishi Electric FX2N-1PG — PLCs (Programmable Logic Controllers)

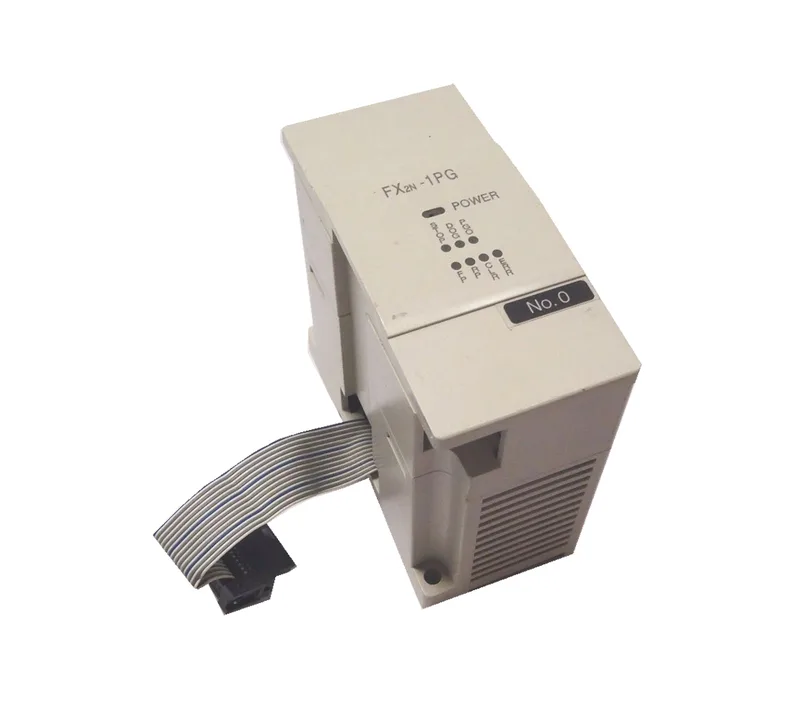

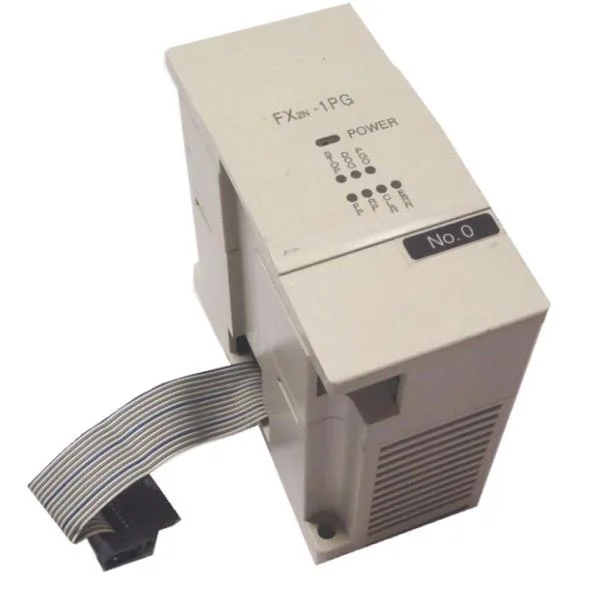

Mitsubishi FX2N-1PG Pulse Generator Unit, EOL Hot, 100 kHz

MPNFX2N-1PG
End of Life

Mitsubishi FX2N-1PG Pulse Generator Unit, single-axis positioning, 10 Hz to 100 kHz open collector output, EOL Hot.

$87.00 – $228.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

FX2N-1PG — Specifications
ParameterValue
Product typePulse Generator Unit
Command speedOperations are enabled at pulse speed of 10 Hz to 100 kHz, Command unit can be selected among Hz. cm/min, 10 deg/min and inch/min.
Pulse output formatForward (FP) and reverse (RP) pulse or pulse (PLS) with direction (DIR) can be selected. Open collector and transistor output. 5 to 24V DC, 20 mA or less
Number of control axes1 (A single PC can control independent 8 axes maximum.)
Dimensions (HxWxD), approx9 cm X 8.7 cm X 4.3 cm
Number of i (O points occupied)8 input or output points of PC for each PGU

Product details

The FX2N-1PG is a pulse generator unit for the Mitsubishi FX2N PLC series, engineered for single-axis positioning control. It delivers pulse output from 10 Hz to 100 kHz, selectable as forward/reverse (FP/RP) or pulse/direction (PLS/DIR) formats via an open collector transistor output rated at 5 to 24 VDC, 20 mA or less. Each unit occupies 8 input or output points on the base PLC, and up to 8 units can be controlled from one CPU for multi-axis systems.

Integration Notes

Mounts directly on the FX2N PLC backplane. Wiring the pulse output to a stepper or servo drive requires matching the open collector rating (5-24 VDC, 20 mA) and selecting the correct pulse format via the unit's programming. Command speed covers the majority of stepper applications up to 100 kHz; for higher frequencies a different positioning module would be needed.

Frequently asked questions

What replaces FX2N-1PG?

No official replacement or successor is listed in the available documentation. You may need to consult Mitsubishi for current positioning module alternatives that fit the FX2N platform.

How do I source this part?

Submit an RFQ for current availability and lead time. The estimated lead time is 1-10 working days, but as an EOL item, allocation is limited and should be confirmed before committing the BOM line.

What are the key electrical specifications of the pulse output?

Open collector transistor output, 5 to 24 VDC, 20 mA or less. Pulse speed range from 10 Hz to 100 kHz. Output format selectable as forward/reverse or pulse/direction.

MPN
FX2N-1PG
