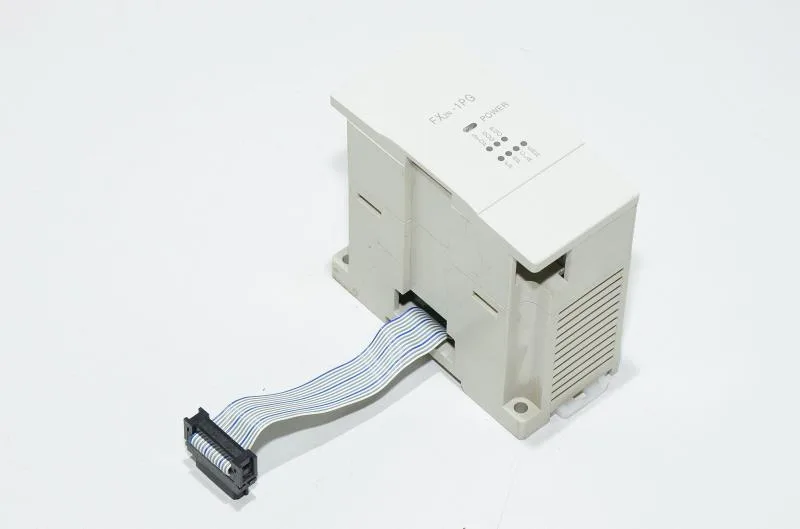

Mitsubishi FX2N-1PG-E, single-axis pulse generator unit for FX2N/FX3U series, 100 kHz max output, open-collector, end-of-life
Mitsubishi FX2N-1PG-E Pulse Generator Unit, EOL Sourced to O
MPNFX2N-1PG-E
End of Life
Mitsubishi FX2N-1PG-E, single-axis pulse generator unit for FX2N/FX3U series, 100 kHz max output, open-collector, end-of-life
$87.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Withstand voltage | Between external terminals and ground terminal of PLC main unit: AC 500 V for 1 minute |
| Power-supply voltage | DC 5 V 55 mA ( internal power supply from the sequencer) DC 24 V ± 10% 40 mA (external power supply) |
| Input signal voltage STOP, DOG | DC 24V |
| Rated load voltage pulse output unit (FP (RP)) | DC 5 V to 24 V (power supplied from the VIN terminal) |
| Input signal current STOP, DOG | 7 mA |
| Maximum load current pulse output unit (FP (RP)) | 20 mA or less |
| VIN consumption current pulse output unit (FP (RP)) | 35 mA or less |
| Absolute position detection (ABS current value reading) | Use sequencer's ABS command |
| Frequency | 57 to 150 Hz : Acceleration: 9.8 m / s 2 10 times in X, Y, Z directions (80 minutes in total) |
| Output frequency | 100 kHz |
| Maximum frequency | 100 kHz |
| Direct installation frequency | 10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) |
All specifications+33 ▾
| Parameter | Value |
|---|---|
| Anti-vibration when DIN rail is installed frequency | 10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) |
| Operating temperature | 0 to 55 ° C. ... Operating, -25 to 75 ° C. ..... Save |
| Relative humidity | 5 to 95% RH (noncondensing).... in operation |
| Shipping weight | 1.5 Kg |
| Mass | 0.3 Kg |
| PG 0 | 4 μs |
| STOP | 4 ms |
| Control unit | pulse, μm, 10 -4 inch, mdeg |
| Control input | Three points (STOP, DOG, PG 0) |
| Output method | Open collector transistor output |
| Position data | 1 point (set by sequence program) |
| Noise immunity | Noise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si tor with period of 30 to 100 Hz |
| Use atmosphere | There is no corrosive property, flammable gas, conductive dust (dust) is not serious | Use altitude : Can not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down. |
| Impact resistance | 147 m / s 2 , working time 11 ms, three times in X, Y, Z directions with a sine half-wave pulse |
| Pulse output form | Pulse train + direction, forward rotation / reverse rotation pulse train |
| Circuit insulation | Photocoupler insulation |
| Clear signal | 20 mA or less |
| Estimated lead time | 1 - 10 Working Days |
| Input signal format | Contact or open collector transistor |
| Pulse output method | Open collector method |
| Programming language | BFM can be specified directly by sequence program (FROM / TO instruction, application instruction operand) |
| Application sequencer | FX2N, FX3U, FX2NC, FX3UCFX2NC - CNV - IF is required for connection to FX2NC. To connect to FX3UC, FX2NC - CNV - IF or FX3UC - 1PS - 5V is required. |
| Insulation resistance | Between the external terminals collectively and the ground terminal of the programmable controller main body: 500 MV DC insulation resistance meter 5 MΩ or more |
| Number of control axes | Independent single axis |
| Input capture speed DOG | 1 ms |
| Input operation display | LED ON when input is ON |
| Number of output points | 3 points (FP, RP, CLR) |
| Output operation indication | LED on when output is ON |
| Input ON sensitivity STOP, DOG | 4.5 mA or more |
| Input OFF sensitivity STOP, DOG | 1.5 mA or less |
| Number of occupied i (O points) | Sequencer input / output 8 points occupation (It can count either input or output) |
| Acceleration (deceleration processing) | Automatic trapezoidal acceleration / deceleration |
| Output form pulse output unit (FP (RP)) | You can select forward rotation (FP) / reverse rotation (RP) or pulse (PLS) / direction (DIR). |
Product details
MPN
FX2N-1PG-E
