Mitsubishi Electric FX2N-32MR-001

Mitsubishi FX2N-32MR-001 PLC, 16 I/O Relay

MPN FX2N-32MR-001
End of Life

Mitsubishi FX2N Series Programmable Controller, FX2N-32MR-001, 16 inputs, 16 relay outputs, 100-240V AC supply.

$286.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FX2N-32MR-001 specifications
ParameterValue
Product typeFx2n Series Programmable Controllers

Product details

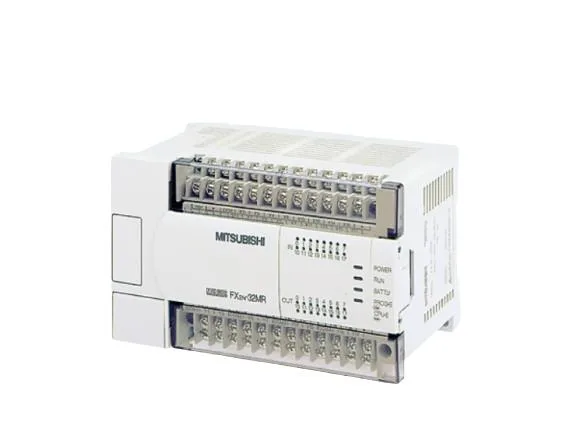

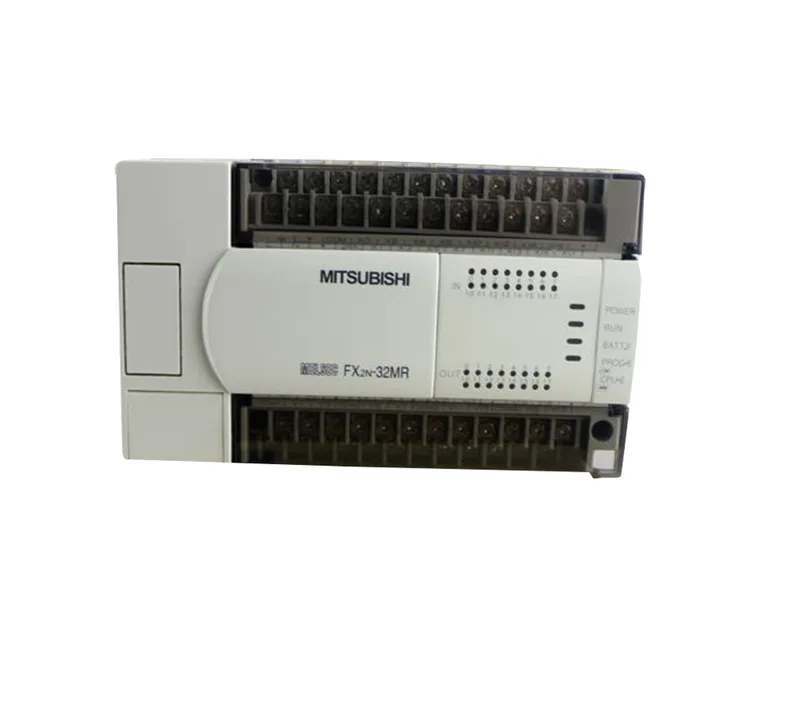

The FX2N-32MR-001 is a Mitsubishi FX2N series base unit programmable controller with 16 digital inputs and 16 relay outputs, powered by 100-240V AC. It sits at the core of a small-to-medium machine control system, handling 32 I/O points in a compact footprint.

How it compares to common peers

The FX2N-48ER-DS is not a base unit but an extension unit (48 I/O), and the FX2N-80MR-DS runs on 24V DC — neither is a drop-in replacement for the 32MR-001 in power supply, I/O count, or physical dimensions. If your panel was built for a base unit with relay outputs and AC supply, the 32MR-001 remains the intended fit.

Rated for 100-240V AC supply, the unit draws 40 VA maximum. The 16 relay outputs handle resistive loads up to the standard FX2N rating (2A per point, 8A common). Use a dedicated 24V DC sensor supply for inputs; the base unit does not provide loop power. I/O wiring follows the screw-terminal layout in the OEM manual.

MPN
FX2N-32MR-001
