Overview

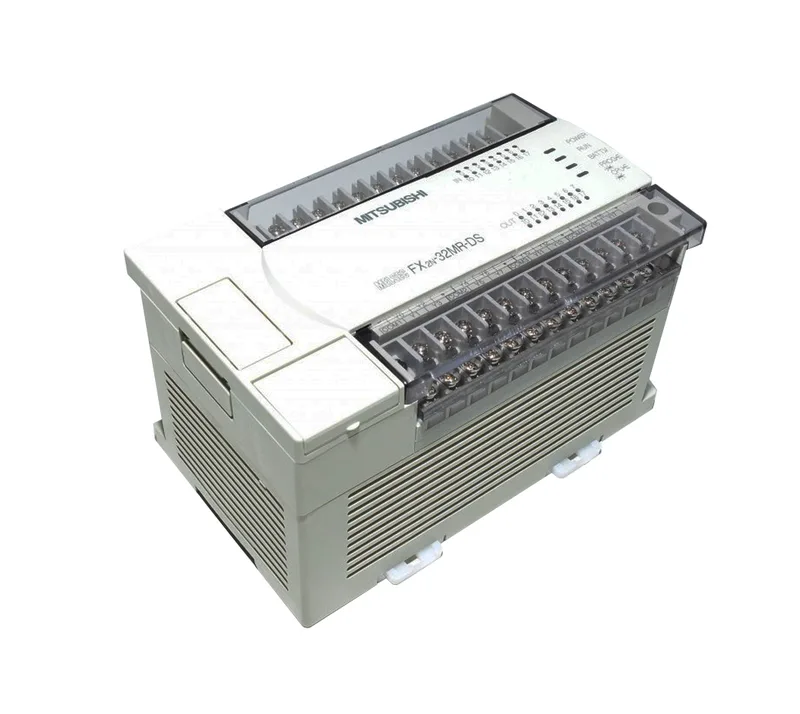

The FX2N-32MR-DS is a Mitsubishi FX2N Series PLC base unit with 16 integrated inputs and 16 relay outputs, giving 32 I/O points in a single chassis. It runs on a 24V DC supply with a tolerance of +20%/-30% and draws 25W. Relay outputs (MR-DS) handle both AC and DC loads up to the contact rating, making this unit suitable for mixed-load panels without external interfacing.
Compared to the FX2N-16MR-DS, the FX2N-32MR-DS doubles the I/O count: 16 inputs and 16 outputs versus 8 each, and power consumption rises from 20 W to 25 W. The supply tolerance is also tighter on the 32-point unit (+20%/-30% vs Sink/Source). Choose the FX2N-32MR-DS when the design requires 16 inputs and 16 outputs in a single base unit.
