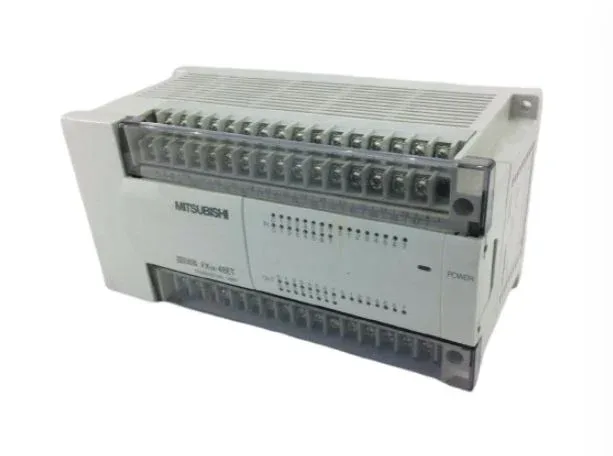

Mitsubishi FX2N-48ET PLC I/O, 24/24 Transistor Sink, Obsolet

Name: FX2N-48ET
Brand: Mitsubishi Electric
SKU: FX2N-48ET
Availability: LimitedAvailability
Author: Obsolete Olga

Specifications

FX2N-48ET key specifications
Parameter	Value
Output type (format)	Transistor / sink output
ON voltage	1.5V or less
Voltage	AC 100 V to 240 V
Withstand voltage	Between the power supply terminal (AC power supply) and the earth terminal: AC 1500 V for 1 minute 24 VDC Service power supply and between the input terminal (24 VDC) and the earth terminal: 500 VAC for 1 minute Between the output terminal (transistor)
Input signal voltage	DC 24 V ± 10%
Voltage tolerance range	AC 85V ~ 264V
Inrush current	AC 100 V: maximum 40 A 5 ms or less AC 200 V: maximum 60 A 5 ms or less
Input signal current	5 mA / 24 VDC
Input ON sensitivity current	3.5 mA or more
Open-circuit leakage current	0.1 mA or less / DC 30 V
Input OFF sensitivity current	1.5 mA or less
Power consumption	35W

All specifications+35 ▾

FX2N-48ET additional specifications
Parameter	Value
Power supply fuse	250 V 5 A
External power supply	DC 5V to 30V
24 VDC service power supply	24 VDC 460 mA or less When connecting input / output extension block, 24 VDC service power is consumed.
Frequency	57 to 150 Hz : Acceleration: 9.8 m / s 2 X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Rated frequency	50/60 Hz
Direct installation frequency	10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Anti-vibration when DIN rail is installed frequency	10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Input connection shape	Removable terminal block (M3 screw)
Output connection shape	Removable terminal block (M3 screw)
Input response time	About 10 ms
Response time OFF → ON	0.2 ms or less / 200 mA (24 VDC)
Operating temperature	0 to 55 ° C. ... Operating -25 to 75 ° C. ..... Save
Use altitude	Can not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down.
Relative humidity	5 to 95% RH (noncondensing).... in operation
Shipping weight	1.9 Kg
Mass	0.85 Kg
Ground	Class D grounding (grounding resistance: 100 Ω or less)Grounding should be dedicated ground or common ground.
ON → OFF	0.2 ms or less / 200 mA (24 VDC)
Input format	sink
Inductive load	12 W / DC 24 V
Noise immunity	Noise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si
Use atmosphere	There is no corrosive property, flammable gas, conductive dust (dust) is not serious
Input impedance	4.3 kΩ
Impact resistance	147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2
Circuit insulation	Photocoupler insulation
Estimated lead time	Usually ships in 1 - 10 working days.
Input signal format	No-voltage contact input or NPN open collector transistor
Application sequencer	FX1N, FX3G, FX2N, FX3U
Insulation resistance	Between each terminal and earth terminal: 500 MV DC 500 MΩ or more with an insulation resistance meter
Number of input points	24 points
Input operation display	LED on the panel when input is ON
Number of output points	24 points
Input circuit insulation	Photocoupler insulation
Maximum load resistive load	The total load current per 0.5 A / point common should be as follows. . Output 4 points / common: 0.8 A or less . Output 8 points / common: 1.6 A or less
Output operation indication	LED on the panel when driving the photo coupler

Product details

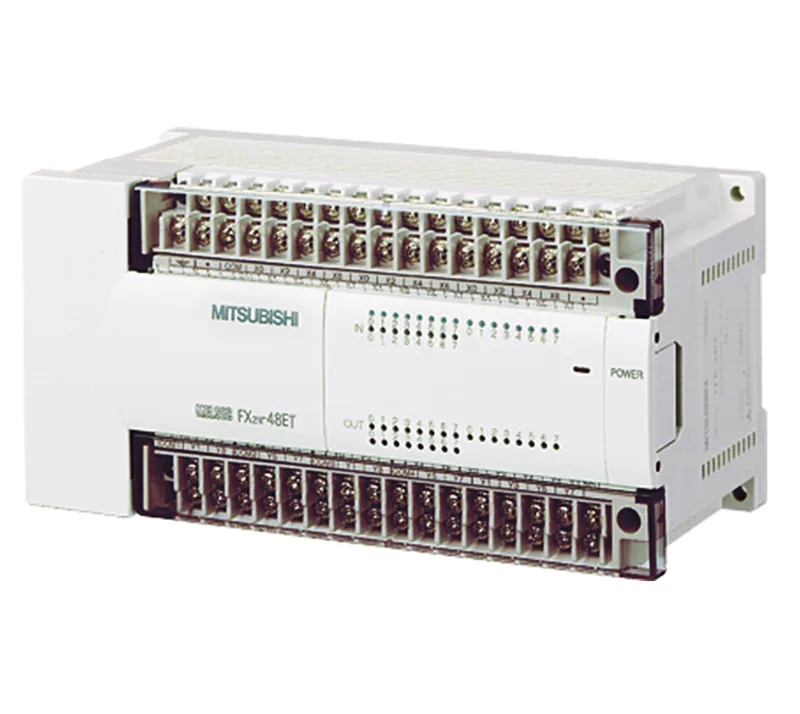

Mitsubishi FX2N-48ET: 24 sink inputs and 24 transistor sink outputs on removable M3 screw terminal blocks. Requires Class D grounding (100 Ω or less) and AC 100–240 V, 50/60 Hz, 35 W supply.

Wiring & Grounding Notes

Input wiring: NPN open collector or no-voltage contact, 24 VDC ±10%, 5 mA per point, response time ~10 ms. Output wiring: transistor (sink), rated 200 mA per channel, ON→OFF and OFF→ON both ≤0.2 ms at 200 mA, 24 VDC. Use the removable terminal block (M3 screw) for panel-side harnesses. Ground the module via a dedicated Class D circuit (≤100 Ω); shared grounding may inject noise from power equipment. The supply side requires a 5 A 250 V fuse on the AC line. Ambient temperature must stay within 0–55 °C operating, with non-condensing humidity 5–95%.

Frequently asked questions

What grounding is required for the FX2N-48ET?

Class D grounding with a resistance of 100 Ω or less; dedicated or common ground is acceptable.

Will the FX2N-48ET drop into a panel wired for the FX2N-32ER-ES/UL?

No. The FX2N-48ET uses transistor sink outputs (24 points) instead of relay outputs, and has a different I/O count (24 inputs/24 outputs vs 16/16). Wiring must change at the terminal block.
