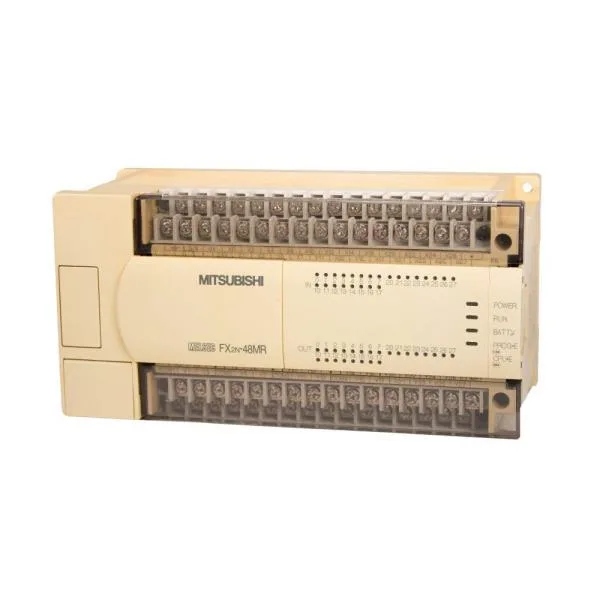

Mitsubishi FX2N-48MR-001 Fx2n Series Programmable Controller, 24 inputs 24 relay outputs, 100-240VAC.
| Parameter | Value |
|---|---|
| Power supply | 100-240V AC |
| Product type | Fx2n Series Programmable Controllers |
| No. of inputs | 24 |
| No. of outputs | 24 |
| Type of output | Relay |
| Power consumption | 50VA |
| Max. number input (output) | 48 |
The Mitsubishi FX2N-48MR-001 is a 48-point relay-output PLC from the FX2N series, with 24 inputs and 24 relay outputs. It runs on 100-240V AC and draws 50VA. This is the relay version — no transistor output, so not for high-speed solenoid switching.
It runs on 100-240V AC directly. No external power supply needed for the main unit.
No. The FX2N-80MR-ES/UL has 40 inputs and 40 outputs, a larger frame, and different terminal assignments. Replacing would require rewiring the I/O field and potentially modifying the program and panel layout.
