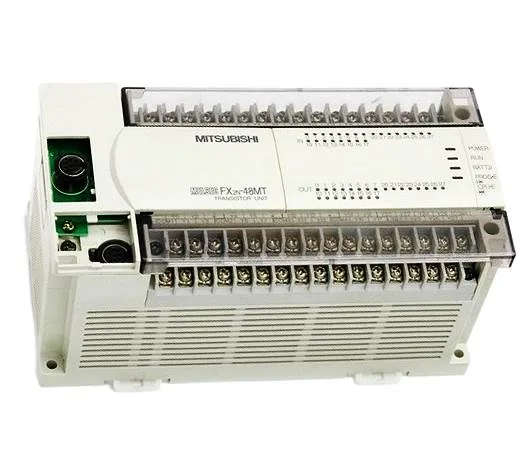

Mitsubishi FX2N-48MT-001, FX2N Series MPU main unit, 48 I/O channels, transistor outputs. End-of-life (EOL) – last-time-buy sourcing via surplus channel.
| Parameter | Value |
|---|---|
| Unit type | MPU - main unit |
| Output signal | Transistor |
| Product type | Fx2n Series Programmable Controllers |
| Total number of i (O channels) | 48 |
The FX2N-48MT-001 uses transistor outputs; its sibling FX2N-48MR-ES/UL uses relay outputs. Transistor switching is faster (under 1 ms) and rated for higher cycle life, ideal for frequent on/off or PWM loads. Relay outputs handle higher AC inrush currents but wear mechanically over time.
Not without modifications. The MR-ES/UL uses relay outputs and includes a built-in 100–240 VAC power supply. The MT requires an external 24 VDC supply and uses transistor outputs. I/O count and form factor are similar, but power and load wiring must be adapted.
It is an MPU – main unit, the primary CPU module of the FX2N system.
Alternative models and sibling configurations in the same Mitsubishi Electric series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
