The Mitsubishi FX2N-4DA is an analog output module for the FX2N PLC series, delivering four channels of ±10V DC or 0-20mA DC analog outputs with a resolution of 5mV (11-bit plus sign). It occupies 8 I/O points on the backplane. Power is drawn from the main unit: 5 VDC/30 mA and an external 24 VDC/200 mA supply.

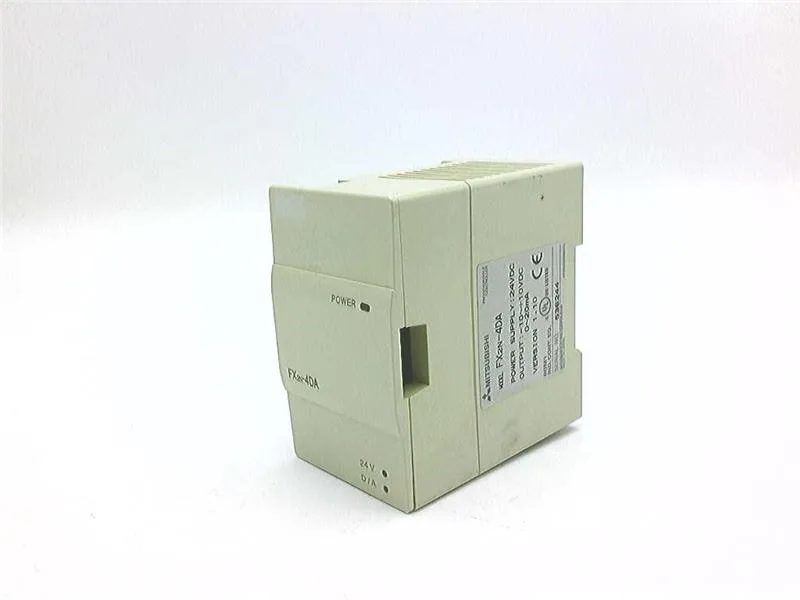

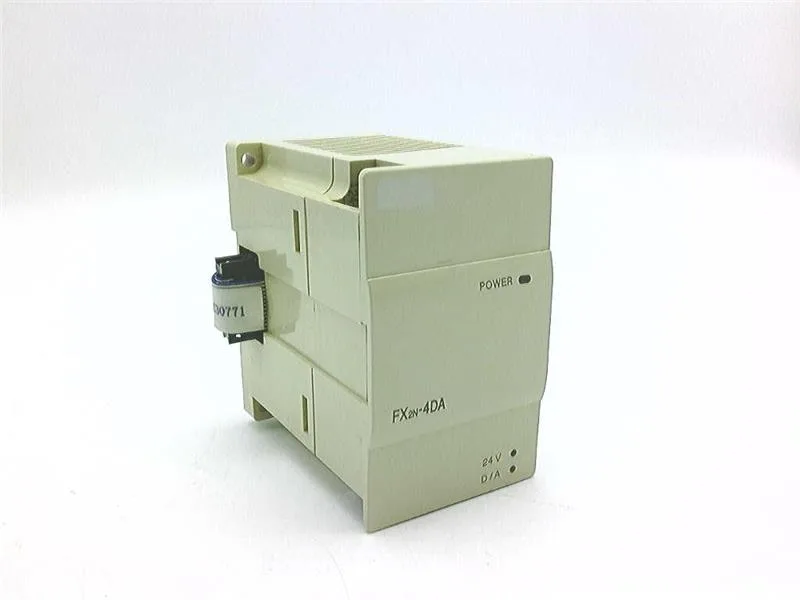

Mitsubishi FX2N-4DA Analog Output Module, 4 Channels, EOL
MPNFX2N-4DA
End of Life
Mitsubishi FX2N-4DA Analog Output Module, 4 analog output channels, ±10V DC / 0-20mA, 5mV resolution, end-of-life.
$103.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Power supply | 5 VDC/30 mA (from main unit); 24 VDC/200 mA |
| Product type | Analog Output Modules |
| Analog channels | 4 outputs |
| Analog input range | -10 to 10 VDC / 0 to 20mA DC / 4 to 20 mA DC |
| Related i (O points) | 8 |
| Resolution (voltage) | 5mV (11 bit + sign) |
Product details
Frequently asked questions
What power supply does the FX2N-4DA require?
It draws 5 VDC/30 mA from the main unit and requires an external 24 VDC/200 mA supply.
MPN
FX2N-4DA
