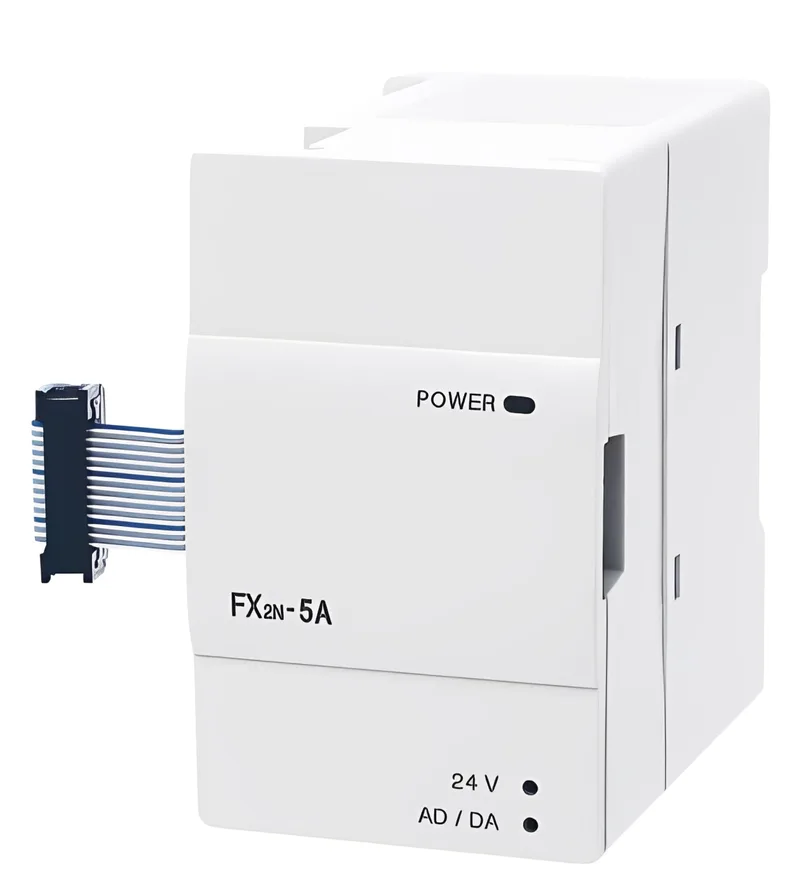

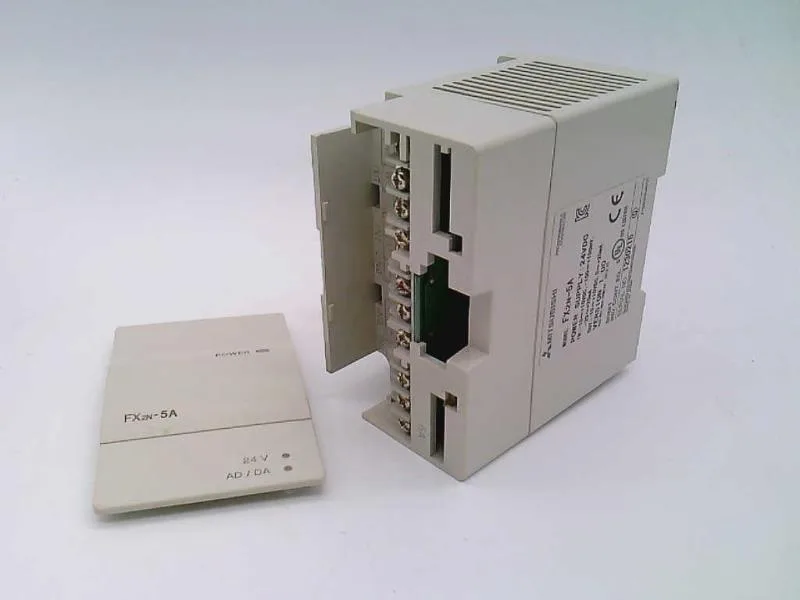

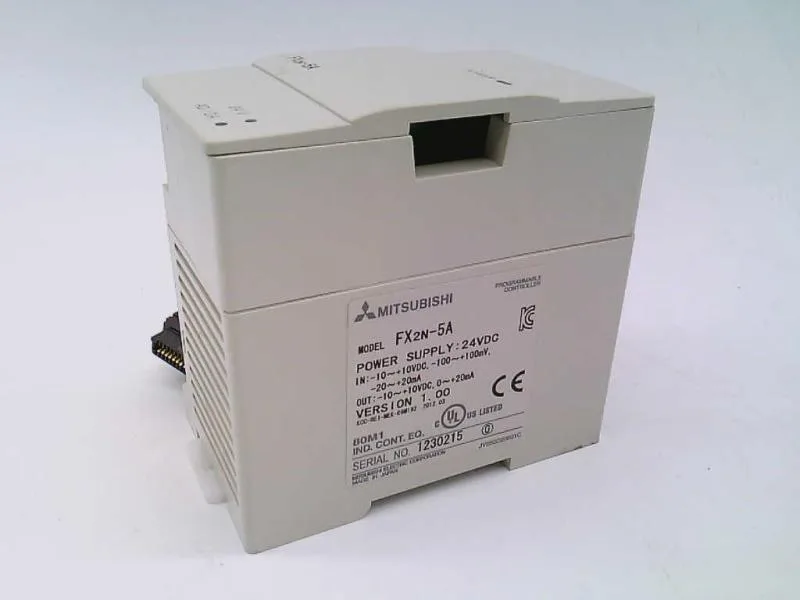

Mitsubishi MELSEC-F series, Type FX2N, FX2N-5A Analog I/O Module, 4 analog inputs, 1 analog output, 24 VDC, end-of-life status.
| Parameter | Value |
|---|---|
| Series | MELSEC-F SERIES |
| Parameter | Value |
|---|---|
| Weight | 0,3 kg |
| Parameter | Value |
|---|---|
| Type | FX2N |
| Current type | DC |
| Power supply | 24 |
| Input voltage range | -10-10; -0,1-0,1 |
| Input current range | -20-20; 4-20 |
| Output voltage range | -10-10 |
| Output current range | 0-20; 4-20 |
| Integrated analogue inputs | 4 |
| Occupied i (O points on PLC) | 8 |
| Integrated analogue outputs | 1 |
| Max. ambient temperature (°C) | 55 |
| Min. ambient temperature (°C) | 0 |
The FX2N-5A is an analog expansion module for Mitsubishi's MELSEC-F series PLCs. It occupies 8 I/O points on the PLC and provides four analog inputs plus one analog output. Inputs accept -10 to +10 V or -20 to +20 mA (with a 4-20 mA sub-range). The single output delivers -10 to +10 V or 0-20 mA (including 4-20 mA). Power is 24 V DC.
No, those are not functional or mechanical replacements. The FX3S series are PLC CPUs with built-in I/O, and the NZ2GF series are remote I/O modules — neither fits the FX2N expansion bus or the mounting footprint.
The inputs accept -10 to +10 V or -20 to +20 mA (with a 4-20 mA sub-range). The output delivers -10 to +10 V or 0-20 mA (with a 4-20 mA sub-range).
It occupies 8 I/O points on the FX2N base unit.
