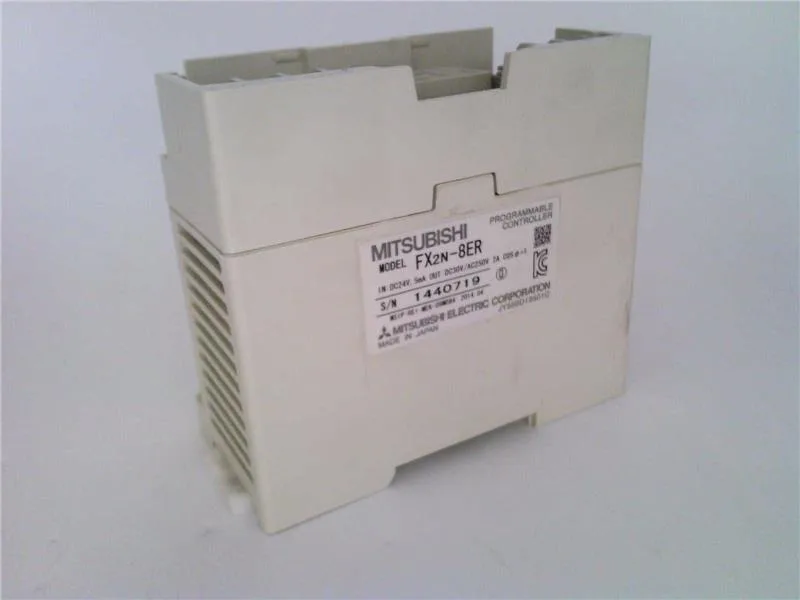

Mitsubishi FX2N-8ER expansion I/O module, 4 DC sink inputs (24 VDC, 4.3 kΩ) and 4 relay outputs (2 A per point), 0.2 kg, end-of-life.
| Parameter | Value |
|---|---|
| Output type (format) | relay |
| Voltage | Internal power supply from the sequencer |
| Withstand voltage | Between the input terminal (24 VDC) and the earth terminal: 500 V AC for 1 min Between the output terminal (relay) and the earth terminal: AC 1500 V 1 min |
| Input signal voltage | DC 24 V ± 10% |
| Input signal current | 5 mA / 24 VDC |
| Input ON sensitivity current | 3.5 mA or more |
| Input OFF sensitivity current | 1.5 mA or less |
| External power supply | DC 30 V or less AC 240 V or less |
| Frequency | 57 to 150 Hz : Acceleration: 9.8 m / s 2 X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2 |
| Direct installation frequency | 10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2 |
| Anti-vibration when DIN rail is installed frequency | 10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2 |
| Input connection shape | Vertical terminal block (M3 screw) |
| Parameter | Value |
|---|---|
| Output connection shape | Vertical terminal block (M3 screw) |
| Input response time | About 10 ms |
| Response time OFF → ON | About 10 ms |
| Operating temperature | 0 to 55 ° C. ... Operating -25 to 75 ° C. ..... Save |
| Use altitude | Can not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down. |
| Relative humidity | 5 to 95% RH (noncondensing).... in operation |
| Shipping weight | 1.2 Kg |
| Mass | 0.2 Kg |
| ON → OFF | About 10 ms |
| Input format | sink |
| Minimum load | DC 5 V 2 mA (reference value) |
| Inductive load | 80VA |
| Noise immunity | Noise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si |
| Use atmosphere | There is no corrosive property, flammable gas, conductive dust (dust) is not serious |
| Input impedance | 4.3 kΩ |
| Impact resistance | 147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2 |
| Circuit insulation | Mechanical insulation |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Input signal format | No-voltage contact input NPN or open collector transistor |
| Application sequencer | FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UCFX2NC - CNV - IF is required for connection to FX1NC and FX2NC. To connect to FX3GC, FX3UC, FX2NC - CNV - IF or FX3UC - 1PS - 5V is required. |
| Insulation resistance | Between each terminal and earth terminal: 500 MV DC 500 MΩ or more with an insulation resistance meter |
| Number of input points | 4 points |
| Input operation display | LED on the panel when input is ON |
| Number of output points | 4 points |
| Input circuit insulation | Photocoupler insulation |
| Maximum load resistive load | Total load current of 2A / 1 point common per resistance load should be as follows. Output 4 points / common: 8 A or less |
| Output operation indication | When the relay coil is energized LED on the panel is lit |
4 DC inputs on the FX2N-8ER expect a sink (NPN) signal at 24 VDC, with 4.3 kΩ impedance drawing 5 mA per point. Relay outputs handle 2 A resistive per point, 8 A per four-point common. Response time is about 10 ms ON-to-OFF. Powered from the PLC backplane; no external supply needed.
Ambient operating temperature 0 to 55 °C, storage -25 to 75 °C. Rated vibration per IEC 61131-2: 0.075 mm amplitude at 10-57 Hz, 9.8 m/s² at 57-150 Hz. Use altitude limited to 2000 m or less.
4 DC sink inputs at 24 VDC, 4.3 kΩ impedance, 5 mA per point. 4 relay outputs rated 2 A resistive per point, 8 A per common. Response time approximately 10 ms. Mass 0.2 kg.
