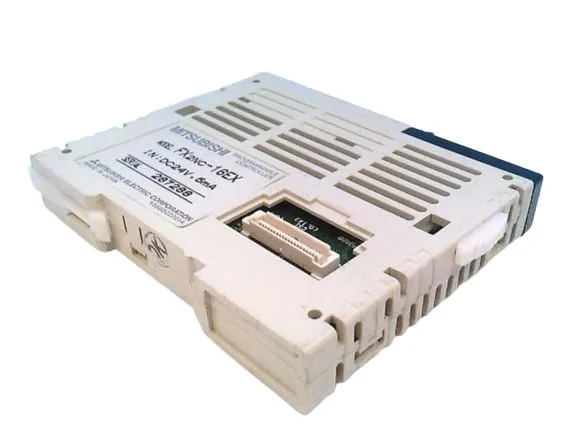

FX2NC-16EX - Mitsubishi Electric
MPNFX2NC-16EX
End of Life
Input extension block
$134.00 – $253.24Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage | Internal power supply from the sequencer |
| Withstand voltage | Between the input terminal of the expansion input block and the ground terminal: 500 V AC for 1 minute |
| Input signal voltage | DC 24 V + 20% - 15% ripple (pp) within 5% |
| Input signal current | 5 mA / 24 VDC |
| Input ON sensitivity current | 3.5 mA or more |
| Input OFF sensitivity current | 1.5 mA or less |
| Power consumption | 2.2 W |
| Frequency | 57 to 150 Hz : Acceleration: 4.9 m / s 2 Ten times in each of X, Y, Z directions (80 minutes in total in total) The criterion is based on IEC 61131-2 |
| Anti-vibration when DIN rail is installed frequency | 10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2 |
| Input connection shape | connector |
| Input response time | About 10 ms |
| Operating temperature | 0 to 55 ° C. ... Operating -20 to 70 ° C. ... Save |
All specifications
| Parameter | Value |
|---|---|
| Use altitude | Can not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down. |
| Relative humidity | 35 to 85% RH (noncondensing).... in operation |
| Shipping weight | 1.2 Kg |
| Mass | 0.15 Kg |
| Input format | sink |
| Manufacturer | Mitsubishi Electric |
| Noise immunity | Noise voltage with 1,000 Vp-p, noise width 1 µs, rising 1 ns, with noise si |
| Use atmosphere | There is no corrosive property, flammable gas, conductive dust (dust) is not serious |
| Input impedance | 4.3 kO |
| Impact resistance | 147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2 |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Input signal format | No-voltage contact input or NPN open collector transistor |
| Application sequencer | FX1NC, FX3GC, FX2NC, FX3UC |
| Insulation resistance | Between the input terminal of the expansion input block and the earth terminal: 500 VDC or more 5 MO or more with the insulation resistance meter |
| Number of input points | 16 points |
| Input operation display | LED ON when input is ON |
| Input circuit insulation | Photocoupler insulation |
MPN
FX2NC-16EX
