Mitsubishi Electric FX2NC-32EYT — PLCs (Programmable Logic Controllers)

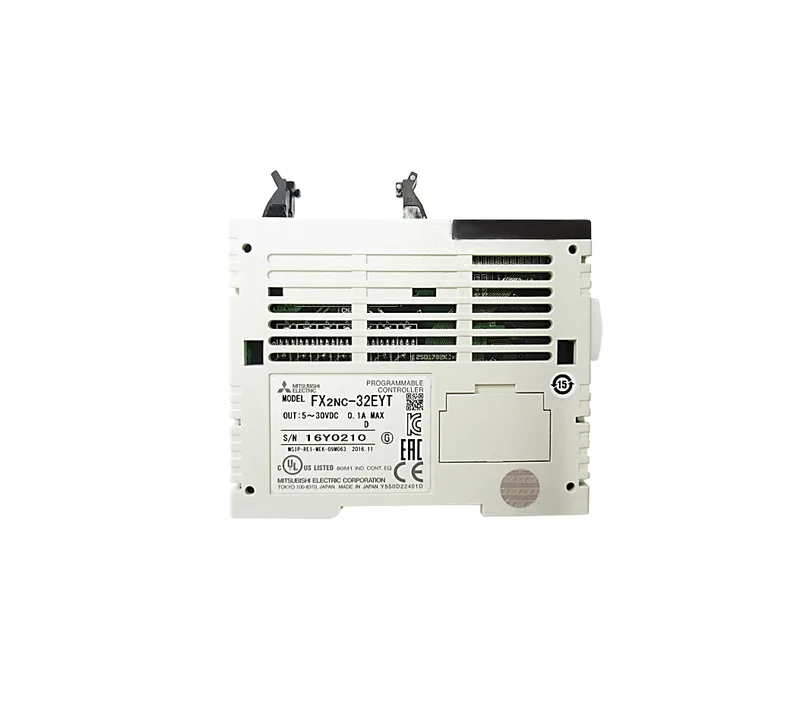

Mitsubishi FX2NC-32EYT, 32 Transistor Outputs, Ribbon Cable

MPNFX2NC-32EYT
End of Life

Mitsubishi FX2NC-32EYT PLC extension block, 32 transistor-sourced outputs, ribbon cable connector, 0.7W.

$278.00 – $578.52Ref. price · indicative, final on quote
Mitsubishi Electric FX2NC-32EYT datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX2NC-32EYT — Specifications
ParameterValue
PLC type2 = FX2NC
Unit typeEY = Extension block, output
Output signalTransistor(source)
Product typeConnection Type Ribbon Cable Connector
Connection typeRibbon cable connector
Power consumption0.7W
Dimensions (WxHxD)2.62 x 9 x 8.7
Integrated outputs32 points
Current consumption100 mA
Number of blocks connected2 blocks
Total number of i (O channels)32

Product details

This is a Mitsubishi FX2NC-32EYT — an output-only extension block for the FX2NC series, packing 32 transistor-sourced (source) channels on a ribbon cable connector. At 0.7 W power consumption and 100 mA current draw from the backplane, it's a low-power slice meant for high-speed DC switching, not relay loads.

Integration brief

Connection is via the ribbon cable connector native to the FX2NC base unit. Supports up to 2 blocks connected, so plan the expansion slot order. The 32 channels occupy 32 I/O points on the PLC. Physical dimensions are 2.62 x 9 x 8.7 inches — verify panel cutout against the base unit clamping.

Frequently asked questions

What is the PLC type for the FX2NC-32EYT?

PLC type is 2 = FX2NC series.

What is the unit type of the FX2NC-32EYT?

Unit type is EY = Extension block, output.

What output type does the FX2NC-32EYT have?

Transistor (source).

MPN
FX2NC-32EYT
