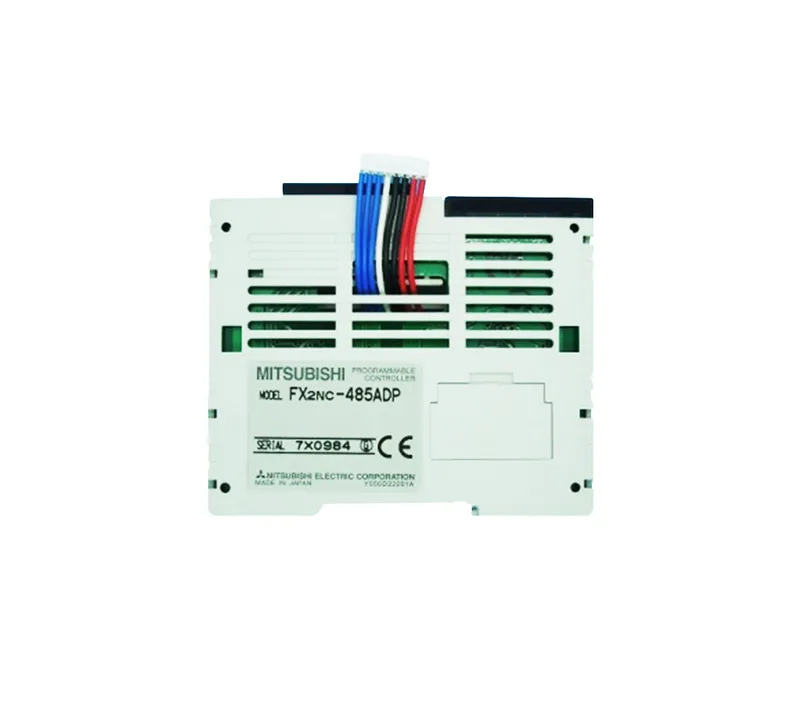

Mitsubishi FX2NC-485ADP, Special Adapter RS485 for FX2NC Series PLCs, Interface RS485, 5 V DC / 150 mA, 500 m range.
| Parameter | Value |
|---|---|
| Interface | RS485 |
| Power supply | 5 V DC = Max. 150 mA |
| Product type | Special Adapter RS485 |
| Dimension WxHxD | 1.91 x 9 x 7.8 |
| Related i (O points) | 0 |
| Communication speed | 0.3-19.2 |
| Max. communication distance | 500m |
The FX2NC-485ADP is a dedicated RS485 adapter for Mitsubishi FX2NC series PLCs. It plugs into the expansion connector to add one RS485 port, drawing up to 150 mA from the 5 V DC backplane rail. Baud rate is field-selectable between 0.3 and 19.2 kbps, and the interface supports point-to-point or multi-drop links up to 500 m total cable distance.
It provides one RS485 port, baud rate settable from 0.3 to 19.2 kbps, with a maximum cable length of 500 m.
5 V DC, maximum 150 mA from the expansion bus.
