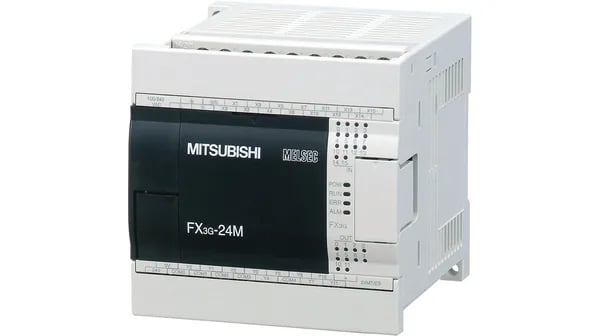

FX3G-24MR/DS - Mitsubishi Electric
MPNFX3G-24MR/DS
Compact PLC 14DI 6HS 13DO 24VDC USB 32000 Steps
$205.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FX3G Series |
| Mounting | DIN Rail Mount |
| Termination type | Screw Terminal |
| Digital input type | 24 VDC (Sink / Source) |
| Digital output type | Relay |
| Communication interface type | USB |
| Operating voltage max. | 24 VDC |
| Load current | 2 A |
| Scan time | 10 ms |
| Expandability | Yes |
| Digital inputs | 14 |
| Real-Time clock | Yes |
All specifications
| Parameter | Value |
|---|---|
| Program capacity | 32000 Steps |
| Input (Output max.) | 24 I/O Points |
| IP rating | IP10 |
| Number of relay outputs | 10 |
| Number of impulse outputs | 3 |
| Programming language used | Instruction List;Step Ladder;Structural Functional Block |
| Number of high speed counters | 6 |
MPN
FX3G-24MR/DS
