Mitsubishi Electric FX3G-24MT/ES-A — PLCs (Programmable Logic Controllers)

Mitsubishi FX3G-24MT/ES-A PLC, 14/10 I/O

MPNFX3G-24MT/ES-A

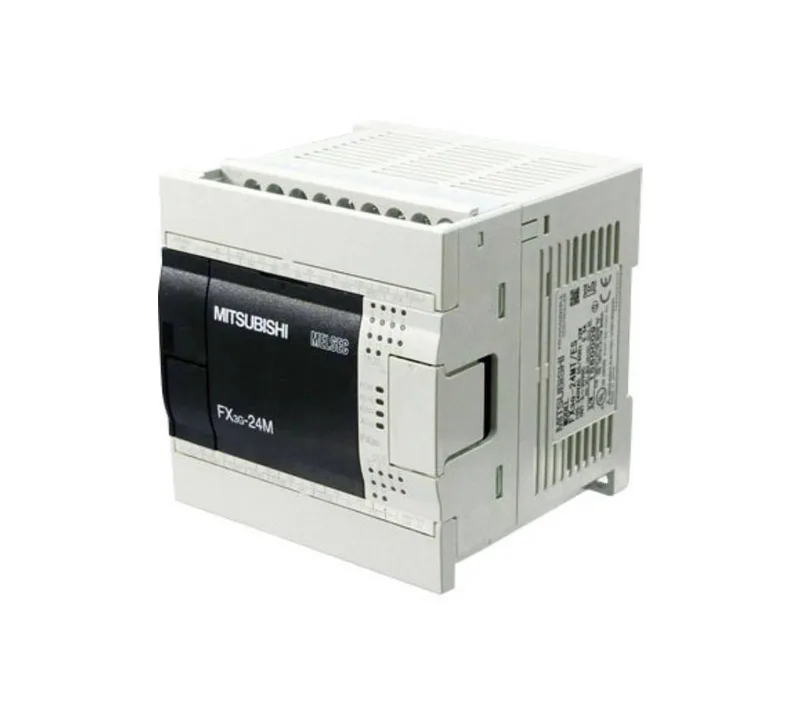

Mitsubishi FX3G-24MT/ES-A programmable logic controller, AC power supply, 24V DC sink/source input, transistor sink output, 14 input points (16 expandable), 10 output points (16 expandable), terminal block connection, 0.55 kg.

$205.00Ref. price · indicative, final on quote
Mitsubishi Electric FX3G-24MT/ES-A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX3G-24MT/ES-A — Mechanical
ParameterValue
Weight0.55 Kg
FX3G-24MT/ES-A — Other specifications
ParameterValue
Input type24V DC(sink/source)
Output signalTransistor(sink)
Product typeAC Power Supply
Connection formTerminal block
Number of input points14(16)
Number of output points10(16)
Total number form of points24(32)
Power supply, input (output type)Connection on terminal block : T/ES = AC power supply/24V DC (sink/source) input/Transistor (sink) output

Product details

I/O Configuration and Field Wiring Fit

The FX3G-24MT/ES-A carries 14 local DC inputs (expandable to 16) that accept both sink and source field wiring — common 24 VDC proximity sensors and limit switches connect without polarity sorting. The 10 transistor sink outputs (expandable to 16) switch the DC negative rail, so loads share a common positive supply; this is the standard arrangement for high-speed transistor output to valve banks and small contactors.

Power Supply and Connection

The base unit is an AC-powered PLC (100–240 VAC typical for this series), so it needs a mains feed to the terminal block — no external DC power supply required for the logic side. All field wiring lands on the built-in terminal block; no special connector or backplane is needed, which keeps panel wiring straightforward.

Frequently asked questions

What is the input and output configuration of the FX3G-24MT/ES-A?

It has 14 DC input points (expandable to 16) that accept both sink and source wiring at 24 VDC, and 10 transistor sink output points (expandable to 16). Total I/O points are 24, expandable to 32.

MPN
FX3G-24MT/ES-A
