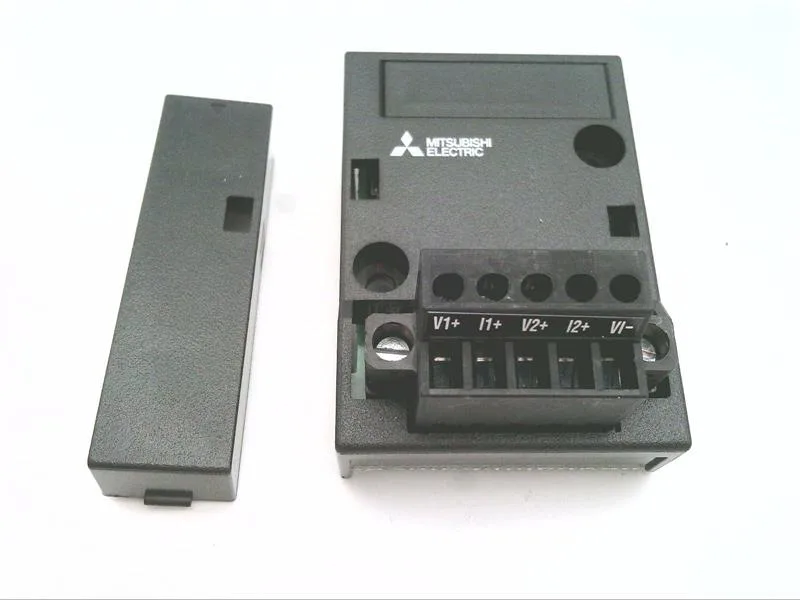

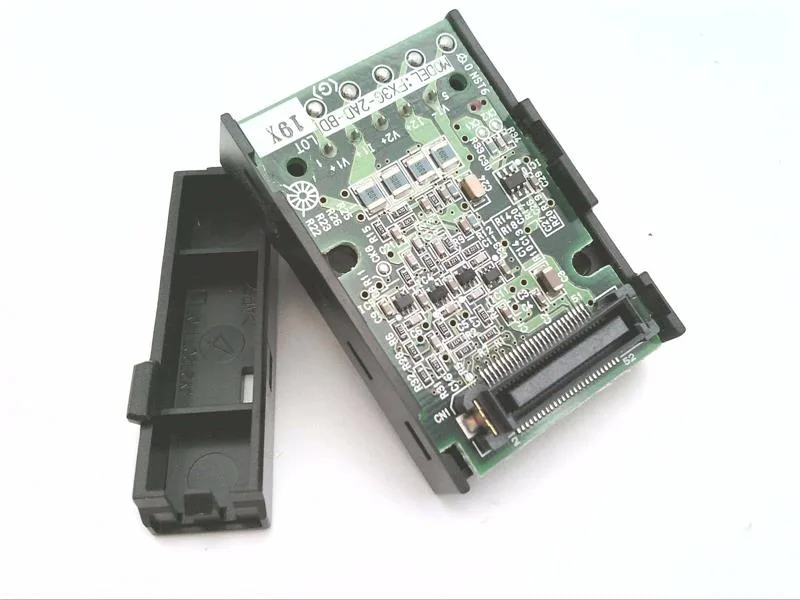

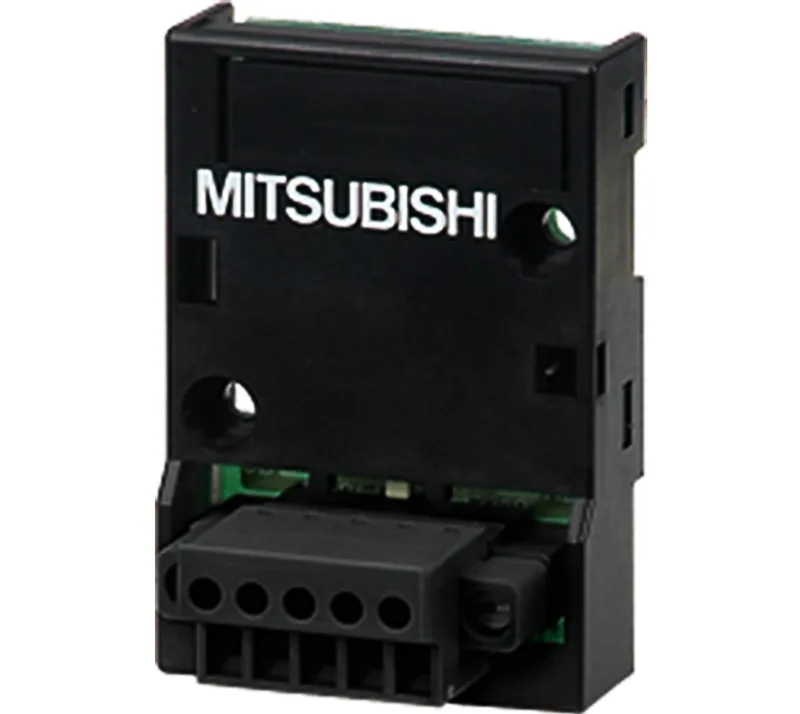

Mitsubishi Electric FX3G-2AD-BD
MPNFX3G-2AD-BD
Analog input board FX3G-2AD-BD
$70.00 – $138.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Withstand voltage | Non-isolated between the analog input and the PLC main unit (Please do not withstand voltage test) |
| Resolution voltage input | 2.5mV (10V × 1/4000) |
| Digital output voltage input | 12bit binary |
| Overall accuracy voltage input | Ambient temperature 25 °C ± 5 °C: 0.5% ± with respect to full-scale 10V (± 50mV) ambient temperature 0 °C ~ 55 °C: full scale 10V for ± 1.0% (± 100mV) |
| The absolute maximum input voltage input | -0.5V, + 15V |
| Analog input analog input range voltage input | DC0V ~ 10V (input resistance 198.7kΩ) |
| Current input | Ambient temperature 25 °C ± 5 °C: 0.5% ± with respect to full-scale 16mA (± 80μA) ambient temperature 0 °C ~ 55 °C: full scale 16mA for ± 1.0% (± 160μA) |
| Frequency | 57 ~ 150Hz : Acceleration: 9.8m / s2 X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Direct mounting at the time frequency | 10 ~ 57Hz : Half amplitude: 0.075mm X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Vibration resistance when the DIN rail mounting frequency | 10 ~ 57Hz : Half amplitude: 0.035mm X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Operating temperature | 0 ~ 55 °C ····· -20 ~ 70 °C ····· during storage operations |
| Relative humidity | 5 ~ 95% RH (non-condensing) ..... operation |
All specifications+13 ▾
| Parameter | Value |
|---|---|
| Shipping weight | 1 Kg |
| Impact | 147m / s2, duration of action 11ms, X at half-sine pulse, Y, Z directions 3 times each |
| Anti-noise | Noise voltage 1,000Vp-p, noise width 1μs, due to rising 1ns, cycle 30 ~ 100Hz of noise simulator |
| Advanced use | 2,000m or less can not be used under the pressurized environment to more than atmospheric pressure. There is a possibility of failure. |
| Manufacturer | Mitsubishi Electric |
| Use atmosphere | Corrosive, there is no flammable gas, conductive dust (dust) that is not terribly |
| Apply sequencer | FX3S, FX3G (V1.10 or later) FX3S when connected, it can not be used in conjunction function expansion board and FX3S-CNV-ADP. |
| Insulation method | Analog input and inter-sequencer, non-isolated both between each channel |
| O occupied points | 0 points (no relation to the maximum input and output points of the sequencer) |
| Estimated lead time | 1 - 10 Working Days |
| Input characteristic | And voltage and current inputs, you can use a mix. - Input characteristics can not be adjusted. |
| A (D conversion time) | 180μs (every calculation cycle update of the data) |
| Insulation resistance | Non-isolated between the analog input and the PLC main unit (Please do not insulation resistance test) |
MPN
FX3G-2AD-BD
