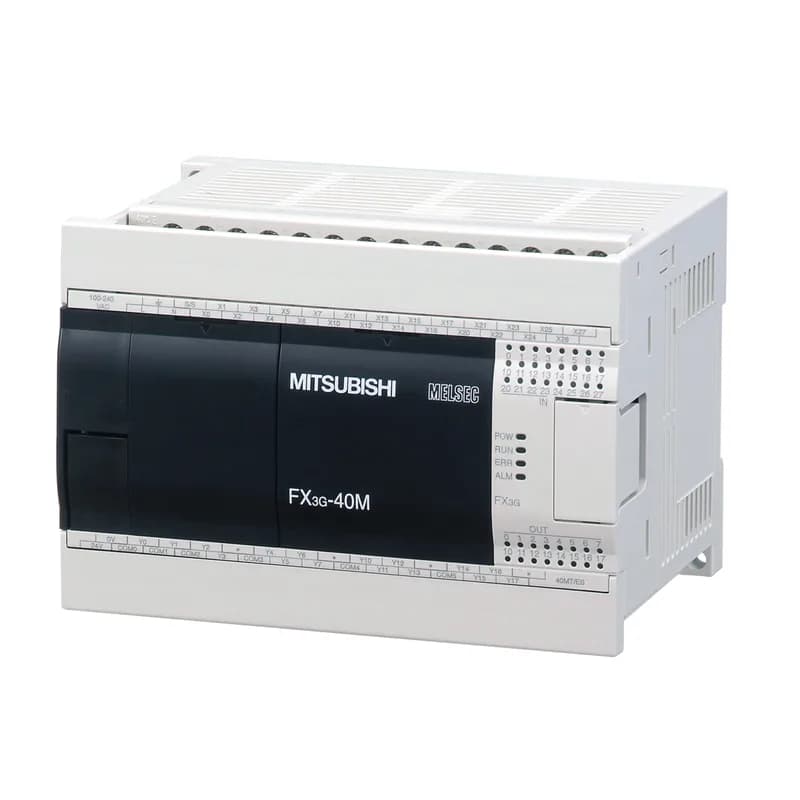

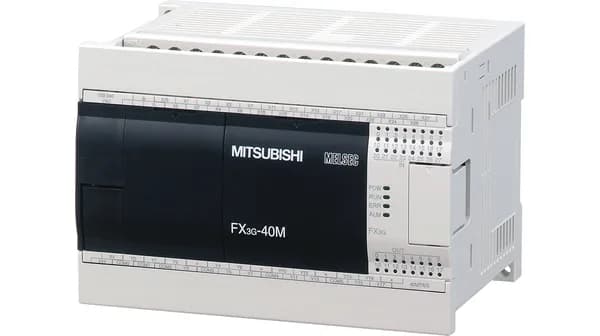

The FX3G-40MT/DSS is a 24 VDC compact PLC from the FX3G Series, delivering 24 digital inputs and 16 transistor sourcing outputs with a 2 ms scan time. Its 6 high-speed counters and 3 impulse outputs handle encoder feedback and pulse-train positioning directly, without an external motion module. Program capacity of 32000 steps and an onboard real-time clock support medium-complexity standalone or distributed control.
Compared to the FX3S-30MR/ES
The FX3S-30MR/ES offers 16 inputs and 14 relay outputs on AC power. The FX3G-40MT/DSS provides 24 inputs, 16 transistor outputs, 24 VDC operation, and 32000 steps.
Panel mounting and wiring
DIN rail mount with screw terminals. IP10 rated — suitable for clean, dry cabinet environments, not washdown areas. The 40 I/O points on the base unit reduce the need for expansion modules in smaller machines. Expandability via the FX3G bus allows adding analog, temperature, or additional discrete I/O as needed.
Sourcing this FX3G-40MT/DSS
The FX3G Series is widely fielded in packaging, material handling, and assembly machines. We supply this unit quoted to your BOM line — submit an RFQ for lead time and availability.
