FX3G-40MT/ES-A is a main unit from the Mitsubishi FX3G series, delivering 24 inputs and 16 outputs for a total of 40 I/O points. The input side accepts 24 V DC in sink or source configuration per common; outputs are transistor (sink) type, suitable for switching DC loads directly. Connection is via a terminal block — no special I/O modules required. This unit is sized for standalone machine control or conveyor sections where the I/O count fits.

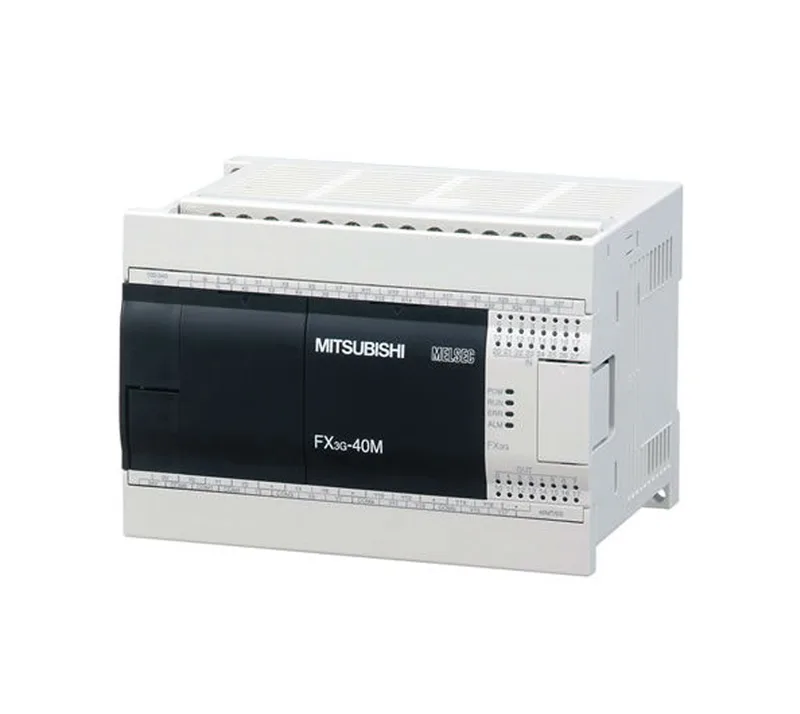

Mitsubishi FX3G-40MT/ES-A PLC Main Unit, 40 I/O Points
MPNFX3G-40MT/ES-A
Mitsubishi FX3G series main unit, 40 I/O points (24 inputs / 16 outputs), 24 V DC sink/source input, transistor (sink) output, terminal block connection.
$247.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Mechanical
| Parameter | Value |
|---|---|
| Weight | 0.7 Kg |
Other specifications
| Parameter | Value |
|---|---|
| Input type | 24V DC(sink/source) |
| Output signal | Transistor(sink) |
| Product type | Main Unit |
| Connection form | Terminal block |
| Number of input points | 24 Points |
| Number of output points | 16 points |
| Power supply, input (output type) | Connection on terminal block : T/ES = AC power supply/24V DC (sink/source) input/Transistor (sink) output |
| Total number of input and output points | 40 |
Product details
Frequently asked questions
What is the estimated lead time for the FX3G-40MT/ES-A?
Lead time is estimated at 1–10 working days when quoted to order.
MPN
FX3G-40MT/ES-A
