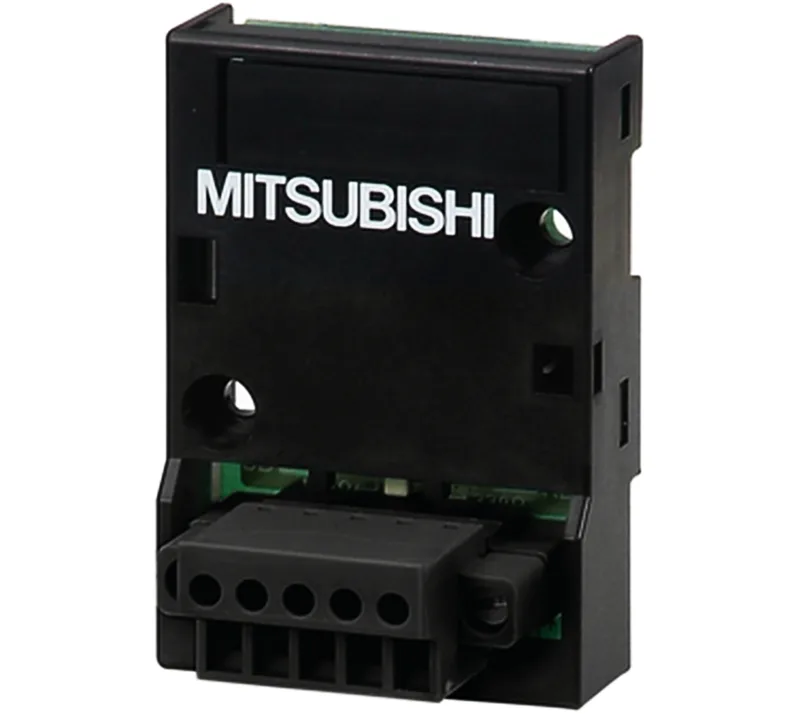

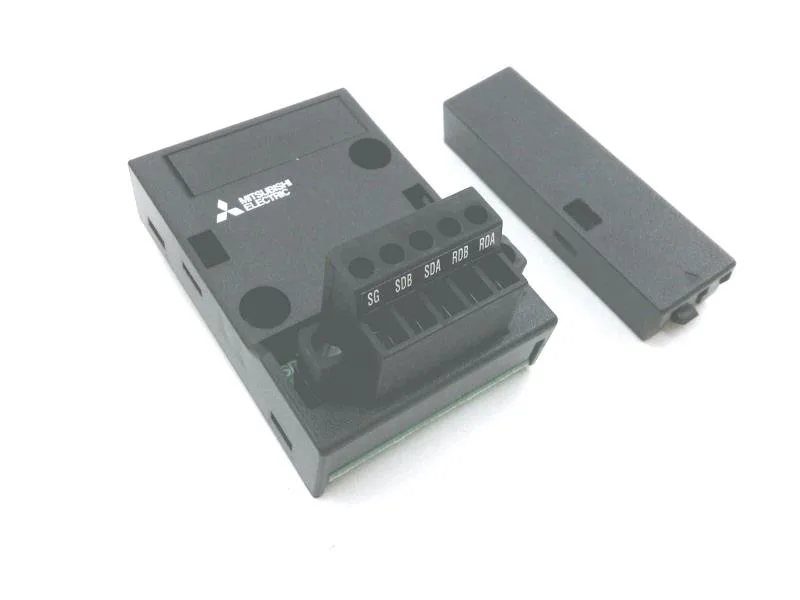

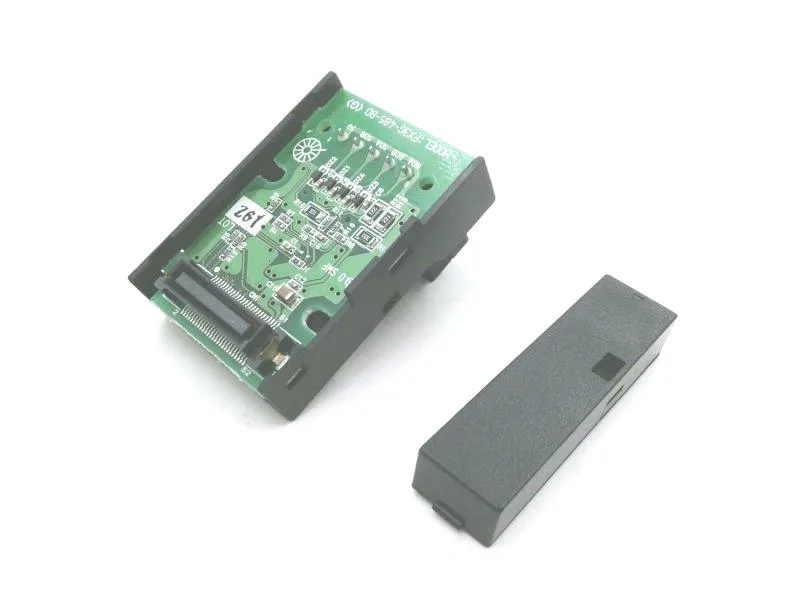

Mitsubishi Electric FX3G-485-BD
MPNFX3G-485-BD
Communications unit
$23.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Communications unit |
| Frequency | 57 ~ 150Hz : Acceleration: 9.8m / s2 X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Direct mounting at the time frequency | 10 ~ 57Hz : Half amplitude: 0.075mm X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Vibration resistance when the DIN rail mounting frequency | 10 ~ 57Hz : Half amplitude: 0.035mm X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Communication system | Half-duplex bi-directional |
| Inverter communication | 4800/9600/19200/38400 (bps) |
| Operating temperature | 0 ~ 55 °C ····· operation, -25 ~ 75 °C ····· during storage |
| Relative humidity | 5 ~ 95% RH (non-condensing) ...... operation |
| Shipping weight | 1.5 Kg |
| Impact | 147m / s2, duration of action 11ms, X at half-sine pulse, Y, Z directions 3 times each |
| Anti-noise | Noise voltage 1,000Vp-p, noise width 1μs, due to rising 1ns, cycle 30 ~ 100Hz of noise simulator |
| Manufacturer | Mitsubishi Electric |
| Display | RD, SD |
| Parallel link | 115200 (bps) |
| Apply sequencer | FX3S, FX3G FX3S when connected, can not be used in conjunction function expansion board and FX3S-CNV-ADP. |
| O occupied points | 0 points (no relation to the maximum input and output points of the sequencer) |
| Estimated lead time | 1 - 10 Working Days |
| Simple PC-to-PC link | 38400 (bps) |
MPN
FX3G-485-BD
