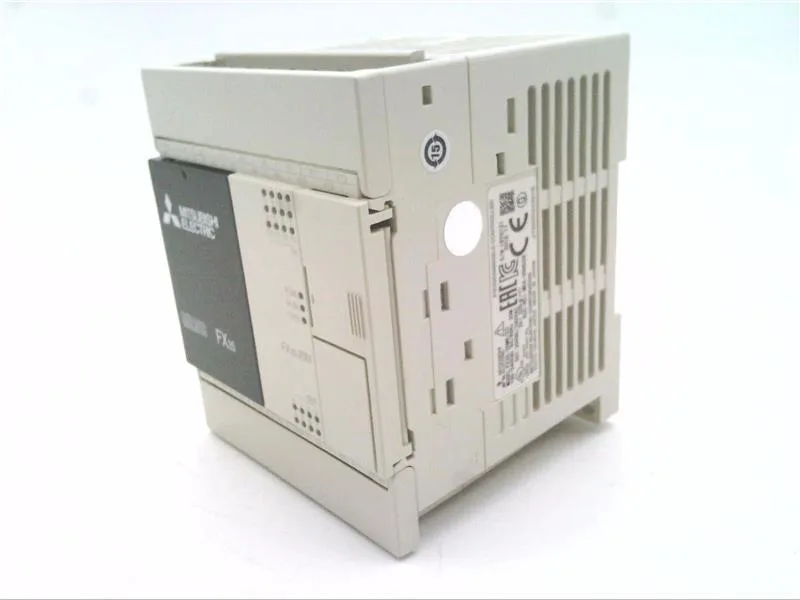

Mitsubishi FX3S-20MR/ES, FX3S Series base unit, 20 total I/O (12 inputs, 8 relay outputs), 100 - 240 VAC supply, 20 W consumption, 75 x 90 x 75 mm.
| Parameter | Value |
|---|---|
| Output signal | Relay |
| Power supply | 100 - 240VAC |
| Power consumption | 20 |
| Weight | 0.4 |
| Shipping weight | 1.4 Kg |
| Dimensions(w x h x d) | 75 x 90 x 75 |
| Certification | UL cUL CE (EMC) |
| Timers | 138 points |
| Counters | 88 points |
| Manufacturer | Mitsubishi Electric |
| Model number | FX3S-20MR/ES |
| Stocked item | S |
| Parameter | Value |
|---|---|
| Data registers | 3,000 points |
| Auxiliary relays | 1,536 points |
| Integrated inputs | 12 |
| Basic instructions | 0.21µs / instruction (Contact Instruction) |
| Integrated outputs | 8 |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Applied instructions | 0.5µs / instruction (MOV Instruction) |
| Integrated inputs (Outputs) | 20 |
Mitsubishi FX3S-20MR/ES PLC with 12 inputs, 8 relay outputs, 100-240 VAC supply. Program speed: 0.21 µs contact instruction, 0.5 µs applied. Includes 138 timers and 88 counters.
Certifications include UL, cUL, and CE (EMC directive). No special isolation or line reactor is needed for standard industrial environments. For compliance documentation, the CE mark covers both EMC and LV directives for this series.
UL, cUL, and CE (EMC). No specific RoHS or REACH statements are on this listing, but the CE mark implies compliance with applicable EU directives.
