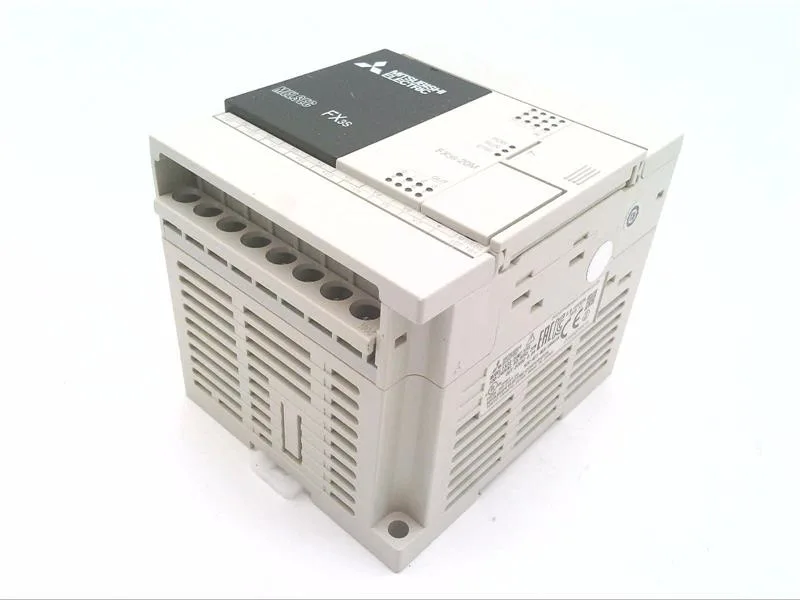

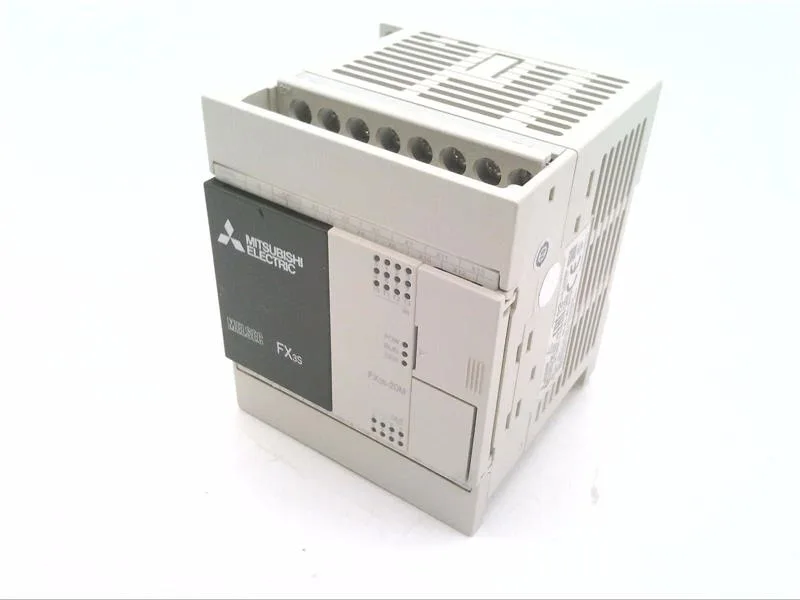

Mitsubishi FX3S-20MT/ESS, FX3S-series compact PLC base unit, 12 DC inputs / 8 transistor (source) outputs, current production.
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
The Mitsubishi FX3S-20MT/ESS is a compact PLC base unit in the FX3S family, configured with 12 DC inputs and 8 transistor (source) outputs on the unit itself, with the input/output split carried in the order code rather than added by expansion. It sits in the PLCs & HMIs category as a PLC base unit, not an add-on card or HMI panel, so any panel layout should reserve space for the base plus its terminal row rather than for a card-edge footprint.
The FX3S-20MT/ESS is listed at 0.45 kgs, the figure used for panel mass tally and shipping-kit checks rather than for electrical fit.
No. The FX3S-20MR/DS is the relay-output sibling in the same FX3S frame — same input count but mechanical relay outputs instead of transistor source outputs, so swapping one for the other is a wiring and load-rating change, not a direct substitution.
