The FX3SA-20MT-CM: The transistor outputs are sink-type (drain), suitable for switching DC loads up to the rated current. This allows faster switching than relay outputs and longer life in high cycle applications. Built-in USB and RS-422 communication ports simplify programming and connection to HMIs or drives. The high-speed counter inputs support 1-phase 60 kHz on 2 points and 10 kHz on 4 points for encoder feedback. Power consumption is 20W, making it efficient for small control panels. The compact 20-point package fits tight spaces.

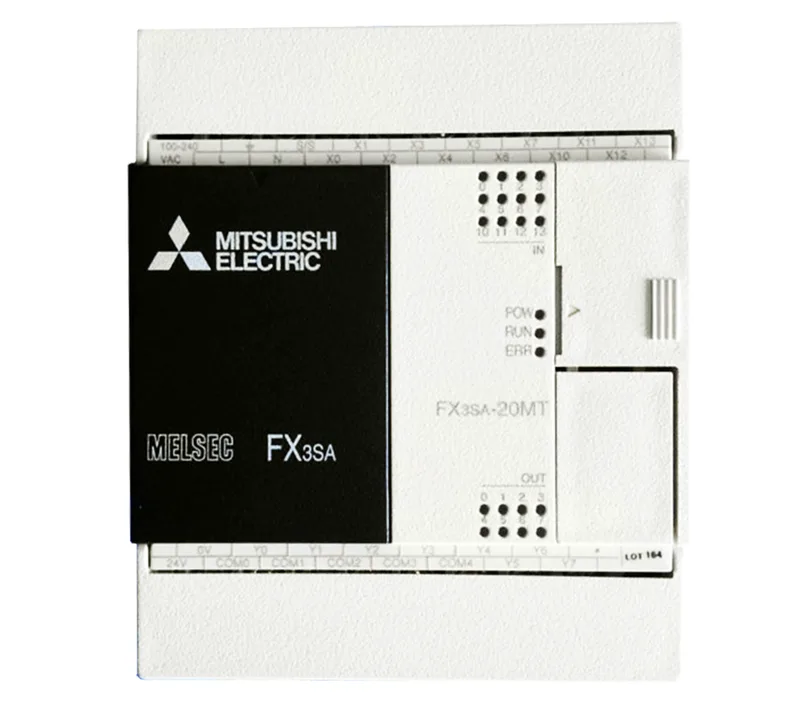

FX3SA-20MT-CM Mitsubishi PLC, 20 I/O, Transistor Output
MPNFX3SA-20MT-CM
Mitsubishi FX3SA-20MT-CM Programmable Logic Controller, 20 I/O points, transistor sink outputs, AC100-240V power supply.
$136.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Output | Relay Type Transistor Type |
| Output form | transistor output (drain) |
| Input points | 12 points |
| Power supply | AC100-240V |
| Output points | 8 points |
| Power consumption | 20W |
| Communication port | USB/RS-422 |
| High-speed counter | 1-phase / 60 kHz : 2 points / 10 kHz : 4 points |
| Input and output points | 20 points |
Product details
Frequently asked questions
What is the output type of the FX3SA-20MT-CM?
The outputs are transistor (drain/sink) type, not relay. This makes it suitable for high-speed DC loads.
Can the FX3SA-20MT-CM replace a LJ71C24-R2-CM in a panel?
No. The LJ71C24-R2-CM is a communication module, not a PLC. The FX3SA-20MT-CM is a programmable controller with integrated I/O. They have different form factors and functions, so they are not drop-in replacements.
MPN
FX3SA-20MT-CM
