Mitsubishi Electric FX3U-16MT/ES-A — PLCs (Programmable Logic Controllers)

Mitsubishi FX3U-16MT/ES-A PLC, 16 I/O Transistor Sink

MPNFX3U-16MT/ES-A

Mitsubishi Electric FX series, main unit with 16 I/O, transistor (sink) outputs, 100-240 VAC supply, 30 W power, 64,000-step program memory.

$72.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

FX3U-16MT/ES-A — Specifications
ParameterValue
Power30 W
Timer512
OriginMitsubishi - Japan
Counter235
Power supply100-240 VAC
Product typeMain units with 16 I/O
Memory program64,000 Steps
Cable connectionFX-USB-AW, USB-SC09, USB-SC09
The CPU with 16 i / o8 inputs and 8 outputs transistor (Sink)

Product details

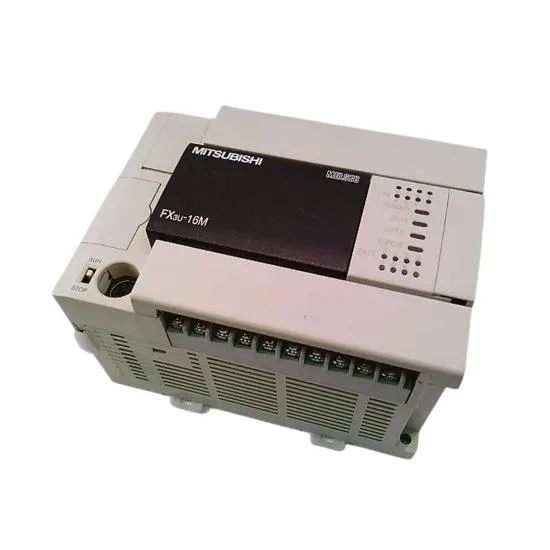

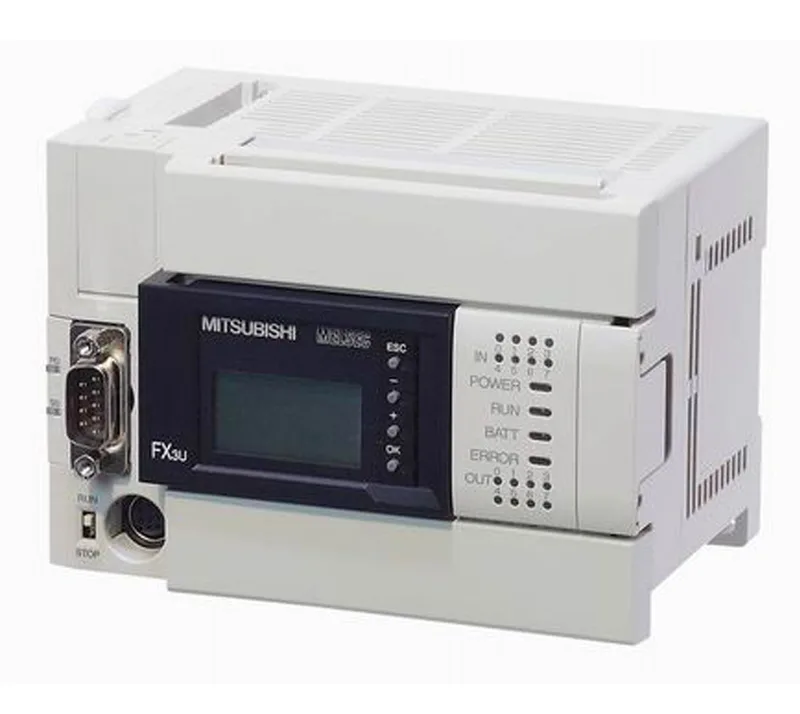

The Mitsubishi FX3U-16MT/ES-A is a compact PLC main unit with 16 I/O points: 8 digital inputs and 8 transistor-sink outputs. It runs on 100–240 VAC and draws 30 W, so it fits small control panels without heavy power supply derating.

Drop-in vs FX5 series

The FX5-8EX/ES (an 8-point input module from the iQ-F series) is not a functional substitute. FX5 units use a different backplane, mounting footprint, and power rail. For a panel designed around the FX3U, stick with the FX3U-16MT/ES-A — rewiring and re-paneling would be required for an FX5 swap.

MPN
FX3U-16MT/ES-A
