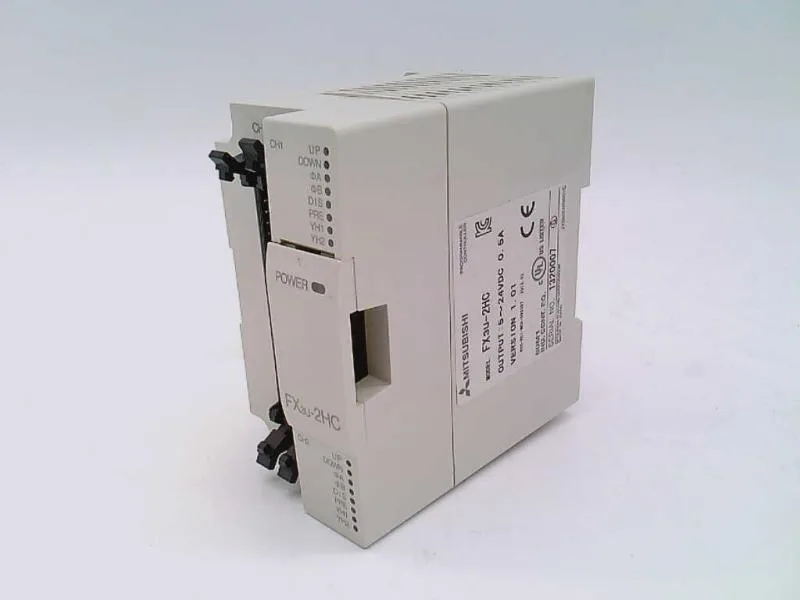

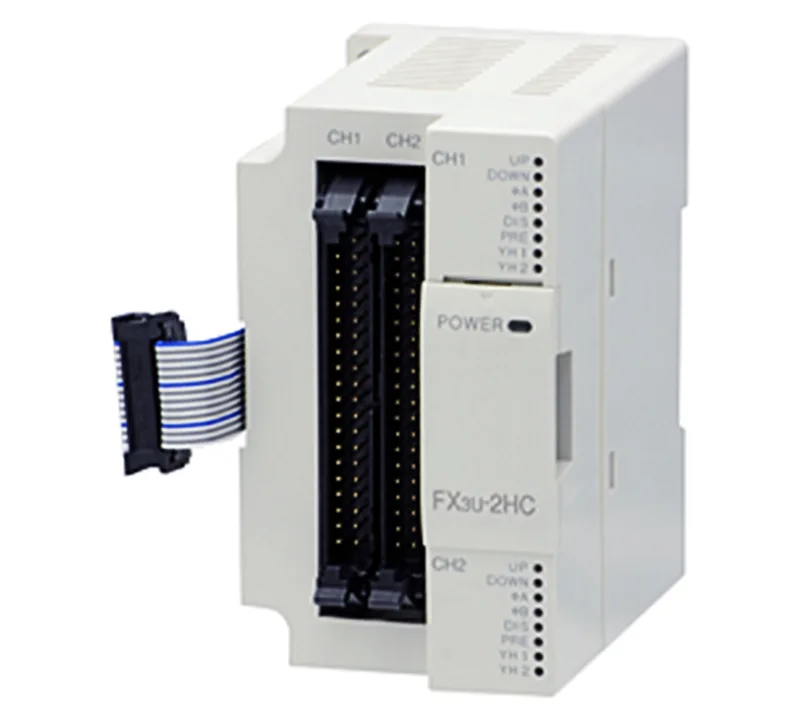

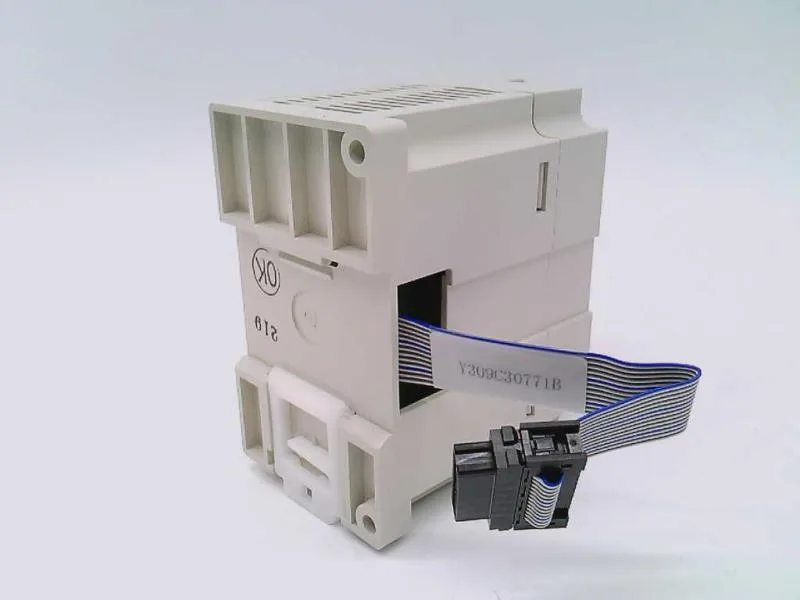

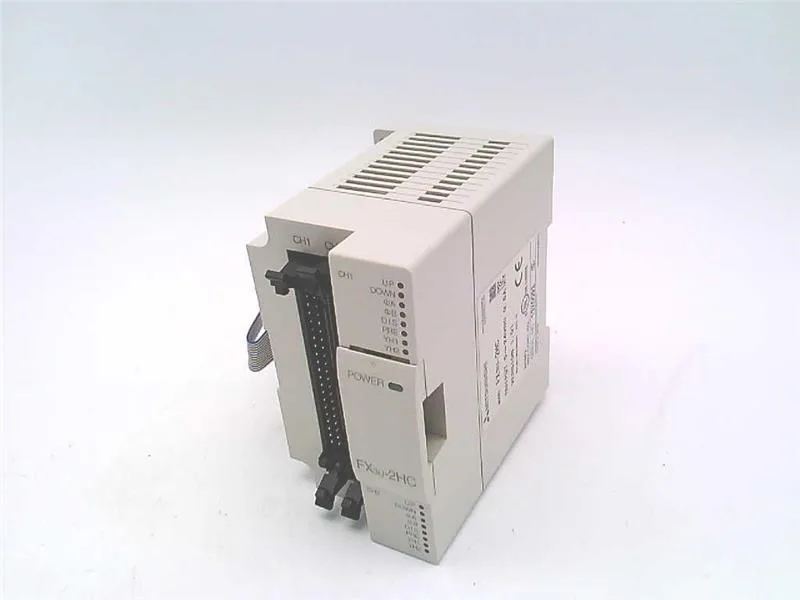

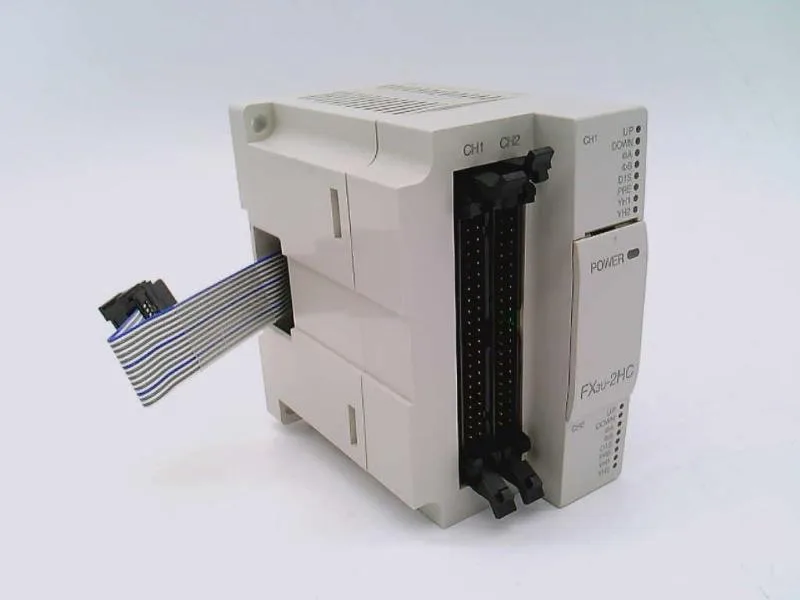

Mitsubishi FX3U-2HC High-Speed Counter Block
MPNFX3U-2HC
High speed counter block FX 3 U - 2 HC
$336.80 – $476.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Input voltage | DC 5 V, DC 12 V, DC 24 V can be selected by connection terminal |
| Withstand voltage | Between all terminals and ground terminal: 500 VAC for 1 minute |
| Power supply | DC 5 V 245 mA (internal power supply from the sequencer) |
| Frequency | 57 to 150 Hz : Acceleration: 9.8 m / s 2 10 times in X, Y, Z directions (80 minutes in total) |
| Direct installation frequency | 10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) |
| Maximum response frequency 1 phase 1 input | 200 kHz or less |
| Anti-vibration when DIN rail is installed frequency | 10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) |
| 2 phase input | 200 kHz or less (1 multiplication), 100 kHz or less (2 multiplication), 50 kHz or less (4 multiplication) |
| 1 phase 2 input | 200 kHz or less |
| Operating temperature | 0 to 55 ° C. ... Operating -25 to 75 ° C. ..... Save |
| Use altitude | Can not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down. |
| Relative humidity | 5 to 95% RH (noncondensing).... in operation |
All specifications+18 ▾
| Parameter | Value |
|---|---|
| Shipping weight | 1.2 Kg |
| Mass | 0.2 Kg |
| Ground | Class D grounding (grounding resistance: 100 Ω or less)Grounding should be dedicated ground or common ground. |
| Count mode | Automatic up / down (However, the count direction is determined by the following command of 1 phase 1 input counter.) [H / W up / down] Up / down counting is performed by OFF / ON of A phase input terminal. [S / W up / down] Up / down is performed with the current value (K0 / K1) of BFM # 1, # 41. |
| Count range | When 32 bits are specified: -2, 147, 483, 648 to +2, 147, 483, 647 When 16 bits are specified: 0 to 65,535 (upper limit value can be specified by BFM # 3, # 2, # 43, |
| Input format | Open collector, differential line driver (Differential line driver output type encoder is connected to 5 V terminal) |
| Manufacturer | Mitsubishi Electric |
| Display | φ A, φ B, DIS, PRE, YH 1, YH 2, POWER, UP, DOWN |
| Output format | Open collector output 2 points 5 VDC to 24 V 0.5 A |
| Noise immunity | Noise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si |
| Use atmosphere | There is no corrosive property, flammable gas, conductive dust (dust) is not serious |
| Impact resistance | 147 m / s 2 , working time 11 ms, three times in X, Y, Z directions with a sine half-wave pulse |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Application sequencer | For connection to FX5U, FX5UC, FX5 - CNV - BUS or FX5 - CNV - BUSC is connected to FX5U, FX5U, FX3U (V2.20 or higher), FX3UC Is required. Depending on the system configuration, please choose either.To connect to FX3UC, FX2NC - CNV - IF or FX3UC - 1PS - 5V is required. |
| Insulation resistance | Between all terminals and ground terminal: 500 MV DC 500 MΩ or more with an insulation resistance meter |
| Number of input channels | 2 ch |
| Matching output (comparison) | When the current value of the counter matches the comparison setting value, the comparison output is set (ON) within 30 μs and cleared (OFF) within 100 μs by the reset command. |
| Number of occupied i (O points) | 8 points (either input or output may be considered) |
MPN
FX3U-2HC
