Mitsubishi Electric FX3U-32MT/ESS

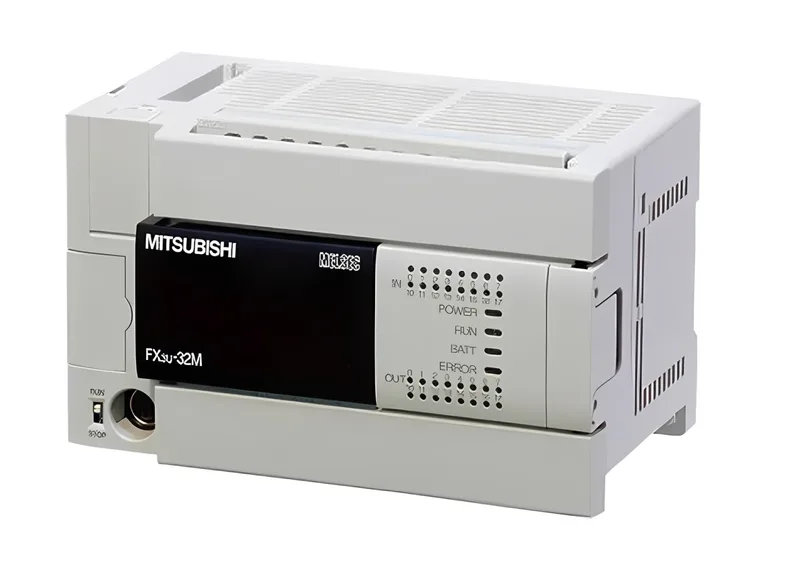

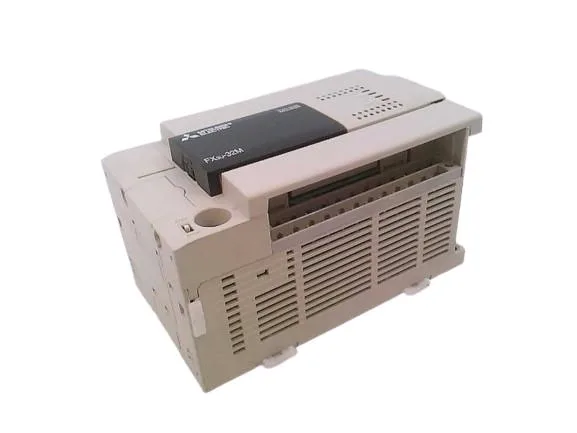

Mitsubishi FX3U-32MT/ESS MELSEC-F CPU, 16/16 I/O

MPN FX3U-32MT/ESS

MELSEC-F FX3U main unit, 16 inputs / 16 outputs transistor source, 100-240 VAC, 64K steps RAM, expandable to 256 local I/O.

$274.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FX3U-32MT/ESS specifications
ParameterValue
SeriesMELSEC-F SERIES
Output signalTRANSISTOR
Product typeFX3U
IP ratingIP10
Weight0.65 kg

Product details

The Mitsubishi FX3U-32MT/ESS is a MELSEC-F series main unit with 16 transistor-sourced outputs and 16 DC inputs, powered by 100-240 VAC. This is the CPU for a mid-range compact PLC application: expandable to 256 local I/O points (384 with remote), with 64K steps of program memory stored in RAM and backed by a battery to retain logic during power loss. Cycle time runs 65 ns for a basic LD instruction and 642 ns for MOV.

USB connectivity is an option on this unit, not built into the base CPU — a separate interface module or USB programming cable is required if that connection is needed. For BOM line fill or line-down replacement, quote this part against an RFQ. The mature lifecycle and steady availability make it a solid choice for ongoing production support.

MPN
FX3U-32MT/ESS
