FX3U-485ADP - Mitsubishi Electric
MPNFX3U-485ADP

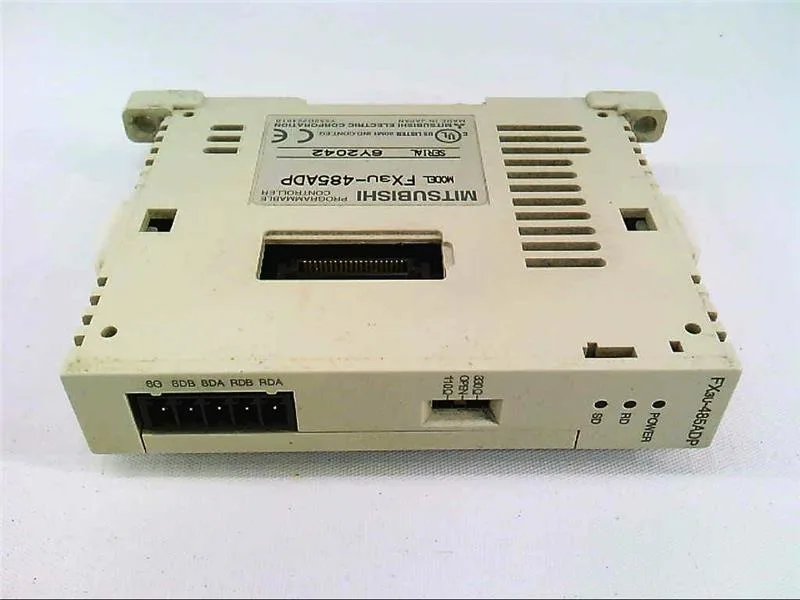

Mitsubishi Electric FX3U-485ADP
$186.00 – $200.60Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Withstand voltage | External terminals and between the PLC main unit of the ground terminal: AC500V 1 minute |
| Power supply | DC5V 20mA (internal power supply from the sequencer) |
| Communication system | Half-duplex bi-directional |
| Inverter communication | 4800/9600/19200/38400 (Bps) FX3U, FX3UC is, later Ver.2.41, it supports 38400bps. |
| Communication procedure | . MODBUS (master or slave) - No-protocol communication, computer link (dedicated protocol format 1, dedicated protocol format 4), parallel link and simple PC-to-PC link inverter communication |
| No-protocol, the computer link | 300/600/1200/2400/4800/9600/19200/38400 (Bps) FX3U, FX3UC is, later Ver.2.41, it supports 38400bps. |
| Communication speed MODBUS communication | 300/600/1200/2400/4800/9600/19200/38400/57600/115200 (bps) corresponds to 38400/57600 / 115200bps from products manufactured on or after July 2012. (Serial number: 127 **** or later) |
| When the DIN rail mounting | Frequency: 57 ~ 150Hz: Acceleration: 4.9m / s2 X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Direct mounting at the time | Frequency: 57 ~ 150Hz: Acceleration: 9.8m / s2 X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Vibration resistance when the DIN rail mounting | Frequency: 10 ~ 57Hz: Half amplitude: 0.035mm X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| External device connection method | Europe terminal block |
| Operating temperature | 0 ~ 55 °C ..... operation, -25 ~ 75 °C ..... during storage |
All specifications+22 ▾
| Parameter | Value |
|---|---|
| Relative humidity | 5 ~ 95% RH (non-condensing) ...... operation |
| Shipping weight | 1 Kg |
| Transmission standard | RS-485 standard, conform to the RS-422 standard |
| Mass | 0.08kg |
| Impact | 147m / s2, duration of action 11ms, X at half-sine pulse, Y, Z directions 3 times each |
| Anti-noise | Noise voltage 1,000Vp-p, noise width 1μs, due to rising 1ns, cycle 30 ~ 100Hz of noise simulator |
| Advanced use | 2000m or less can not be used in the pressurized environment to more than atmospheric pressure. |
| Manufacturer | Mitsubishi Electric |
| Display | RD, SD, POWER |
| Parallel link | 115200 (bps) |
| Use atmosphere | Corrosive, there is no flammable gas, conductive dust (dust) that is not terribly |
| Apply sequencer | [FX3S] V1.00 and later: corresponding to all the communication function |
| Insulation method | Photocoupler |
| O occupied points | 0 points (no relation to the maximum input and output points of the sequencer) |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Simple PC-to-PC link | 38400 (bps) |
| Insulation resistance | External terminals and between the PLC main unit of the ground terminal: DC500V 5MΩ more in insulation resistance tester |
| Transmission distance | The total length 500m or less (to the equipment to be connected FX2N-485-BD, FX1N- 485-BD, FX3U-485-BD, following the total length 50m if it contains a FX3G-485-BD) |
| [FX3G] v1.00 and later | MODBUS, corresponding to the communication functions other than the inverter communication V1.10 and later: inverter communication function to the corresponding V1.30 and later: in MODBUS communication function correspondence |
| [FX3U] v2.20 and later | communication functions other than the MODBUS communication to the corresponding V2.40 and later: corresponds to the MODBUS communication function |
| [FX3GC] v1.40 and later | corresponding to all the communication function |
| [FX3UC] v1.00 and later | MODBUS communication communication function to the corresponding non- V2.40 and later: corresponds to the MODBUS communication function. |
