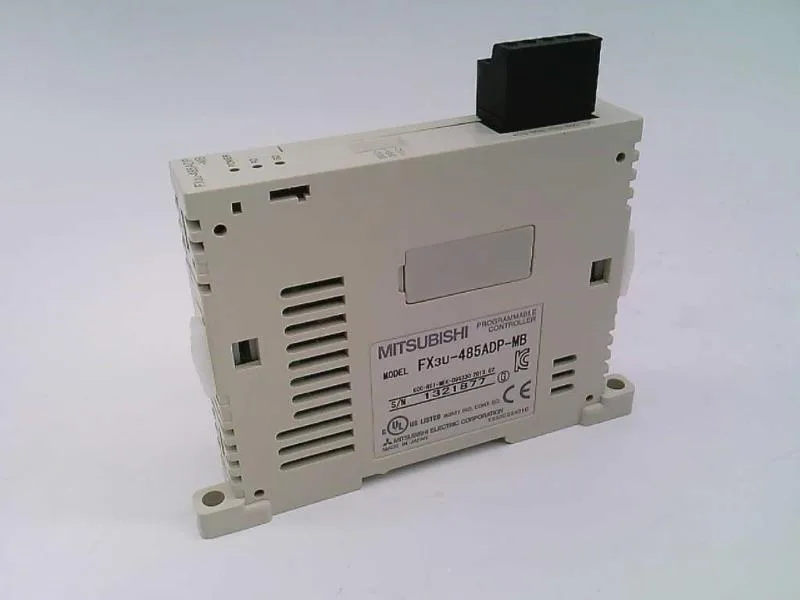

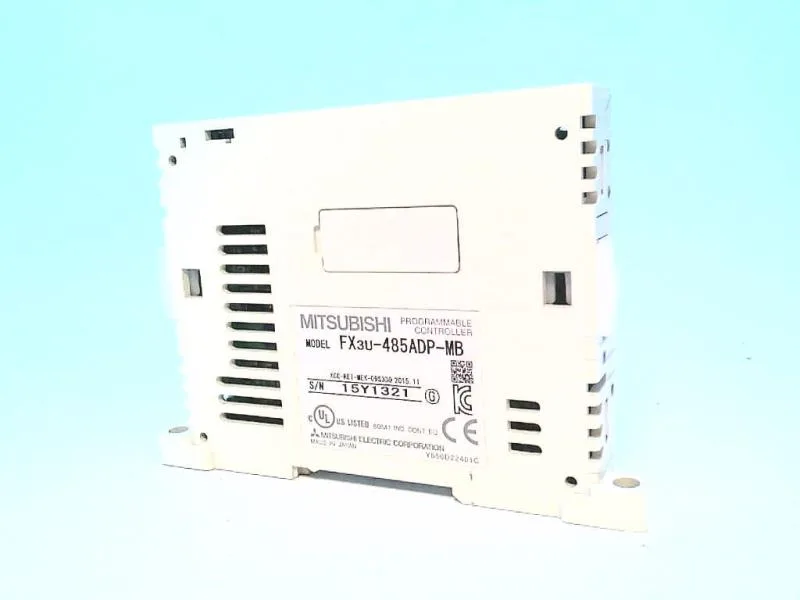

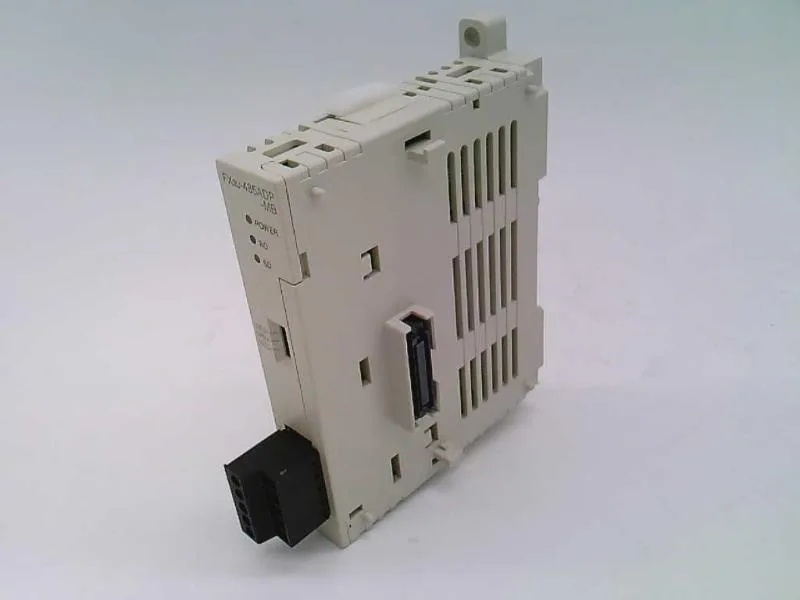

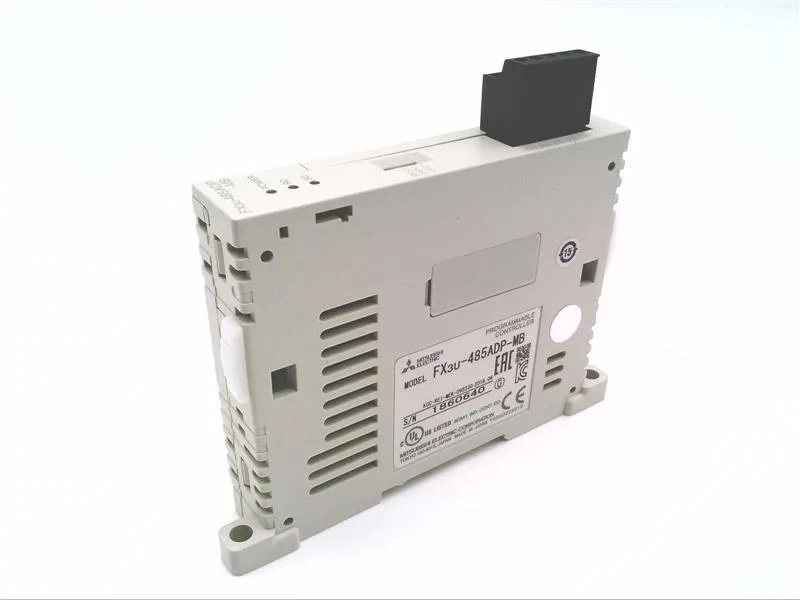

Mitsubishi Electric FX3U-485ADP-MB

Mitsubishi FX3U-485ADP-MB Modbus Serial Communication Adapter, RS-485, Mature

MPN FX3U-485ADP-MB

Mitsubishi Electric FX3U-485ADP-MB, Modbus Serial Communication Adapter, RS-485/422, 115200 bps max, DC5V 20mA, 0.08kg, mature lifecycle.

$98.00 – $146.84 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FX3U-485ADP-MB specifications
ParameterValue
Product typeModbus Serial Communication Adapter
External device connection methodEuropean type terminal block
Temp operating max75 °C
Temp operating min-25 °C
Weight0.08 Kg
Insulation methodPhotocoupler

Product details

Communication Capabilities

Supports multiple protocols: Modbus RTU (master or slave), no-protocol communication, computer link using dedicated formats 1 and 4, parallel links up to 115200 bps, simple PC-to-PC links up to 38400 bps, and inverter communication at 4800/9600/19200/38400 bps. The Modbus baud rate goes up to 115200 bps on units manufactured after July 2012 (serial number 127xxxx or later).

Rated for operation from 0 to 55 °C, 5 to 95% RH non-condensing. Storage range is -25 to 75 °C. Vibration resistance: 0.035 mm half-amplitude at 10–57 Hz when DIN-rail mounted, or 4.9 m/s² at 57–150 Hz. Impact tested to 147 m/s² for 11 ms half-sine, three times each in X, Y, Z. Maximum altitude 2000 m; do not use in pressurized environments above atmospheric. Weight is 0.08 kg, so it adds negligible load to the DIN rail.

Connections and Compatibility

Connects via a European terminal block with RS-485/422 multi-drop up to 500 m total length (shorter if mixed with older BD-type adapters). The adapter occupies 0 I/O points on the PLC, so it does not reduce the available input/output count. It uses photocoupler isolation and withstood 500 VAC for 1 minute between external terminals and ground.

MPN
FX3U-485ADP-MB
