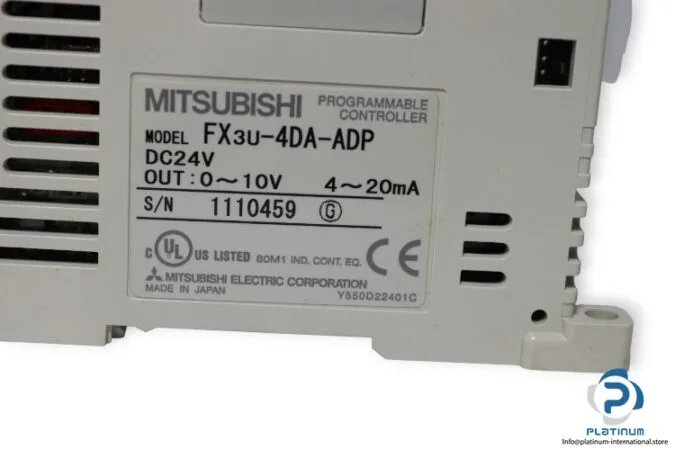

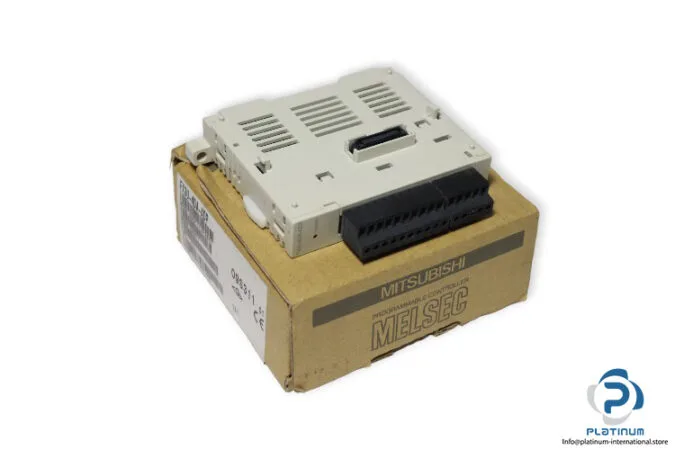

FX3U-4DA-ADP - Mitsubishi Electric
MPNFX3U-4DA-ADP
MELSEC FX Series PLC I/O Module for Use with MELSEC FX Series, Analogue, Relay, Transistor
$191.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Withstand voltage | All terminals and between the ground terminal: AC500V 1 minute |
| Resolution voltage output | 2.5mV (10V × 1/4000) |
| Overall accuracy voltage output | Ambient temperature 25 °C ± 5 °C: 0.5% ± with respect to full-scale 10V (± 50mV) ambient temperature 0 °C ~ 55 °C: ± 1.0 % for the full-scale 10V (± 100mV) external load resistance (Rs) is less than 5kΩ If, following the calculation amount will increase. (100mV will increase per Pasento 1) (47 × 100) ÷ (Rs Tasu 47) -0.9 (Pasento) |
| Analog output range voltage output | DC0V ~ 10V (external load 5kΩ ~ 1MΩ) |
| Current output | Ambient temperature 25 °C ± 5 °C: 0.5% ± with respect to full-scale 16mA (± 80μA) ambient temperature 0 °C ~ 55 °C: full scale 16mA for ± 1.0% (± 160μA) |
| Power supply | DC5V 15mA (internal power supply from the sequencer) DC24V Tasu 20 Pasento -15 Pasento 150MA (external power supply) |
| When the DIN rail mounting- frequency | 57 ~ 150Hz : Acceleration: 4.9m / s2 X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Direct mounting at the time- frequency | 57 ~ 150Hz : Acceleration: 9.8m / s2 X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Vibration resistance when the DIN rail mounting- frequency | 10 ~ 57Hz : Half amplitude: 0.035mm X, Y, Z each direction 10 times (for a total of each 80 minutes) |
| Operating temperature | 0 ~ 55 °C ····· -25 ~ 75 °C ····· during storage operations |
| Relative humidity | 5 ~ 95% RH (non-condensing) ...... operation |
| Shipping weight | 1.1 Kg |
All specifications
| Parameter | Value |
|---|---|
| Mass | 0.1kg |
| Ground | Class D grounding (ground resistance: 100Ω or less) <common ground is not allowed with the high-voltage system> ground, please dedicated ground or shared ground. |
| Impact | 147m / s2, duration of action 11ms, X at half-sine pulse, Y, Z directions 3 times each |
| Anti-noise | Noise voltage 1,000Vp-p, noise width 1μs, due to rising 1ns, cycle 30 ~ 100Hz of noise simulator |
| Advanced use | 2000m or less can not be used in the pressurized environment to more than atmospheric pressure. There is a possibility of failure. |
| Manufacturer | Mitsubishi Electric |
| Digital input | 12bit binary |
| Use atmosphere | Corrosive, there is no flammable gas, conductive dust (dust) that is not terribly |
| Apply sequencer | FX3S, FX3G, FX3U, FX3GC, FX3UC (FX3UC-32MT-LT since Ver.1.20) connection to the FX3S is required FX3S-CNV-ADP. Connection to the FX3G is required FX3G-CNV-ADP. Connection to the FX3U and FX3UC-32MT-LT (-2), you must have the function expansion board. |
| Insulation method | Analog output section and between the sequencer, insulated by photo-coupler is between the power supply and the analog output section, insulated by a DC / DC converter is between-each channel, non-isolated |
| O occupied points | 0 points (no relation to the maximum input and output points of the sequencer) |
| Estimated lead time | 1 - 10 Working Days |
| Insulation resistance | All terminals and between the ground terminal: DC500V 5MΩ more in insulation resistance tester |
| Output characteristic | For each channel, you can set the output mode (voltage / current output). |
| Number of output channels | 4 channel |
| FX3S / FX3G / FX3GC sequencer | 250μs (every calculation cycle update of the data) |
| D / a conversion time FX3U / FX3UC PLC | 200μs (every calculation cycle update of the data) |
MPN
FX3U-4DA-ADP
