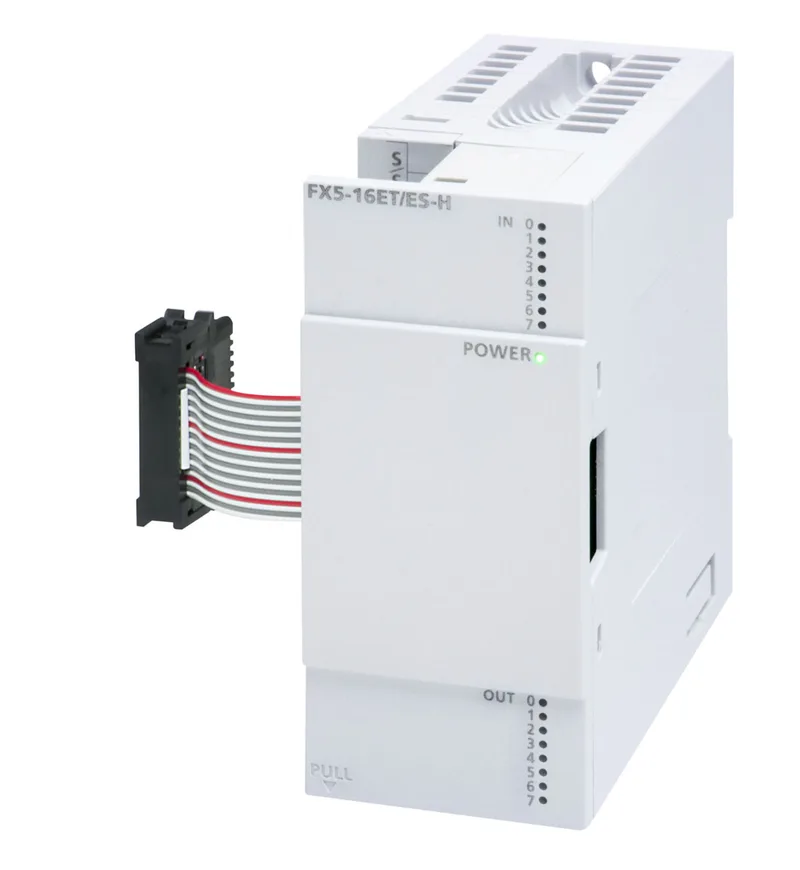

The FX5-16ET/ES-H is a high-speed pulse I/O module for the MELSEC iQ-F series, packing 8 digital inputs and 8 transistor sink outputs on a 40 mm wide base. It runs off 24 VDC and is built for applications needing mixed I/O in tight panel space.
Mitsubishi FX5-16ET/ES-H High-Speed Pulse I/O Module, 8DI/8D
MPNFX5-16ET/ES-H
Mitsubishi MELSEC iQ-F FX5-16ET/ES-H, High-Speed Pulse I/O Module, 8 DI / 8 DO Transistor Sink, 24 VDC.
$235.20 – $589.98Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | MELSEC IQ-F SERIES |
Mechanical
| Parameter | Value |
|---|---|
| Width | 9 CM |
| Height | 9 CM |
Product details
Frequently asked questions
Does the FX5-16ET/ES-H drop into a panel wired for the FX5-16EYT/ES?
No — the FX5-16ET/ES-H is 40 mm wide versus 90 mm for the FX5-16EYT/ES. Also, the FX5-16ET/ES-H has 8 inputs and 8 outputs, while the FX5-16EYT/ES has 16 outputs. The wiring and terminal assignments differ, so a direct swap would require rewiring and rail adjustment.
What is the type designation of the FX5-16ET/ES-H?
It is a High-Speed Pulse I/O Module (Type: HIGH-SPEED PULSE I/O MODULE).
MPN
FX5-16ET/ES-H
