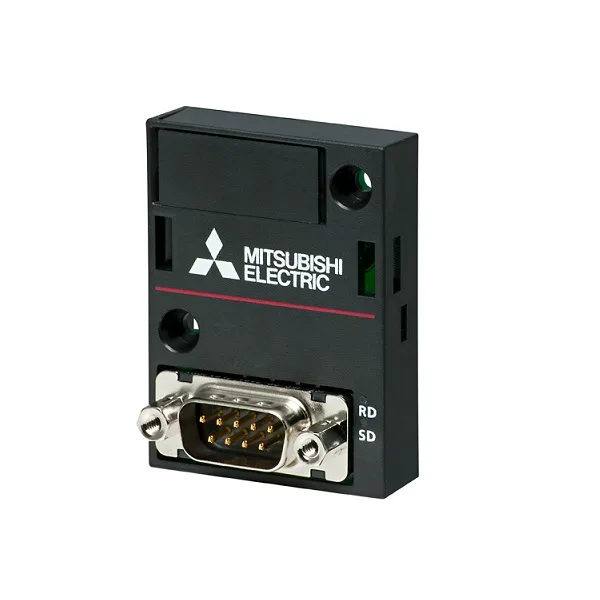

Mitsubishi Electric FX5-232-BD Serial Communication Board

MPN FX5-232-BD

Mitsubishi Electric FX5-232-BD serial communication board, RS-232C, 9-pin D-sub male, baud rates 300 to 115200 bps, half/full duplex, 15 m max distance, 0.02 kg.

$63.00 – $123.19 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FX5-232-BD specifications
ParameterValue
Product typeProgrammable Logic Controller
Connection method9-pin D-sub, male
Weight0.02 Kg
Maximum transmission distance15 m

Product details

Serial interface for the MELSEC iQ-F backplane

The FX5-232-BD is a serial communication board that plugs directly into the MELSEC iQ-F series CPU module, adding one RS-232C port via a 9-pin D-sub male connector. It supports baud rates from 300 up to 115200 bps, selectable in standard increments, and handles both half-duplex and full-duplex communication — the full-duplex mode is what you need for a point-to-point link to a drive or HMI without toggling the line direction. Maximum transmission distance is 15 m, which is the RS-232C standard limit at 115200 bps — push the cable longer and you risk bit errors; keep it under 15 m and the link holds deterministic to the cycle.

Isolation — what it means for the control panel

The communication line is not insulated from the CPU module — that means the serial ground is referenced to the PLC logic common, not isolated by a digital isolator or optocoupler. In a panel with drives or inverters on the same serial link, this non-isolation means ground loops can inject common-mode noise into the CPU backplane if the cable shield is grounded at both ends. Best practice: ground the shield at one end only, or use an external isolated RS-232 converter if the run crosses a dirty cabinet boundary.

Active production — sourcing posture

No stock-holding claim — sourced per RFQ.

MPN
FX5-232-BD
