Mitsubishi Electric FX5-40SSC-S — PLCs (Programmable Logic Controllers)

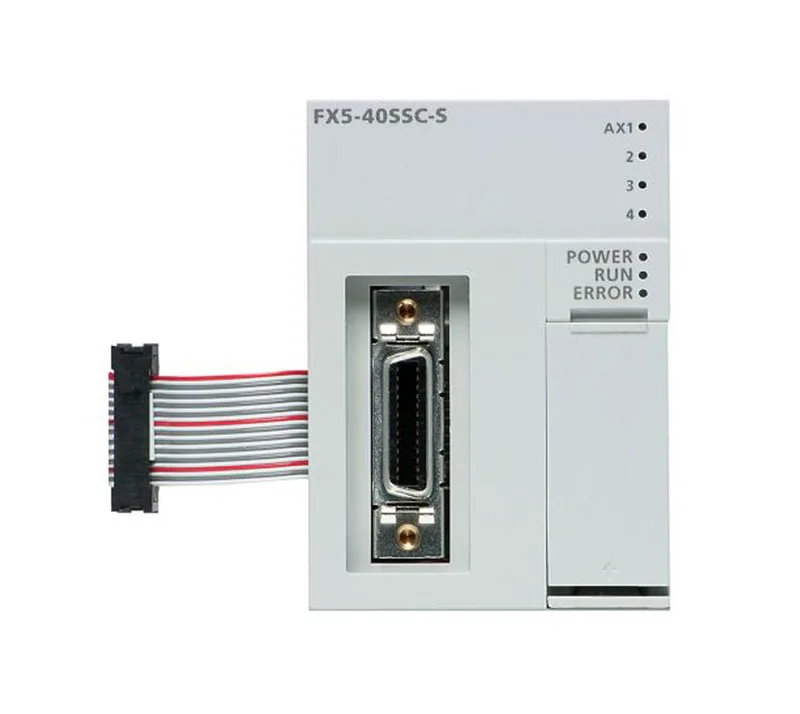

Mitsubishi FX5-40SSC-S Simple Motion Module, 4-Axis, 1.777 m

MPNFX5-40SSC-S

Mitsubishi MELSEC iQ-F Series, Simple Motion Module, FX5-40SSC-S, 4 axes control, 1.777 ms operation cycle, battery-less parameter backup.

$521.97 – $1,103.00Ref. price · indicative, final on quote
Mitsubishi Electric FX5-40SSC-S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX5-40SSC-S — Specifications
ParameterValue
BackupParameters, positioning data, and block start data can be saved on flash ROM (battery-less backup)
Control unitmm, inch, degree, pulse
Product typeSimple motion module
Control modesPTP (Point To Point) control, Trajectory control (both linear and arc), Speed control,Speed-position switching control, Position-speed switching control, Speed-torque control
Compensation functionBacklash compensation, Electronic gear, Near pass function
Interpolation functionLinear interpolation (Up to 4 axes), Circular interpolation (2 axes)
Number of positioning data600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works3 or a sequence program.)
Acceleration (deceleration process)Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Operation cycle (Operation cycle settings)1.777 ms
Number of control axes (Virtual servo amplifier axis included)Up to 4 axes

Product details

What the FX5-40SSC-S brings to your motion axis

The FX5-40SSC-S is a simple motion module for the MELSEC iQ-F PLC family, giving you PTP, trajectory (linear/arc), speed, and torque control across up to 4 axes — enough for a compact pick-and-place or rotary indexing station. The core operation cycle runs at 1.777 ms, which keeps the position loop tight enough for servo-based linear and circular interpolation on two axes (linear on up to four). It stores 600 positioning data sets per axis, with trapezoidal or S-curve acceleration/deceleration profiles you set in GX Works3 or directly in sequence logic. Backlash compensation and electronic gearing are built in, so you handle mechanical backlash and axis scaling without add-on blocks. A battery-less flash ROM backs up parameters, positioning data, and block start data — no battery to swap during PM cycles, and no corruption risk on power loss.

Frequently asked questions

How does the module save parameters without a battery?

Parameters, positioning data, and block start data are stored on flash ROM with battery-less backup. This eliminates the periodic battery-replacement task typical of older motion modules and keeps the data safe during power interruptions.
