The FX5-4AD: Conversion speed is 80 µs per channel, suitable for fast-closing control loops. Output terminals are photocoupler-isolated from the PLC side; note that there is no isolation between individual channels, so shared grounds between outputs need a wiring plan. The module draws 100 mA from the 5 V DC backplane and requires an external 24 V DC supply consuming 150 mA. The external supply must handle a momentary power outage up to 5 ms without dropping out.

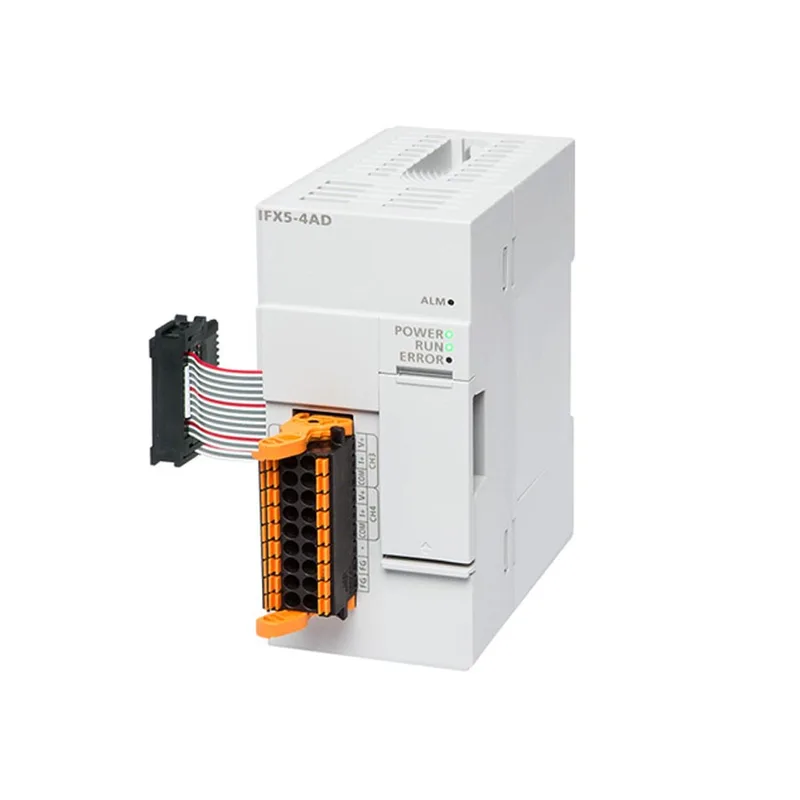

Mitsubishi FX5-4AD Multiple Input Module, 4-Ch Analog
MPNFX5-4AD
Mitsubishi FX5 series, Multiple Input Module, FX5-4AD, 4 analog output points, 80 µs/ch conversion speed, 5 V DC / 24 V DC supply.
$469.00 – $597.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Multiple Input Module |
| Conversion speed | 80 ?s/ch |
| Current consumption | 100 mA |
| Power supply voltage | 5 V DC |
| Number of output points | 4 points (4 channels) |
| Number of occupied i (O points) | 8 points |
| Between output terminal and PLC | Photocoupler |
| Between output terminal channels | Non-isolation |
| Allowable momentary power outage time | Operation continues when the instantaneous power failure is shorter than 5 ms. |
| External power supplyPower supply voltage | 24 V DC +20%, -15%Allowable momentary power outage time : Operation continues when the instantaneous power failure is shorter than 5 ms.Current consumption : 150 mA |
| Internal power supplyPower supply voltage | 5 V DCCurrent consumption : 100 mA |
| Isolation methodBetween output terminal and PLC | PhotocouplerBetween output terminal channels : Non-isolation |
| Performance specificationsNumber of output points | 4 points (4 channels)Conversion speed : 80 ?s/chIsolation methodBetween output terminal and PLC : PhotocouplerBetween output terminal channels : Non-isolationNumber of occupied I/O points : 8 points |
| Power supply SpecificationsExternal power supplyPower supply voltage | 24 V DC +20%, -15%Allowable momentary power outage time : Operation continues when the instantaneous power failure is shorter than 5 ms.Current consumption : 150 mAInternal power supplyPower supply voltage : 5 V DCCurrent consumption : 100 mA |
Product details
Frequently asked questions
What are the key specifications of the FX5-4AD?
It provides 4 analog output channels with an 80 µs/ch conversion speed. It occupies 8 I/O points. Power comes from the 5 V DC backplane (100 mA) and an external 24 V DC supply (150 mA). Output terminals are photocoupler-isolated from the PLC; channels are not isolated from each other.
How do I source the FX5-4AD?
The module is available to order against an RFQ. Estimated lead time is 1–10 working days after order placement.
MPN
FX5-4AD
