Mitsubishi Electric FX5-4AD-ADP — PLCs (Programmable Logic Controllers)

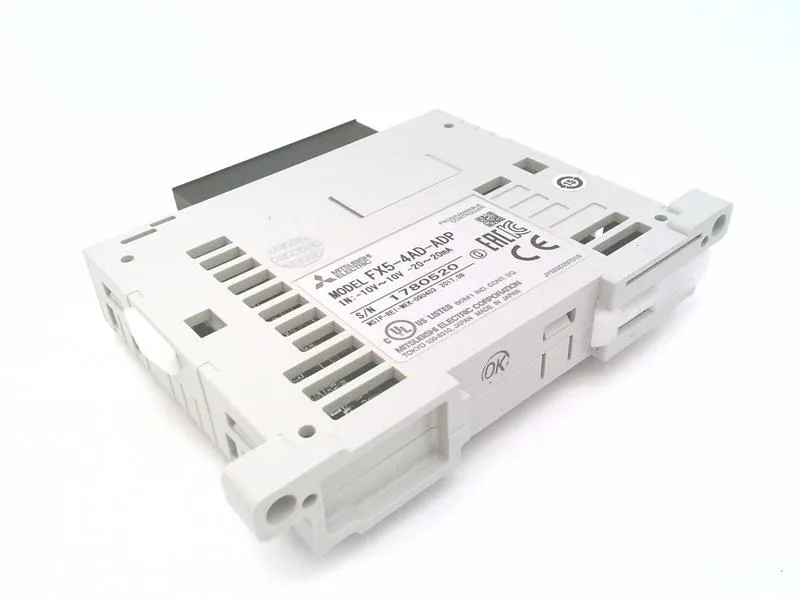

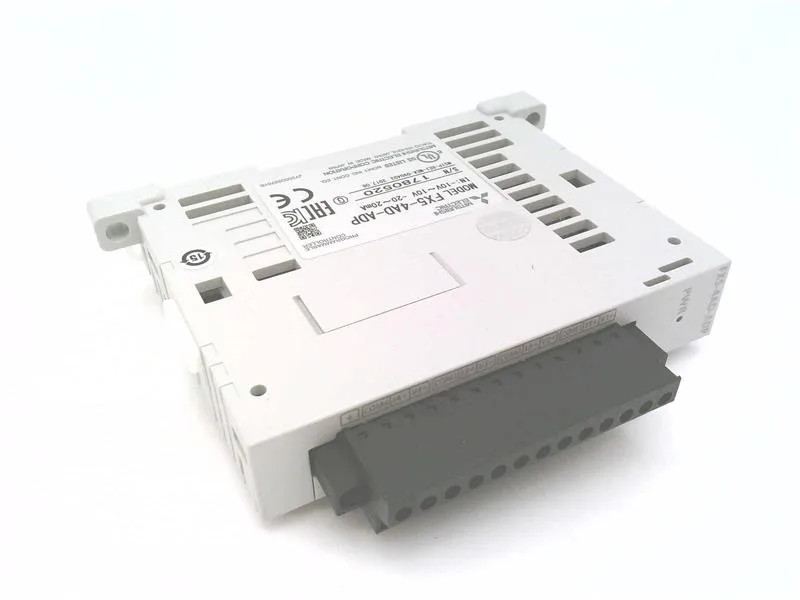

Mitsubishi FX5-4AD-ADP Analog Input Adapter, 4 ch

MPNFX5-4AD-ADP

Mitsubishi FX5 Series Analog Input Expansion Adapter, FX5-4AD-ADP, 4 channels, ±10 V/±20 mA, 14-bit resolution.

$191.00 – $490.03Ref. price · indicative, final on quote
Mitsubishi Electric FX5-4AD-ADP datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX5-4AD-ADP — Mechanical
ParameterValue
Weight0.15 Kg
FX5-4AD-ADP — Other specifications
ParameterValue
Product typeProgrammable Logic Controller
Analog input current-20 to +20 mA DC (input resistance 250 O)
Analog input voltage-10 to +10 V DC (input resistance 1 MO)
Digital output value14-bit binary value
Absolute maximum inputVoltage: ±15 V, Current: ±30 mA
Number of analog input points4 points (4 channels)
Number of occupied i (O points)0 point (This number is not related to the maximum number of I/O points of the PLC.)

Product details

The Mitsubishi FX5-4AD-ADP is an analog input expansion adapter for the FX5 PLC family, providing four differential channels configurable for either ±10 V DC (1 MΩ input resistance) or ±20 mA DC (250 Ω burden). Each channel returns a 14-bit binary value to the CPU, with absolute maximum inputs of ±15 V and ±30 mA before damage. The adapter occupies zero I/O points on the PLC bus — it draws its power and data from the expansion connector without eating into the system's maximum I/O count.

Because the module claims no I/O points on the PLC's maximum limit (zero occupied points), it can be added even to a fully allocated rack without forcing an I/O count upgrade. This is a practical detail for panel builders who have already filled the CPU's I/O budget with discrete and other special-function modules.

Frequently asked questions

Does the FX5-4AD-ADP consume any I/O points on the PLC?

No, it occupies zero I/O points. The adapter connects via the expansion bus and does not reduce the maximum I/O count of the FX5 CPU.

Can the FX5-4AD-ADP replace the FX5-232ADP in a panel?

No — the FX5-232ADP is a serial communication adapter (RS-232C), not an analog input module. They serve different functions and are not electrically or functionally interchangeable.
