DC input module for MELSEC iQ-F series

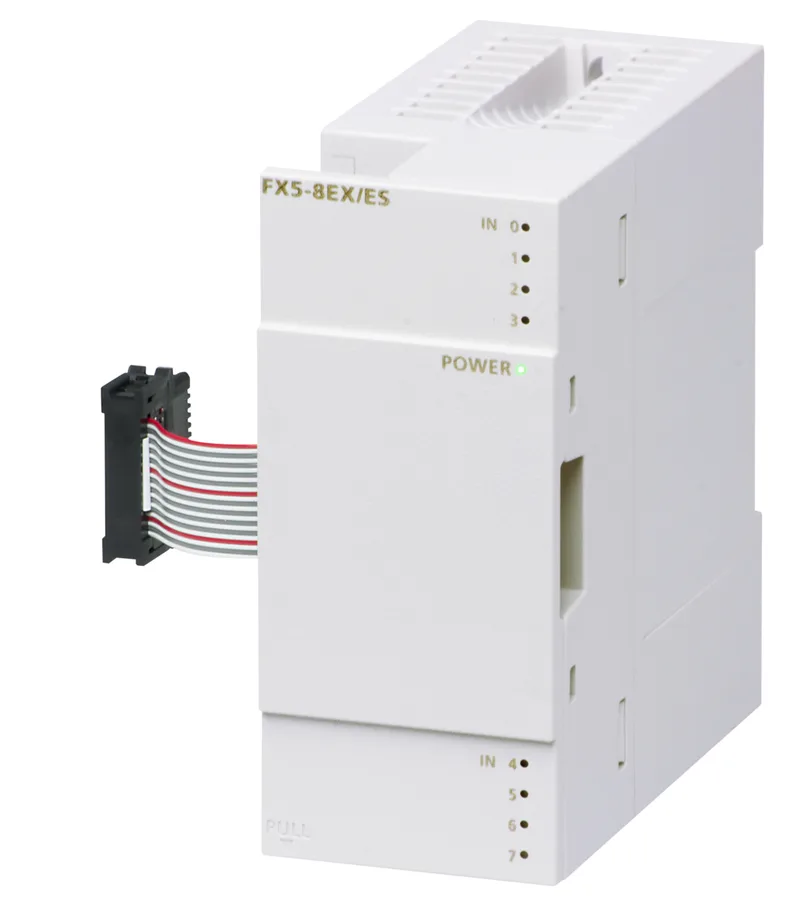

FX5-8EX/ES is an 8-point DC input module for the Mitsubishi MELSEC iQ-F series, accepting 24 V DC sink/source signals through a screw terminal block. It occupies 8 I/O points on the base unit, matching the standard increment for small digital input groups.
Mounting and wiring
Mechanical footprint is 90 mm tall, 83 mm deep, and 40 mm wide, matching the standard iQ-F slim profile. The screw terminal block accepts field wiring directly; no additional adaptor needed. Powered at 24 V DC from the base unit bus. No separate power supply required for the input circuit.
