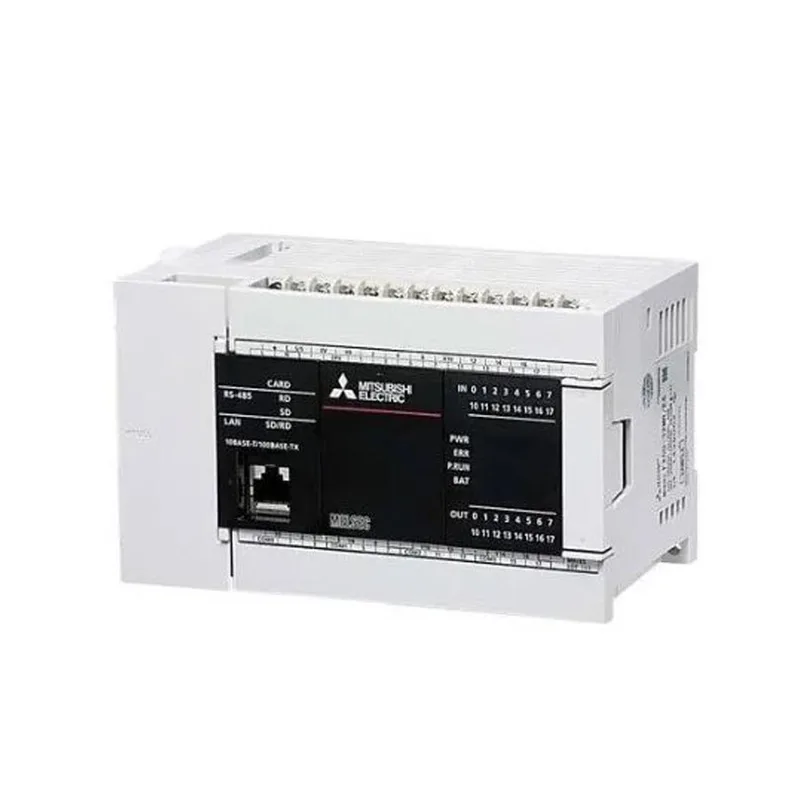

Mitsubishi Electric FX5U-64MT/DS — PLCs (Programmable Logic Controllers)

Mitsubishi FX5U-64MT/DS CPU Module, 64 I/O, Transistor Outpu

MPNFX5U-64MT/DS

Mitsubishi MELSEC iQ-F series, CPU Module, FX5U-64MT/DS, 64 I/O points, 32 input 24V DC (sink), 32 output transistor, screw terminal block.

$1,021.00 – $1,755.06Ref. price · indicative, final on quote
Mitsubishi Electric FX5U-64MT/DS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX5U-64MT/DS — Specifications
ParameterValue
Input type24 V DC (sink)
Output signalTransistor
Product typeCPU Module
Total no.of points64 points
5 v DC power supply1100 mA
No. of input points32 points
24 v DC power supply740 mA
No. of output points32 points
Input (output connection type)Screw terminal block
Power supply capacity5 v DC power supply1100 mA24 V DC power supply : 740 mA
No. of input (output pointsTotal no.of points)64 pointsNo. of input points : 32 pointsNo. of output points : 32 points

Product details

Integrator's note on the FX5U-64MT/DS

The Mitsubishi FX5U-64MT/DS is a 64-point CPU module for the MELSEC iQ-F series, configured with 32 sink-type DC inputs at 24 V and 32 transistor outputs, all terminated through a screw terminal block. It draws 1100 mA from the 5 V rail and 740 mA from the 24 V supply — numbers you'll need to budget against your backplane capacity. The screw terminal connection means field wiring runs direct without needing a separate connector header, which accelerates panel assembly and simplifies future service swaps.

Frequently asked questions

What is the input type on this module?

24 V DC (sink) per point, 32 inputs.

What is the output type?

Transistor (sink) output, 32 points.

Will the FX5U-64MT/DS drop into a panel built for an FX5UC-64MT/D?

No — the connection type (screw terminal vs connector) is different, and the DS module draws more current on both the 5 V and 24 V rails. Panel wiring would need to be re-terminated and the power supply verified.

MPN
FX5U-64MT/DS
