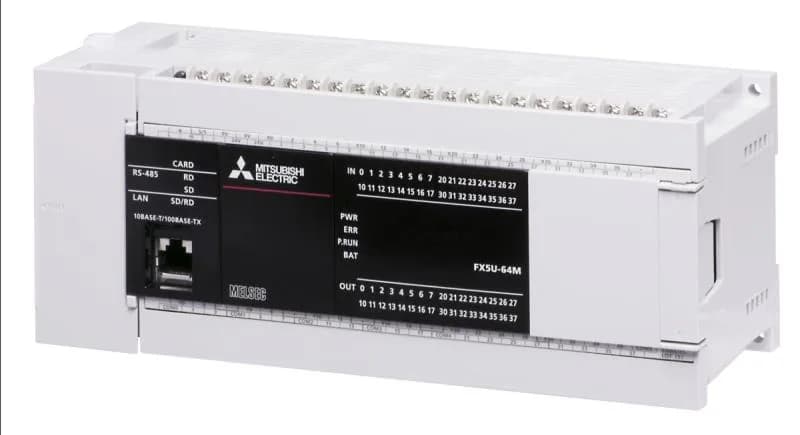

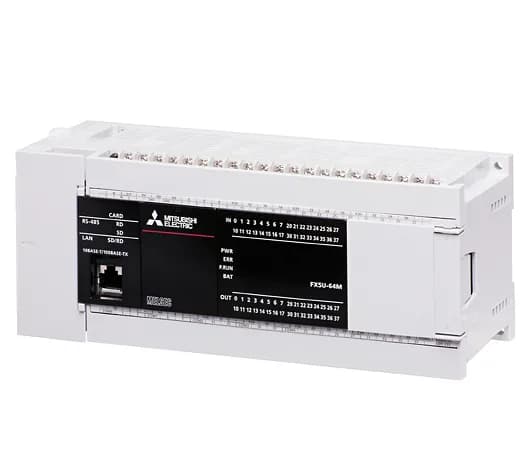

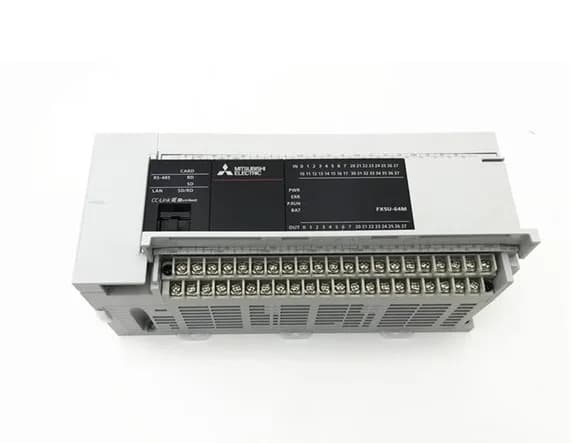

Mitsubishi Electric FX5U-64MT/ES

Mitsubishi FX5U-64MT/ES PLC, 32 I/O, Transistor Sink

MPNFX5U-64MT/ES

Mitsubishi FX5U CPU Module, FX5U-64MT/ES, 32 inputs 24 V DC, 32 outputs transistor sink, 100-240 V AC power supply.

$246.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

FX5U-64MT/ES specifications
ParameterValue
Product typeFX5U CPU Modules
Power supply100 to 240 V AC 50/60 Hz
Weight1 Kg
Shipping weight2 Kg
Input32 points / 24 V DC Sink/source
Output32 points / Transistor/sink
Estimated lead time1 - 10 Working Days

Product details

Mitsubishi FX5U-64MT/ES CPU module with 32 input points (24 V DC sink/source) and 32 transistor sink outputs, powered by 100–240 V AC. Sink output connects the load between the output point and the DC common. This matters when swapping into a panel wired for source outputs — the wiring polarity reverses.

Sink vs source — the one difference that rewires your panel

The closest functional twin is the FX5U-64MT/ESS. Both have 32 inputs and 32 outputs, same power supply, same frame. The /ESS uses transistor source outputs instead of sink. If your panel uses source outputs, the /ES will require re-terminating output commons and verifying diode clamping.

Frequently asked questions

What are the input and output specifications of this module?

It has 32 inputs rated for 24 V DC, sink/source wiring, and 32 transistor sink outputs.

Can I use the FX5U-64MT/ES as a direct replacement for the FX5U-64MT/ESS?

Not without rewiring the output side. The /ES has sink outputs, the /ESS has source outputs. The inputs are functionally identical, but the output commons and polarity are reversed. Verify your panel's output wiring before swapping.

What is the closest functional alternative to this CPU?

The Mitsubishi FX5U-64MT/ESS is electrically identical except for output sourcing vs sinking. Choose based on your field wiring preference.

MPN
FX5U-64MT/ES
