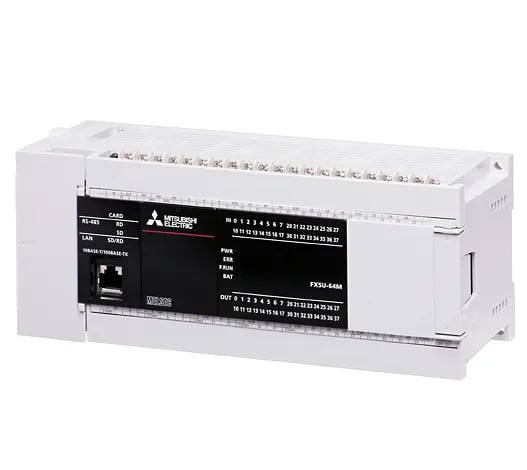

Mitsubishi Electric FX5U-64MT/ESS

Mitsubishi FX5U-64MT/ESS PLC CPU, 64 I/O, transistor source

MPNFX5U-64MT/ESS

Mitsubishi MELSEC iQ-F FX5U CPU module, 64 I/O, 32-point sink/source DC input, 32-point transistor source output, 100-240 VAC.

$869.95 – $1,655.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

FX5U-64MT/ESS specifications
ParameterValue
Product typeFX5U CPU Modules
Power supply100 to 240 V AC 50/60 Hz
Weight1 Kg
Shipping weight2 Kg
Input32 points, 24 V DC, Sink/source
Output32 points, Transistor/source
Estimated lead timeUsually ships in 1 - 10 working days.

Product details

The Mitsubishi FX5U-64MT/ESS is a MELSEC iQ-F CPU module with 32 inputs (24 V DC sink/source) and 32 transistor source outputs. This is a current-production part.

How it compares: source vs. sink output

The closest sibling is the FX5U-64MT/ES, which shares the same 32-point DC input card and AC power supply but uses transistor sink outputs instead of source. The /ESS suffix here drives sourcing outputs—common for positive-logic load wiring in many Asian and European panels. If your existing field wiring expects a sourcing output module (current flows from output to load), the /MT/ESS drops in with no rewiring. If the current build uses sink outputs, you need the /ES variant.

Frequently asked questions

What is the difference between FX5U-64MT/ESS and FX5U-64MT/ES?

Both have 32 inputs and 32 transistor outputs, but the /ESS uses source outputs while the /ES uses sink outputs. The input style and power supply are identical.

What is the input specification?

32 points, 24 V DC, configurable as sink or source.

What is the output specification?

32 points, transistor, source type.

MPN
FX5U-64MT/ESS
