Mitsubishi Electric GT1050-QBBD-C — HMI Operator Interfaces

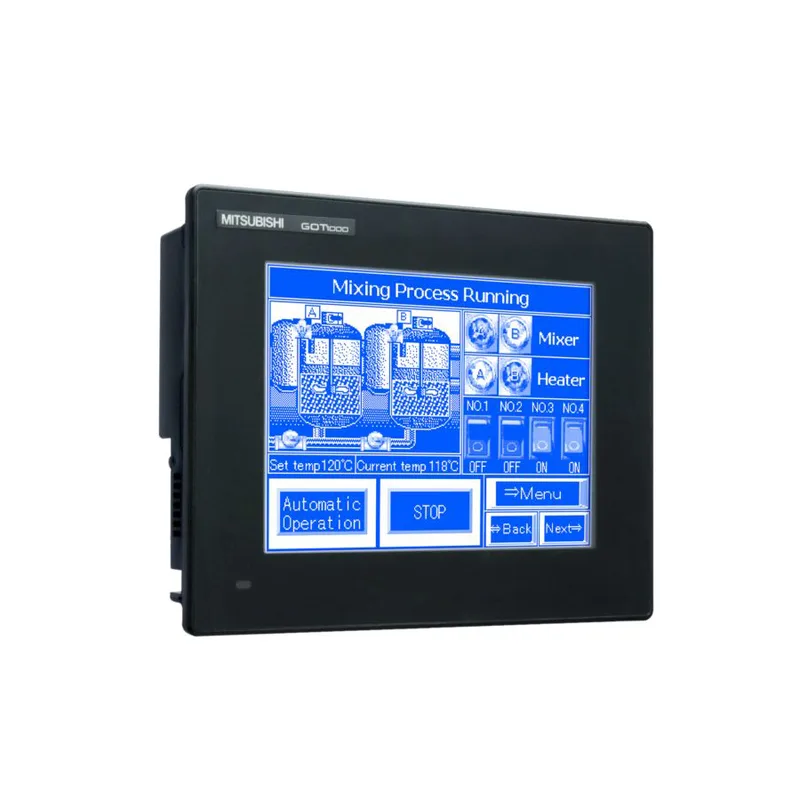

Mitsubishi GT1050-QBBD-C GOT1000 HMI, 5.7" Monochrome

MPNGT1050-QBBD-C

Mitsubishi Electric GOT1000 series, GT1050-QBBD-C, 5.7" STN monochrome HMI, 320x240 resolution, CCFL backlight, 0.7 kg.

$695.00 – $1,586.29Ref. price · indicative, final on quote
Mitsubishi Electric GT1050-QBBD-C datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

GT1050-QBBD-C — Mechanical
ParameterValue
Weight0.7 Kg
GT1050-QBBD-C — Other specifications
ParameterValue
BacklightCold cathode fluorescent tube (irreplaceable by a user) backlight shutoff detection function is included. Backlight off/screen saving time can be set.
Resolution320 240 dots (Horizontal format)
Screen size5.7"
Touch panelMitsubishi Electric
SizeW115(4.53) H86(3.39) [mm](inch) (Horizontal format)
Product typeGOT1000 HMI
Display colorMonochrome (white/blue), 16 scales
Dimensions (LxWxH)5.6cm x 16.4cm x 13.5cm (Excluding mounting fixtures) (Horizontal format)
Display section typeSTN monochrome (white/blue) liquid crystal
Number of touch keysMaximum 50 keys/screen (Matrix resistive film touch panel)

Product details

Display and backlight constraints

The GT1050-QBBD-C is a 5.7" STN monochrome (white/blue, 16 scales) HMI from the Mitsubishi GOT1000 family. Resolution is 320 x 240 dots in horizontal format. The backlight is a cold cathode fluorescent tube (CCFL) and is not user-replaceable — when it dims or fails, the unit is a service exchange. A backlight shutoff detection function is included, and the off/screen-saving timer is configurable. This matters for a line-down spare: if your panel runs 24/7, the CCFL has a finite life, and there is no field-replacement bulb.

Frequently asked questions

What is the backlight type on GT1050-QBBD-C?

The backlight is a cold cathode fluorescent tube (CCFL) that is not user-replaceable. A backlight shutoff detection function is included, and the off/screen-saving timer is configurable.
