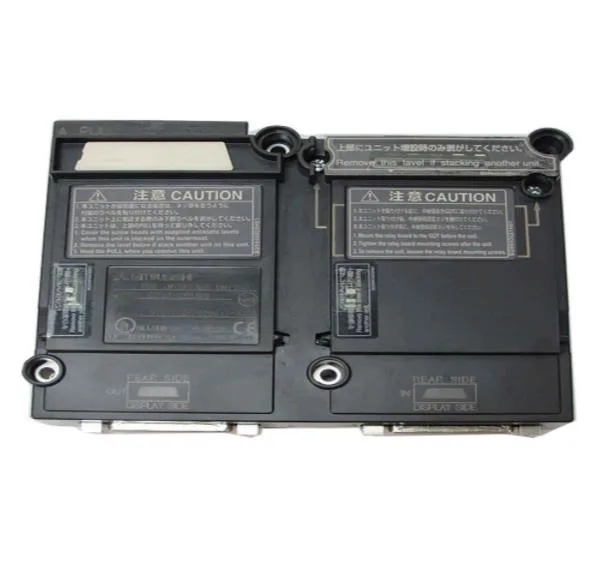

Mitsubishi MELSEC-Q series, Bus Connection Unit, GT15-QBUS2, 16 I/O points, 0.44 A at 5 VDC.
| Parameter | Value |
|---|---|
| Product type | Bus Connection Unit |
| I (O occupied points) | 16 points (I/O assignment;16 intelligent points |
| Channels | 1 |
| Internal consumed current (DC5V) | 0.44A |
The GT15-QBUS2 is a bus connection unit for the Mitsubishi MELSEC-Q series, used to extend the I/O bus to remote or adjacent racks. It occupies 16 I/O points and draws 0.44 A from the 5 V backplane supply.
The 16-point I/O assignment supports both intelligent and standard modules. Verify the backplane current budget — the 0.44 A draw at 5 VDC is within typical MELSEC-Q power supply capacity but should be summed across all bus units on the same rail.
We source and quote the GT15-QBUS2 to order against an RFQ. Contact us for current availability and pricing.
It is a bus connection unit for MELSEC-Q, occupying 16 I/O points and drawing 0.44 A from the 5 V backplane.
