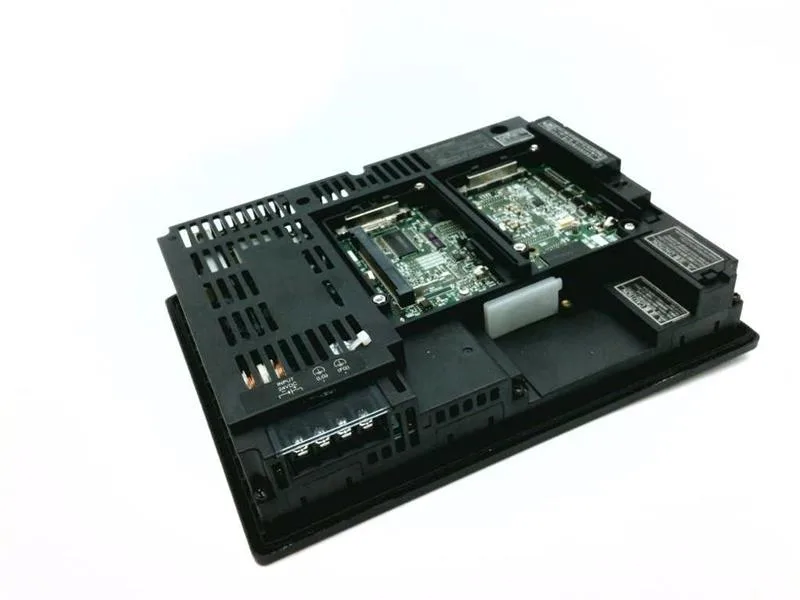

Mitsubishi Electric GT1562-VNBD
MPNGT1562-VNBD
MITSUBISHI GT1562-VNBD TOUCH SCREEN HMI
$771.79Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | TOUCH SCREEN |
| Type of product | Touch Screen |
| Current | 1710mA |
| Power | consumption |
| Power supply | 24VDC (24 Volts Direct Current) |
| Outside the enclosure | IP67 |
| Built-in interface | RS-232 |
| Applicable wire size | 0.75 to 2 mm² |
| Applicable tightening torque | 0.5 to 0.8 N•m |
| Weight | 2,5 kg |
| Color support | 16 colors |
| Display color | 16 color |
All specifications
| Parameter | Value |
|---|---|
| The external dimensions (W x h x d) | 241 × 190 × 52 mm. |
| Dimensions | 8.4 inches |
| Model | GT1562-VNBD |
| Memory | Built-in Flash Memory 5 MB |
| Display | TFT (Thin-Film Transistor) color liquid crystal display |
| Condition | New |
| Shelf no. | 241232 |
| Resolution | 640 × 480 pixels |
| Consumption | 41W |
| Size | 171 mm (Width) × 128 mm (Height) |
| Manufacturer | Mitsubishi |
| Display character | 16-dot standard font: 40 characters × 30 lines |
| Insulation resistance | 10MΩ or more |
| Life (Number of write cycles) | 100,000 times |
MPN
GT1562-VNBD
