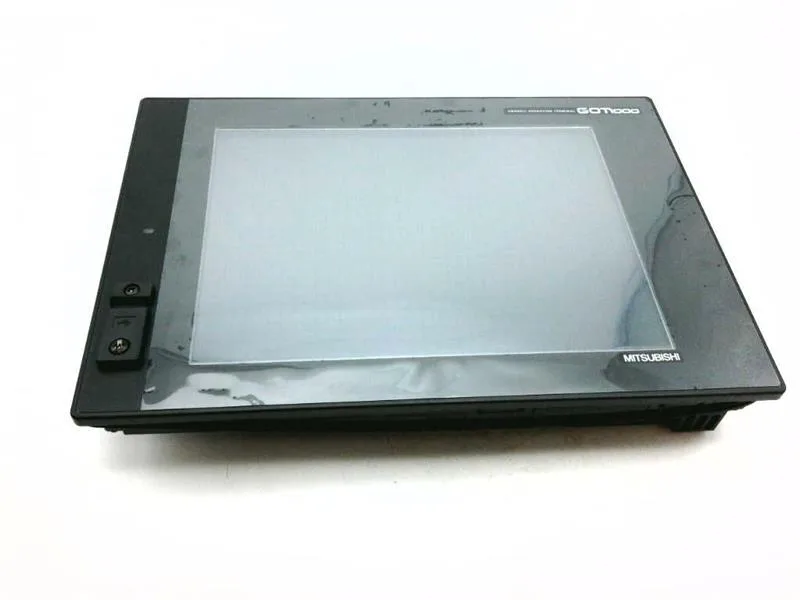

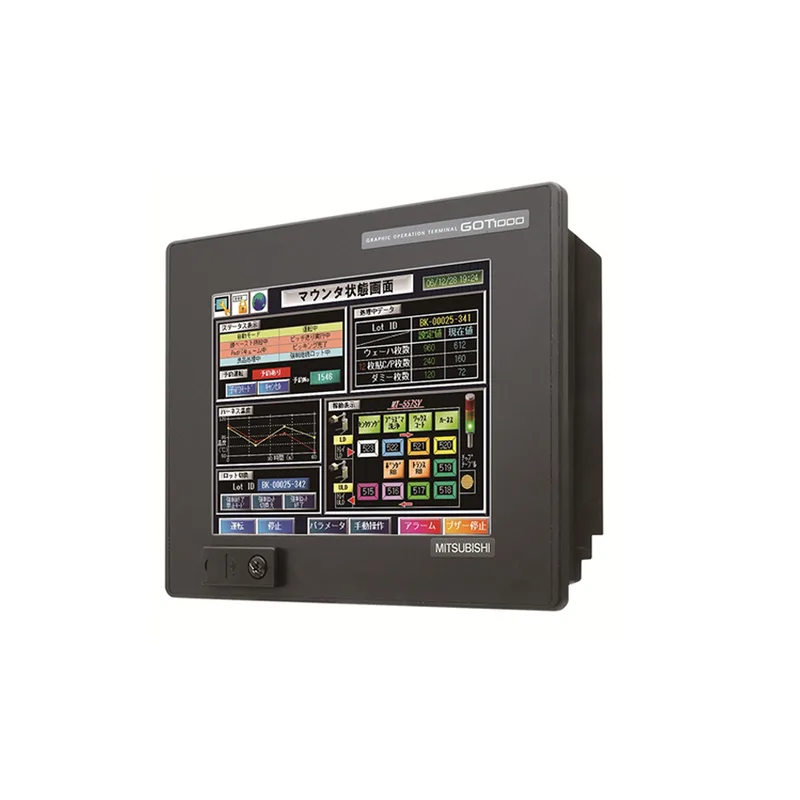

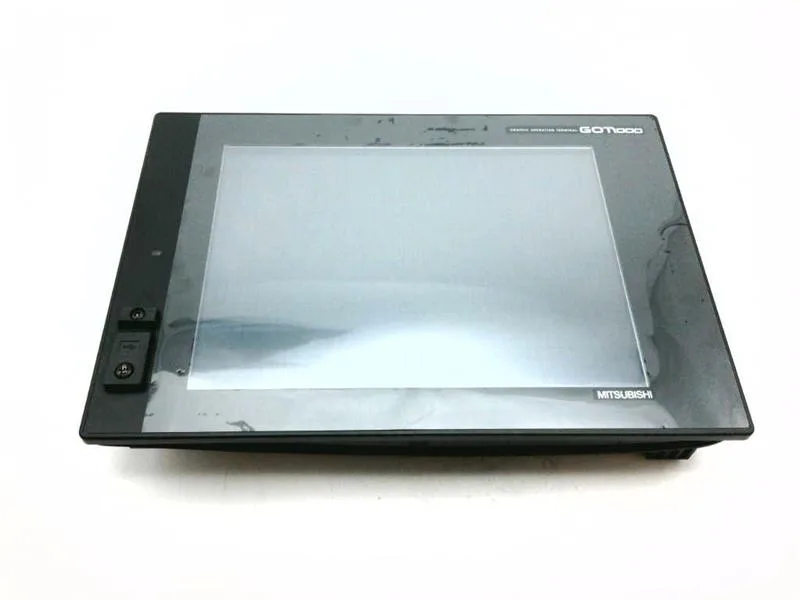

Mitsubishi GOT1000 series Graphic Operation Terminal, GT1572-VNBA, 10.4" TFT color LCD, 640 x 480 VGA resolution, AC100-240V input, 28W.
| Parameter | Value |
|---|---|
| Display technology | TFT color liquid crystal |
| Parameter | Value |
|---|---|
| Resolution | 640 x 480 dots |
| Screen size | 10.4" |
| Size | 211(8.31)(W) × 158(6.22)(H) [mm](inch) |
| Product type | Graphic Operation Terminal |
| Display color | 16 color |
| Inrush current | 40A or less (4ms)(maximum load) |
| Input frequency | 50/60Hz ± 5% |
| Power consumption | 28W or less |
| Intensity adjustment | 4-level adjustment |
| Input max. apparent power | 110VA (maximum load) |
| Input power supply voltage | AC100 to 240V(+10%, -15%) |
The GT1572-VNBA is a 10.4" TFT color liquid crystal graphic operation terminal, 640 x 480 dots resolution. 16-color display. Input power supply voltage is AC100 to 240V (+10%, -15%), 50/60 Hz ± 5%; consumption 28W or less. Inrush current 40A or less for 4 ms at maximum load.
Maximum apparent power is 110 VA at maximum load. Inrush current 40A or less for 4 ms. Power consumption is 28W or less.
The GT1572-VNBA is a TFT color liquid crystal graphic operation terminal with a resolution of 640 x 480 dots (VGA). The display is 10.4 inches diagonal and supports 16 colors.
