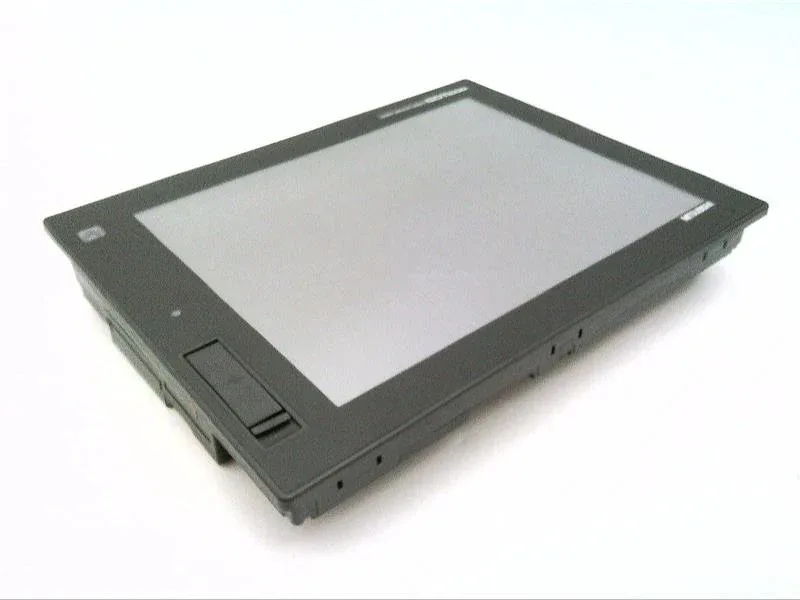

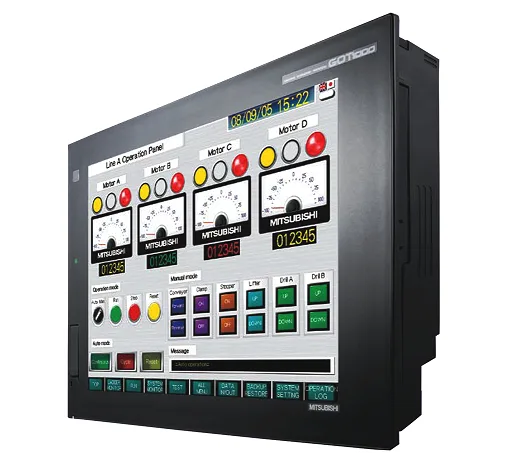

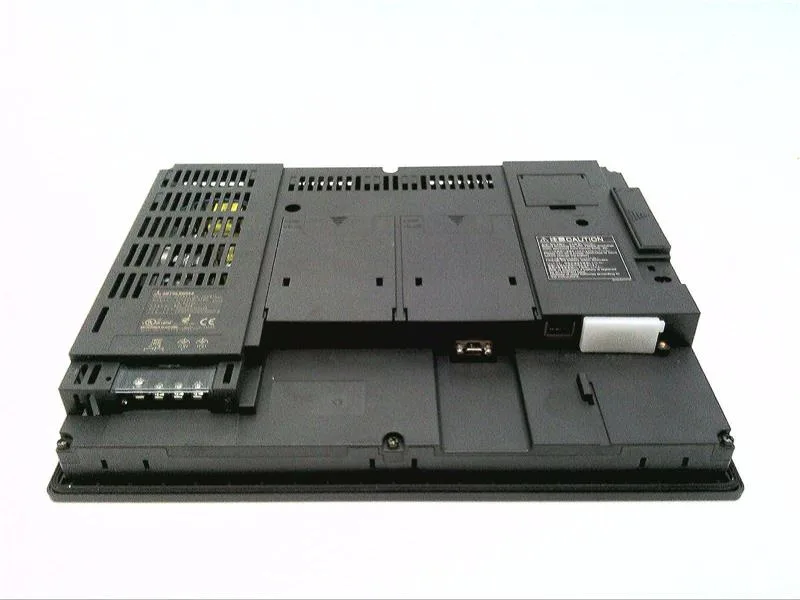

Mitsubishi Electric GT1685M-STBD
MPNGT1685M-STBD
Mitsubishi Interface GOT1000
$2,709.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Model type | 65,536 colors |
| Power type | 24VDC |
| Dedicated type | Multimedia compliant |
| Panel color type | Black |
| Display (1*) type | TFT color LCD (high-brightness, wide viewing angle) |
| Display device type | TFT color (High intensity, Wide angle view) |
| Touch panel (*6) type | Analog resistive type |
| Withstand voltage | 500VDC for 1 minute between power supply terminal and ground |
| Input power supply voltage | 24VDC (+25%, -20%) |
| Inrush current | 12A or less (55ms, at max. load) |
| Power consumption | 40W or less |
| Power consumption w (Backlight off) | 26W or less |
All specifications+45 ▾
| Parameter | Value |
|---|---|
| Built-in interface RS-232 | RS-232, 1ch. Transmission speed: 115200/57600/38400/19200/9600/4800 bps; Connector shape: D-sub 9-pin (male); Application: Communication with connected devices, connection to personal computer; (project data upload/download, OS installation, FA transparent function) |
| Weight (Excluding mounting brackets) | 2.7 |
| Clamp terminal | Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A |
| Applicable wire size | 0.75 to 2 [mm²] |
| Applicable software package | GT Works3 Version1.17T or later |
| Tightening torque (Terminal block’s terminal screws) | 0.5 to 0.8 [N·m] |
| Shipping weight | 8 Kg |
| External dimensions (w x h x d) | 316 x 242 x 52 |
| USB | USB (full speed: 12 Mbps), host 1ch.; Connector shape: TYPE-AApplication: Data transfer, data storage |
| Life | Approx. 5 years (operating ambient temperature: 25°C) |
| CF card | Compact flash slot, 1ch. Connector shape: TYPE I Application: Data transfer and storage, GOT start-up |
| Ethernet | Data transfer method: 100BASE-TX, 1 ch.; Connector shape: RJ-45 (modular jack); Application: Communication with a controller, using the gateway function, or connection to personal computer; (project data upload/download, OS installation, MES interface function) |
| Life (*3) | Approx. 50,000 hours or more (Time for display intensity reaches 50% at operating ambient temperature of 25°C) |
| RS-422/485 | RS-422/485, 1ch. Transmission speed: 115200/57600/38400/19200/9600/4800 bps; Connector shape: 14-pin (female); Application: Communication with a controller |
| Memory size | 15MB |
| Screen size | 15" : 12.1" |
| Manufacturer | Mitsubishi Electric |
| Model number | GT1685M-STBD |
| Buzzer output | Single tone (tone length adjustable) |
| Backed up data | Clock data and maintenance time notification data, system log data |
| Extension unit | 2ch for communication unit/optional unit installation |
| Memory c drive | 15MB built-in flash memory (for saving project data, extended function OS/optional function OS) |
| Battery battery | GT15-BAT type lithium battery (optional) |
| Detection range | Right/left/up/down: 70° |
| Key size | Min. 2 x 2 (per key) |
| View angle (*2) | Right/left: 80°, Up: 60°, Down: 80° |
| Noise resistance | Noise voltage 500Vp-p, noise width 1µs by noise simulator with noise frequency 25 to 60Hz |
| Intensity (cd/m2) | 470 |
| Resolution | 800 x 600 SVGA |
| Backlight backlight | Cold-cathode fluorescent tube (replaceable), with backlight OFF detection function. Backlight off time and screen save time can be set. |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Intensity adjustment | 8-step adjustment |
| Detection temperature | Temperature difference between human body and ambient air: 4°C or higher |
| Insulation resistance | 10MO or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
| Life (No. of writings) | 100,000 times |
| Display size (w x h) | 246 x 184.5 |
| Optional function board | 1ch for optional function board installation |
| Panel cutout (w x h) | 302 x 228 |
| Protective construction | Outside the enclosure: IP67 Inside the enclosure: IP2X (*4, *5) |
| Screen Size(Resolution) | 800 x 600(SVGA) |
| Detection delay time | 0 to 4 |
| No. of simultaneous touch pts. | Simultaneous touch prohibited (1 point only) |
| Number of displayed characters | 16-dot standard font: 50 chars. x 37 lines (2-byte) 12-dot standard font: 66 chars. x 50 lines (2-byte) |
| Permissible instant. failure time | Within 10ms |
| Human sensor detection distance | 1 |
