Mitsubishi Electric GT2105-QMBDS

Mitsubishi Electric GT2105-QMBDS HMI, 5.7" Monochrome, IP67F

MPN GT2105-QMBDS

Mitsubishi Electric GOT2000 Series GT21 model HMI, 5.7-inch monochrome TFT display, 320x240 resolution, IP67F, 24 VDC, USB/RS-232/RS-422-485, SD slot.

$704.00 – $1,567.37 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

GT2105-QMBDS specifications
ParameterValue
SeriesGOT2000 SERIES
Product typeGT21 MODEL
IP ratingIP67
Depth56 mm
Width164 mm
Height135 mm
Weight0.7 kg
Size5.7 in

Product details

What this HMI brings to a washdown line

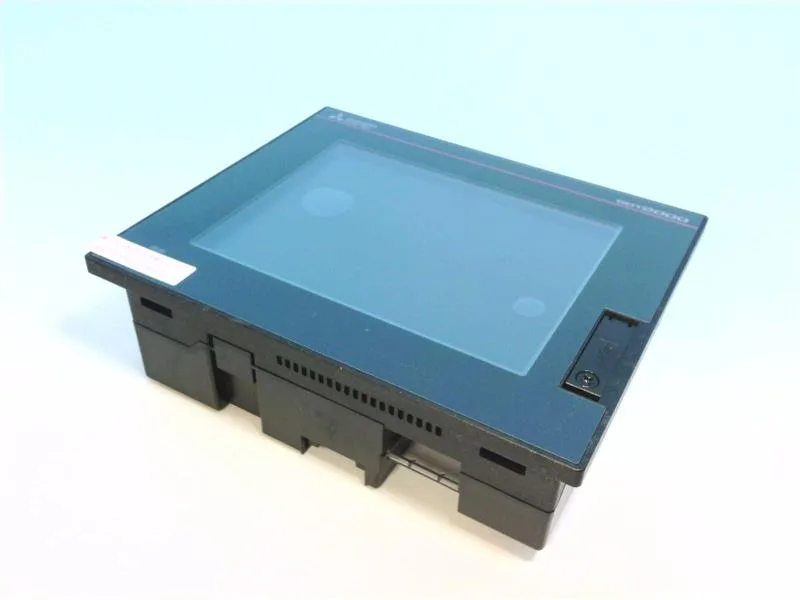

The GT2105-QMBDS is a 5.7-inch monochrome TFT HMI from the Mitsubishi GOT2000 series, built for environments where a color screen would be overkill and a standard IP65 panel would fail. The IP67F rating on the front face means it handles high-pressure washdown — food processing, chemical dosing, or any line where operators hose down the panel at shift end. Resolution is 320x240 pixels, which is adequate for numeric displays, alarm lists, and simple trend bars. The monochrome TFT gives better contrast in direct sunlight than many color panels, and the 9 MB internal memory holds a reasonable screen set for a single machine or a small process skid.

Connectivity and compliance at a glance

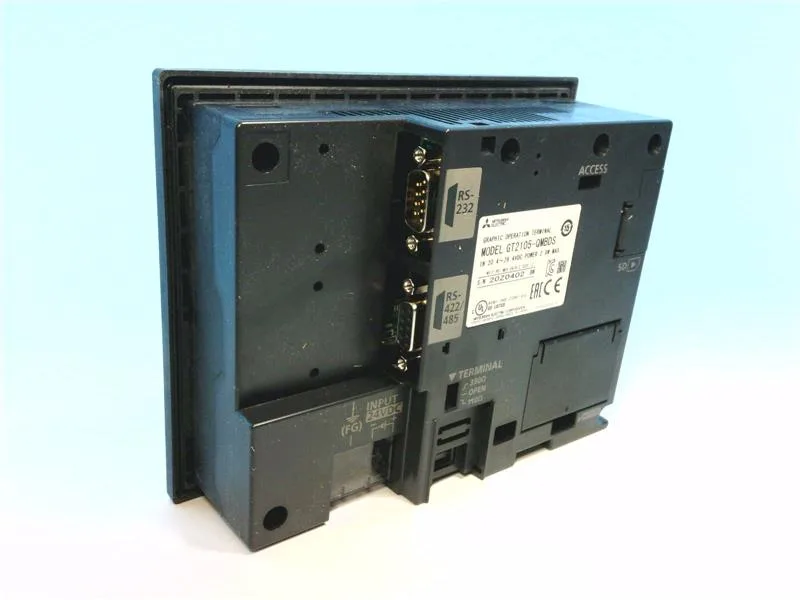

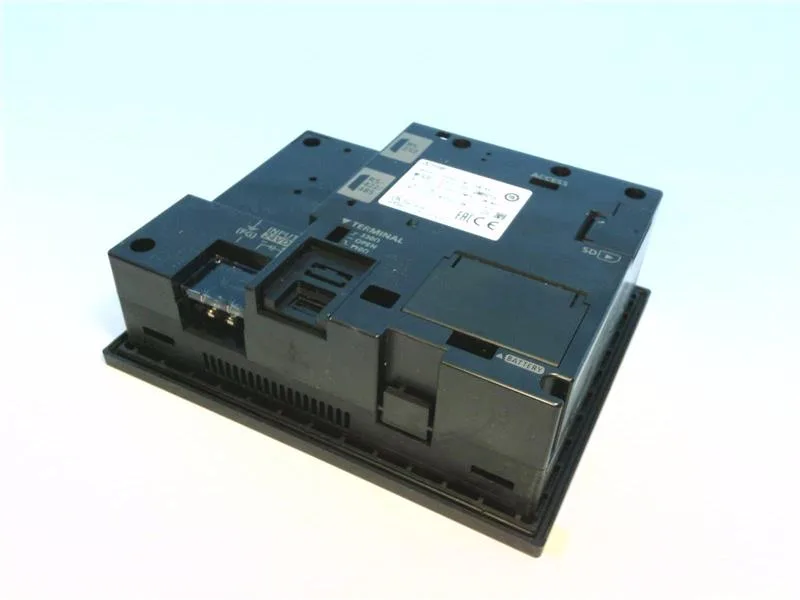

One USB port for project download and data transfer, one RS-232 and one RS-422/485 serial port for PLC or instrument communication. The SD card slot supports data logging, recipe transfer, and firmware updates without a laptop on the floor. CE, UKCA, EAC, and UL/cUL certifications are all listed — this unit ships into EU, UK, Eurasian Customs, and North American installations without a separate approval chase. RoHS and WEEE (B2B) compliance covers the environmental documentation a compliance manager will want on file.

Production status and sourcing posture

Sourced to order against your BOM quantity. Lead time is typically 1–10 working days from order placement.

MPN
GT2105-QMBDS
