The GT2506HS-VTBD: The operating ambient temperature range is 0°C to 40°C, which covers most indoor production-floor environments but not unheated warehouses or freezer lines — if the HMI sits in a cold staging area between runs, the storage range of -20°C to 60°C handles that, but it must reach 0°C before power-up. The operating humidity spec of 10% to 90% RH non-condensing means it tolerates washdown mist as long as moisture doesn't bead on the touch surface; it is not rated for direct spray or submersion. The power LED uses two colors (blue and orange) — blue for normal run, orange likely for alarm or communication fault, giving a quick status check at a glance without needing to wake the screen.

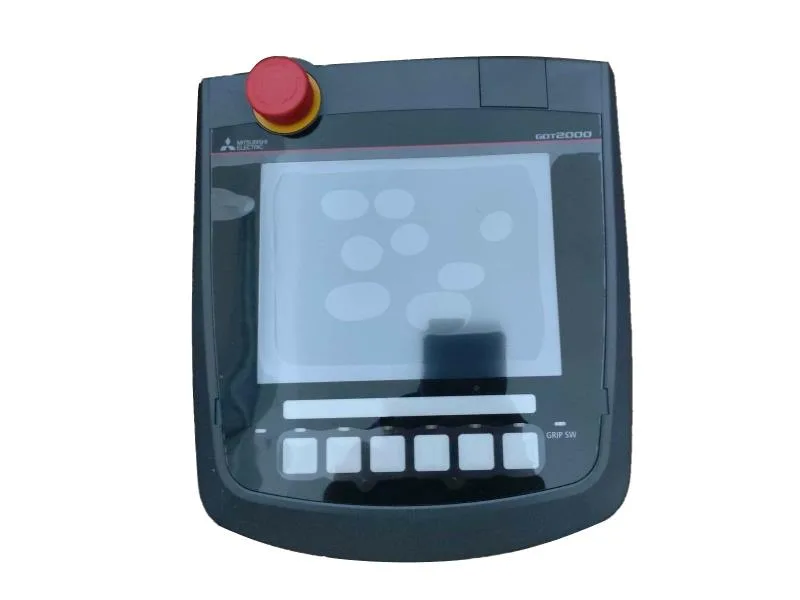

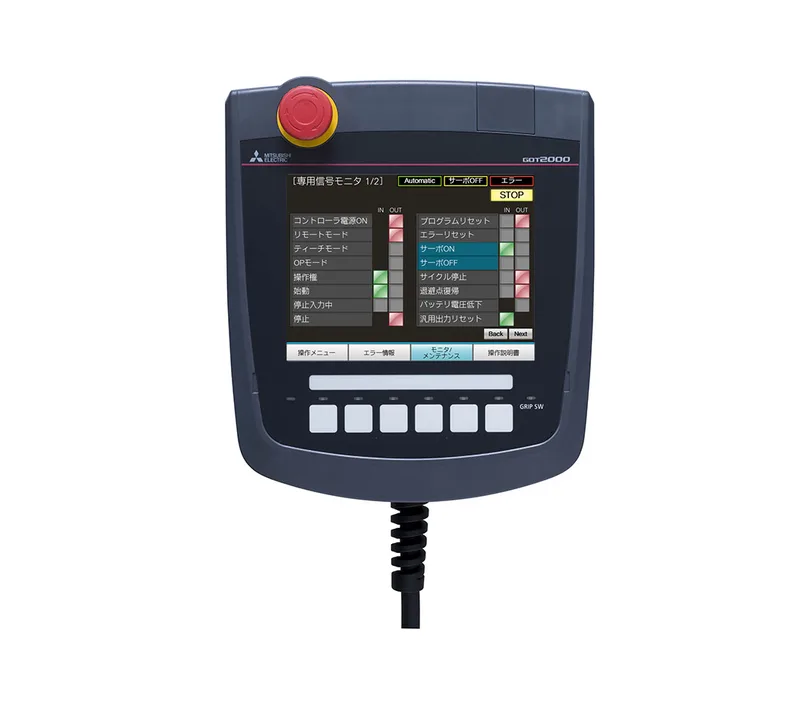

Mitsubishi GT2506HS-VTBD Handy GOT2000 HMI, 6.5" TFT
MPNGT2506HS-VTBD
Mitsubishi GT25 Handy GOT2000 Series, GT2506HS-VTBD, 6.5" TFT color LCD, VGA 640×480, analog resistive touch, 1.2 kg main unit.
$4,533.00 – $5,265.19Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 1.2 Kg (GOT main unit only) |
| Parameter | Value |
|---|---|
| Power LED | 2 colors (blue and orange) |
| Screen size | 6.5" |
| Touch panel | Type Analog resistive film |
| Size | 132.5(5.22) (W) × 99.4(3.91) (H) mm(inch) |
| Product type | GT25 Handy GOT2000 Series |
| Display device | TFT color LCD |
| Resolution VGA | 640 × 480 dots |
| External dimensions | 201(7.91) (W) × 230(9.06) (H) × 97(3.82) (D) mm(inch) (excluding projections such as the emergency stop switch) |
| Storage ambient temperature | -20°C to 60°C |
| Operating ambient temperature | 0°C to 40°C |
| Operating (Storage ambient humidity) | 10% RH to 90% RH, non-condensing |
Product details
Frequently asked questions
What is the screen size and resolution?
The display is 6.5" TFT color LCD with VGA resolution of 640 × 480 dots. The active display area measures 132.5 mm × 99.4 mm.
What type of touch panel does it use?
It uses an analog resistive film touch panel, which responds to pressure from a gloved finger or stylus — common for industrial environments where capacitive touch would be unreliable.
What is the operating temperature range?
The operating ambient temperature is 0°C to 40°C. Storage temperature extends from -20°C to 60°C.
How do I source the GT2506HS-VTBD?
This is a current-production part sourced to order. Submit an RFQ for pricing and availability; no surplus or broker channel is needed.
