The 10.4" screen at VGA (640 × 480) resolution is a workhorse size for HMI applications — large enough to display a process overview or multiple data trends without scrolling, but compact enough to fit a standard 10-inch panel cutout. The TFT color display provides good contrast for factory-floor lighting conditions. Power supply tolerance is 24 VDC (+25%, -20%). Permissible instantaneous failure time is within 10 ms. Withstand voltage is 350 VAC for one minute between the power supply terminal and ground, with insulation resistance of 10 MΩ or higher at 500 VDC. This gives you a solid margin for insulation testing during panel commissioning without worrying about dielectric breakdown on the HMI power input. Noise resistance is rated at 500 Vp-p with 1 µs pulse width at 25 to 60 Hz — this is the standard IEC noise immunity level for industrial HMIs. It will tolerate the switching noise from nearby contactors and VFDs inside the same panel, provided basic wiring separation is observed.

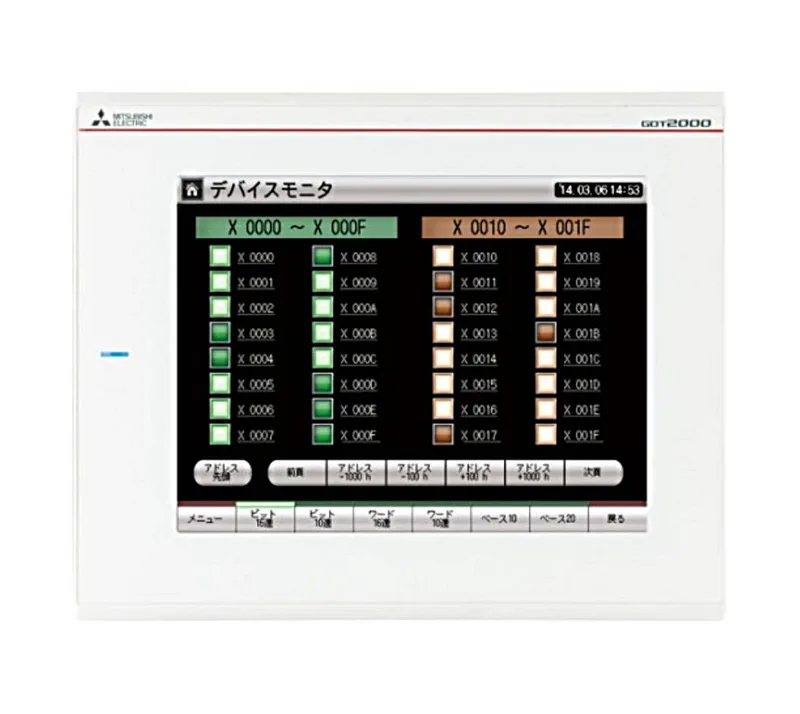

Mitsubishi GT2510-VTWD GT25 HMI, 10.4" VGA, 24 VDC
MPNGT2510-VTWD
Mitsubishi GOT2000 GT25 Series HMI, GT2510-VTWD, 10.4" TFT color VGA display, 24 VDC, 10 W stand-alone.
$1,837.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | T = TFT Color |
Product details
Frequently asked questions
What are the key power ratings for this HMI?
Stand-alone power draw is 10 W, maximum load is 33 W or less. Input power supply is 24 VDC (+25%, -20%). Inrush current is 5 A or less for 20 ms at 25 °C ambient. Permissible instantaneous power failure is within 10 ms.
What is the operating temperature range?
Operating ambient temperature is 0 to 55 °C. Storage temperature is -20 to 60 °C. Operating and storage humidity is 10 to 90% RH, non-condensing.
MPN
GT2510-VTWD
