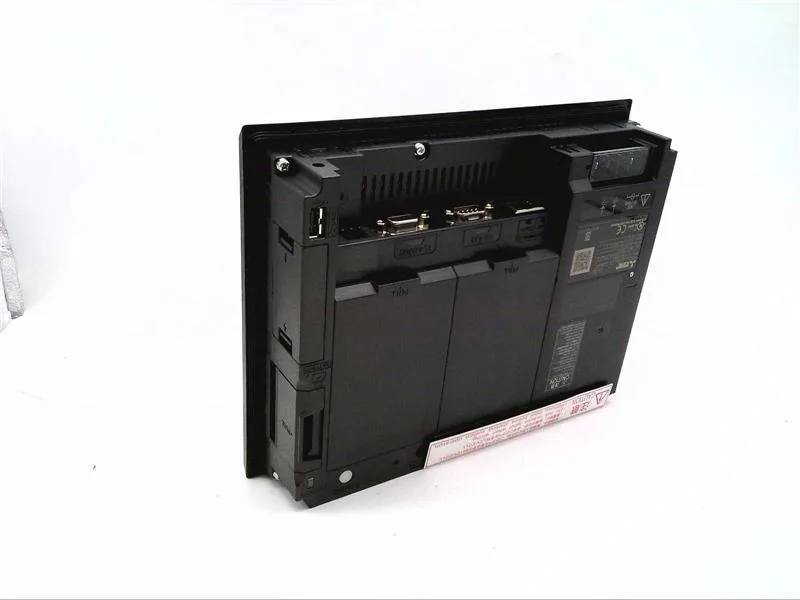

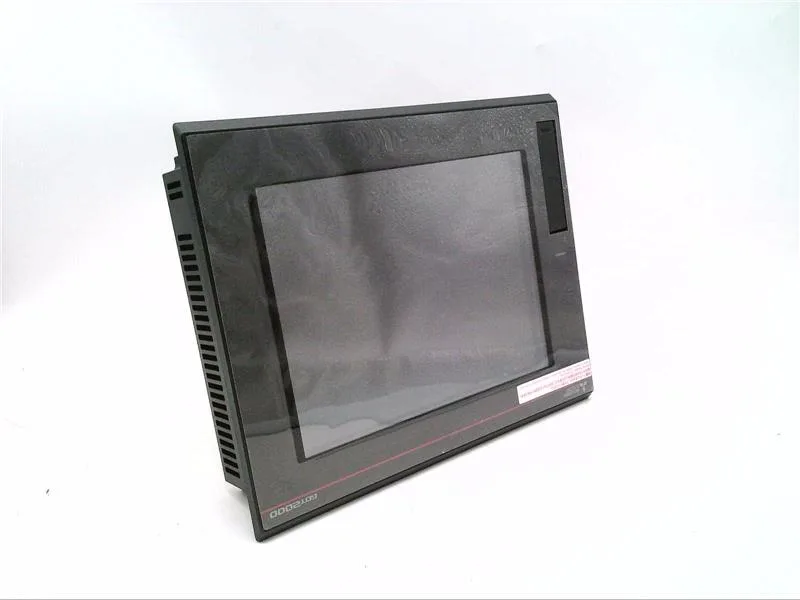

Mitsubishi GT2708-VTBA HMI 8.4in
MPNGT2708-VTBA
Mitsubishi GOT2000 Series Graphic Operation Terminal GT27 8.4" Screen Size
$2,504.00 – $3,369.55Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | T = TFT Color |
| Product type | GT27 Series HMI GOT2000 Series |
| Withstand voltage | 1500VAC for 1 minute between power supply terminal and ground |
| Input power supply voltage | 100 to 240VAC (+10%, -15%) |
| Inrush current | 60A or less (2ms, ambient temperature 25°C, maximum load) |
| Power supply | A = 100 - 240VAC |
| Installation location | Inside control panel |
| Weight excludes mounting brackets | 1.5 Kg |
| Clamp terminal | Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A |
| Applicable wire size | 0.75 to 2 [mm²] |
| Tightening torque (Terminal block’s terminal screws) | 0.5 to 0.8 [N.m] |
| Operating ambient temp. | 0 to 55°C (*2) 0 to 55°C (horizontal installation), 0 to 50°C (vertical installation) |
All specifications
| Parameter | Value |
|---|---|
| Storage ambient temperature | -20°C to 60°C |
| Pollution degree | 2 or less |
| Operating altitude | 2000m (6562 ft) or less |
| Storage ambient humidity | 10 to 90%RH, no condensation |
| Operating ambient humidity | 10 to 90%RH, no condensation 10 to 90%RH, no condensation |
| Frame color | B = Black |
| Shipping weight | 8 Kg |
| External dimensions ( w x h x d ) | 24.1 cm x 19.4 cm x 5.2 cm |
| Resolution | V = VGA (640 x 480) |
| Screen size | 08 = 8.4" |
| Stand alone | 15 W |
| Manufacturer | Mitsubishi Electric |
| Maximum load | 41W or less |
| Cooling method | Self-cooling |
| Noise resistance | Noise voltage 1500Vp-p, noise width 1µs by noise simulator with noise frequency 25 to 60Hz |
| Impact resistance | Compliant with JIS B 3502, IEC 61131-2 (147 m/s² (15G), 3 times each in X, Y and Z directions) |
| Estimated lead time | Usually ships in 1-10 working days. |
| Operating atmosphere | No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage) |
| Overvoltage category | II or less |
| Insulation resistance | 10MO or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
| Stand alone w (Backlight off) | 10 W |
| Permissible instantaneous failure time | Within 20ms (100VAC or more) |
MPN
GT2708-VTBA
