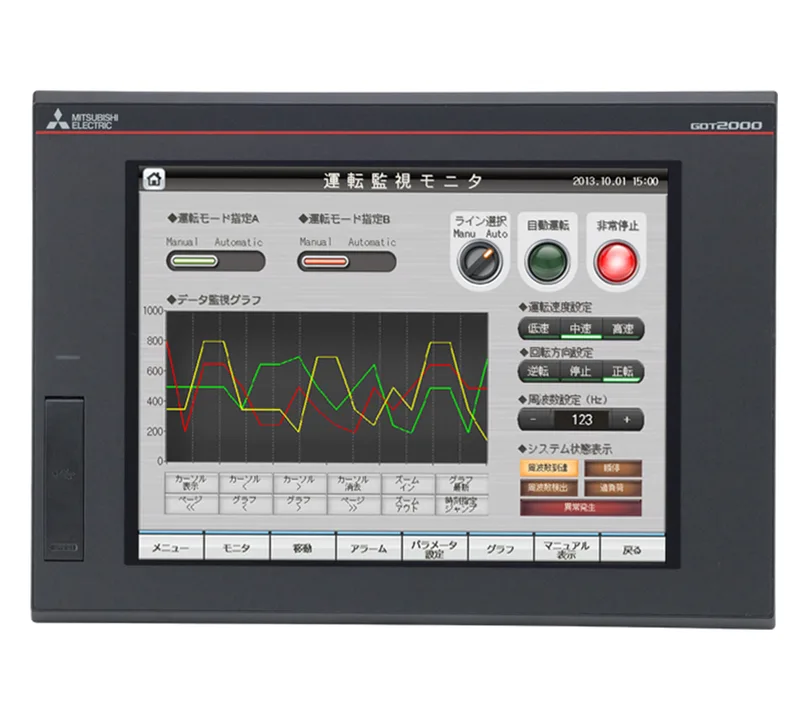

The GT2710-VTBD is a current-production Mitsubishi GOT2000 advanced HMI with a 10.4-inch TFT color display at VGA (640 x 480) resolution, black frame, and 24 VDC input. Multi-touch gesture functions are built in — no separate option card required for pinch/zoom or swipe. Power budget: 15 W standalone, up to 42 W with all loads attached. Inrush current stays under 5 A for 20 ms at 25 °C.
Power and wiring detail
Input power supply voltage is 24 VDC with a tolerance of +25% / -20% (18 to 30 VDC range). Acceptable wire size is 0.75 to 2 mm²; use M3 clamp terminals with ring lugs RAV1.25-3, V2-S3.3, V2-N3A, or FV2-N3A. Tightening torque for the terminal block screws is 0.5 to 0.8 N·m. Permissible instantaneous failure time is within 10 ms — the HMI will ride through brief dips without a reset. Insulation resistance is 10 MΩ or higher at 500 VDC between power terminal and ground.
