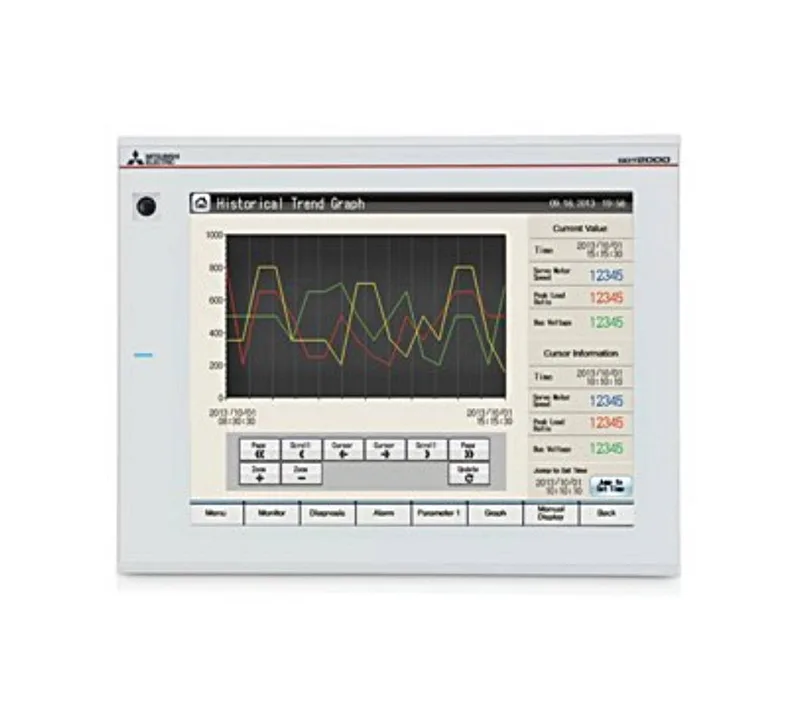

The Mitsubishi GT2710-VTWA is a GOT2000 Series GT27 advanced graphic operation terminal with a 10.4" TFT color display at VGA (640 x 480) resolution, supporting multi-touch gesture functions. It runs on 100-240VAC input, drawing 17 W standalone or up to 41 W with maximum load. The white frame (W suffix) distinguishes it visually from the black-frame variant.
Power and noise immunity
Input supply tolerance is 100–240 VAC +10%/-15%. Inrush current peaks at 60 A for 2 ms at 25 °C under maximum load. Permissible instantaneous power failure is within 20 ms at 100 VAC or above. Withstand voltage tested at 1500 VAC for 1 minute between power terminal and ground; insulation resistance 10 MΩ or higher at 500 VDC. Noise resistance rated to 1500 Vp-p, 1 µs pulse width, 25–60 Hz noise frequency.
