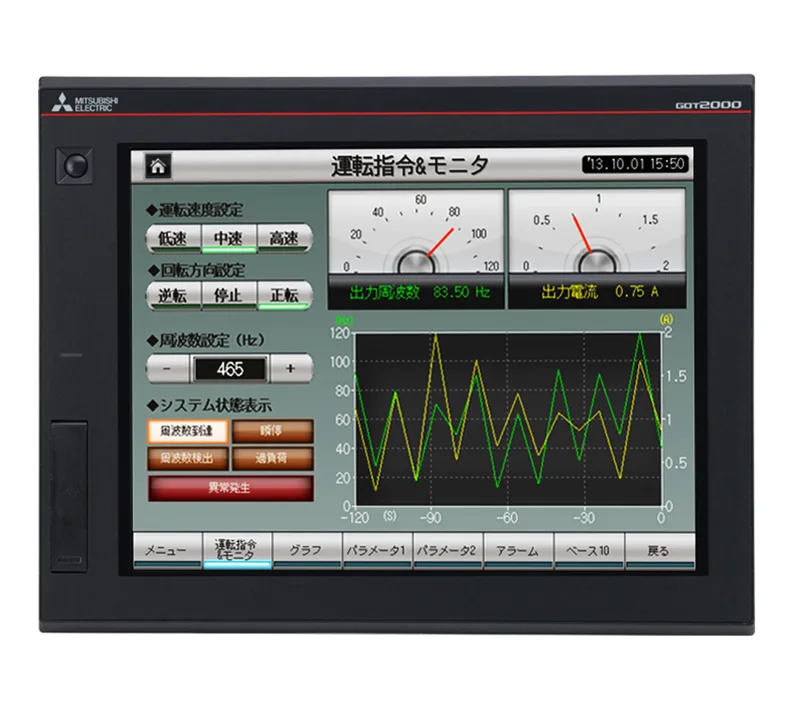

Mitsubishi GT2712-STBA HMI 12.1in
MPNGT2712-STBA
Advanced Model with Multi-Touch Gesture Functions
$2,588.00 – $3,182.11Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | GOT 2000 |
| Battery type | GT 11 - 50 BAT type lithium battery |
| Product type | Advanced Model With Multi-Touch Gesture Functions |
| Mounting | Standard |
| Backlight type | LED (can not be replaced) |
| Display unit type | TFT color liquid crystal |
| Withstand voltage | Power supply terminal all together ? earth ground AC 1500 V 1 minute |
| Input supply voltage | AC 100 to 240 V (+ 10%, - 15%) |
| Over voltage category | II or less |
| Inrush current | 60 A or less (2 ms, ambient temperature 25 ° C., at maximum load) |
| POWER LED | Luminescent color: 2 colors (blue, orange) |
| Input maximum apparent power | 100VA |
All specifications
| Parameter | Value |
|---|---|
| Power consumption at maximum load | 44 W or less |
| Allowable momentary power failure time | Within 20 ms (AC 100 V or more) |
| Input frequency | 50/60 Hz ± 5% |
| Side interface | 1ch for mounting communication unit |
| Extended interface | 1ch for mounting communication unit / option unit |
| Extended auxiliary interface | 1ch for mounting option unit |
| Installation location | In the control panel |
| Weight excludes mounting brackets | 2.4 Kg |
| Mass (excluding mounting hardware) | 2.4 [Kg] |
| Applicable wire size | 0.75 to 2 [mm 2 ] |
| Applicable crimp terminal | Crimp terminals for M3 screw RAV1.25-3, V2 - S3.3, V2 - N3A, FV2 - N3A |
| Applicable tightening torque (terminal block terminal screw) | 0.5 to 0.8 [N . m] |
| Storage ambient temperature | -20 ° C to 60 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Storage ambient humidity | 10 to 90% RH, non condensing |
| Ambient operating humidity | 10 to 90% RH, non condensing |
| Anti-vibration compliance standard | Meets JIS B 3502, IEC 61131-2 |
| When there is continuous vibration | Single amplitude 1.75 mmAcceleration 4.9 m / s 2 |
| When there is intermittent vibration | Partial amplitude 3.5 mm, Number of sweeps X, Y, Z 10 times in each directionAcceleration 9.8 m / s 2 , Number of sweeps X, Y, |
| Color | White |
| Display color | 65536 colors |
| Shipping weight | 10 Kg |
| External dimensions | 316 (W) x 246 (H) x 52 (D) [mm] |
| Panel cut dimensions | 302 (W) x 228 (H) [mm] |
| External dimensions ( w x h x d ) | 31.6 cm x 24.6 cm x 5.2 cm |
| Conforming standard | UL / cUL, CE (EMC), CE (LVD), CE (RoHS), KC, ABS, BV, DNV GL, LR, NK, RINA |
| Ground | Class D grounding (type 3 grounding), connecting to the board when grounding is impossible |
| RS-232 | 1 ch Transmission speed: 115200/57600/38400/19200/9600/4800 bps Connector shape: D sub 9 pins (male) |
| Category | GOT body |
| Ethernet | 1 ch data transfer method: 100 BASE - TX / 10 BASE - T connector shape: RJ - 45 (modular jack) |
| Key size | Minimum 2 X 2 [dots] (per one key) |
| Lifespan | About 5 years (ambient temperature 25 °C) |
| Model name | GT 27 |
| Resolution | SVGA: 800 X 600 [dot] |
| USB | Maximum transfer speed: High-Speed ??480 Mbps 2 ch (front / rear) Connector shape: USB-A |
| Screen size | 12.1 type |
| Size | 246 (W) x 184.5 (H) [mm] |
| Manufacturer | Mitsubishi Electric |
| USB (device) | Maximum transfer rate: High-Speed ??480 Mbps 1 ch (Front) Connector shape: USB Mini-B |
| Backup target | SRAM data, clock data, system status log data |
| Buzzer output | Single tone (pitch and tone length adjustable) |
| Use elevation | 2000 m or less |
| Classification | Large size: 8 to 15 type |
| Cooling method | Self-cooling |
| Main unit body | 19 W |
| SD memory card | 1ch SDHC compatible (up to 32GB) |
| Use atmosphere | There is no oil smoke, corrosive gas, flammable gas, conductive dust is not serious, it is not exposed to direct sunlight (also during storage) |
| Noise tolerance | Noise voltage with 1500 Vp-p, noise width 1 µs, noise frequency with 25 to 60 Hz noise si |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 (15 G), three times in X, Y, Z directions each) |
| Touch panel method | Analog resistor type |
| RS-422/485 (shared) | 1 ch Transmission speed: 115200/57600/38400/19200/9600/4800 bps Connector shape: D sub 9 pins (female) |
| Detected temperature | Temperature difference between human's body temperature and surrounding temperature is 4 ° C or more |
| Protective structure | Front portion: IP 67 F Panel inside: IP 2 X |
| Brightness adjustment | 32 step adjustment |
| Insulation resistance | Power supply terminal all together ? ground DC 500 V at insulation resistance meter 10 MO or more |
| Internal clock accuracy | ± 90 seconds / month (ambient temperature 25 ° C) |
| Lifetime (number of writes) | 100 thousand times |
| User memory memory capacity | Storage memory (ROM): 57 MB Operating memory (RAM): 128 MB |
| Number of display characters | 16 dot Standard font: 50 characters x 37 lines (full-width) 12 dots In standard font: 66 characters x 50 lines (full-width) |
| Human sensor detection distance | 1 [m] |
| Main unit (when backlight is off) | 10 W |
| Number of simultaneous press points | Up to 2 points |
| Maximum number of images that can be registered | 4096 screen |
MPN
GT2712-STBA
