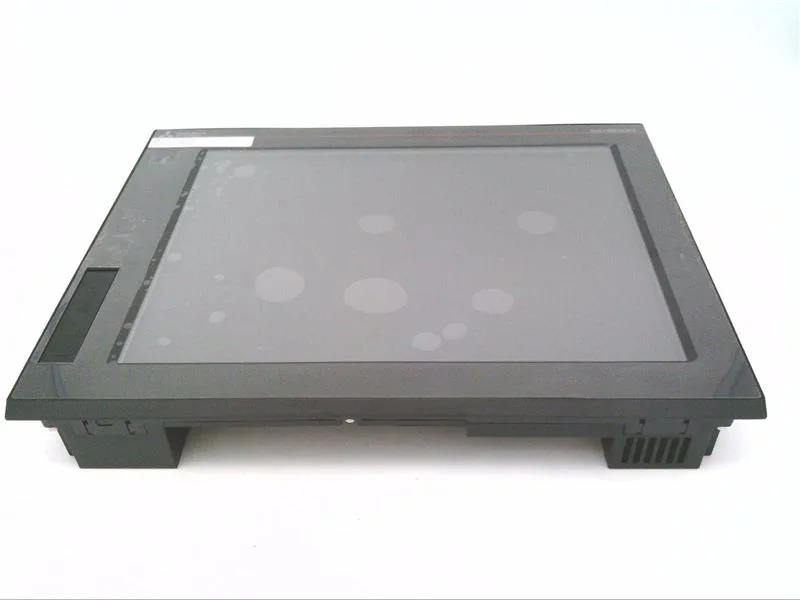

Mitsubishi GOT2000 Series GT27 HMI, 12.1" TFT color LCD, SVGA 800x600, analog resistive touch, 24 VDC, black bezel, 2.4 kg.
| Parameter | Value |
|---|---|
| Display type | TFT color LCD |
| Parameter | Value |
|---|---|
| Weight | 2.4 Kg |
| Parameter | Value |
|---|---|
| Panel color | Black |
| Screen size | 12.1" |
| Product type | GT27 Series HMI GOT2000 Series |
| Touch panel type | Analog resistive film |
| Resolution | SVGA: 800 × 600 dots |
| External dimensions | 316(12.44) (W) × 246(9.69) (H) × 52(2.05) (D) mm(inch) |
| Power supply voltage | 24 V DC (+25%, –20%) |
| Display size (w x h) | 246(9.69) (W) × 184.5(7.26) (H) mm(inch) |
| Panel cutout (w x h) | 302(11.89) (W) × 228(8.98) (H) mm(inch) |
The GT2712-STBD: Panel cutout is 302 × 228 mm (11.89 × 8.98 in). The 52 mm depth behind the panel leaves room for cabling and the backlight driver. Mounting clamps are included; torque to the specified value in the installation manual. The 24 VDC supply must be capable of the inrush at power-up — check the GOT2000 hardware manual for the peak draw.
The unit weight is 2.4 kg.
The panel cutout required is 302 × 228 mm (11.89 × 8.98 in).
It operates on 24 VDC with a tolerance of +25% / –20%.
